Summary of Contents for Articulateshade Aspen

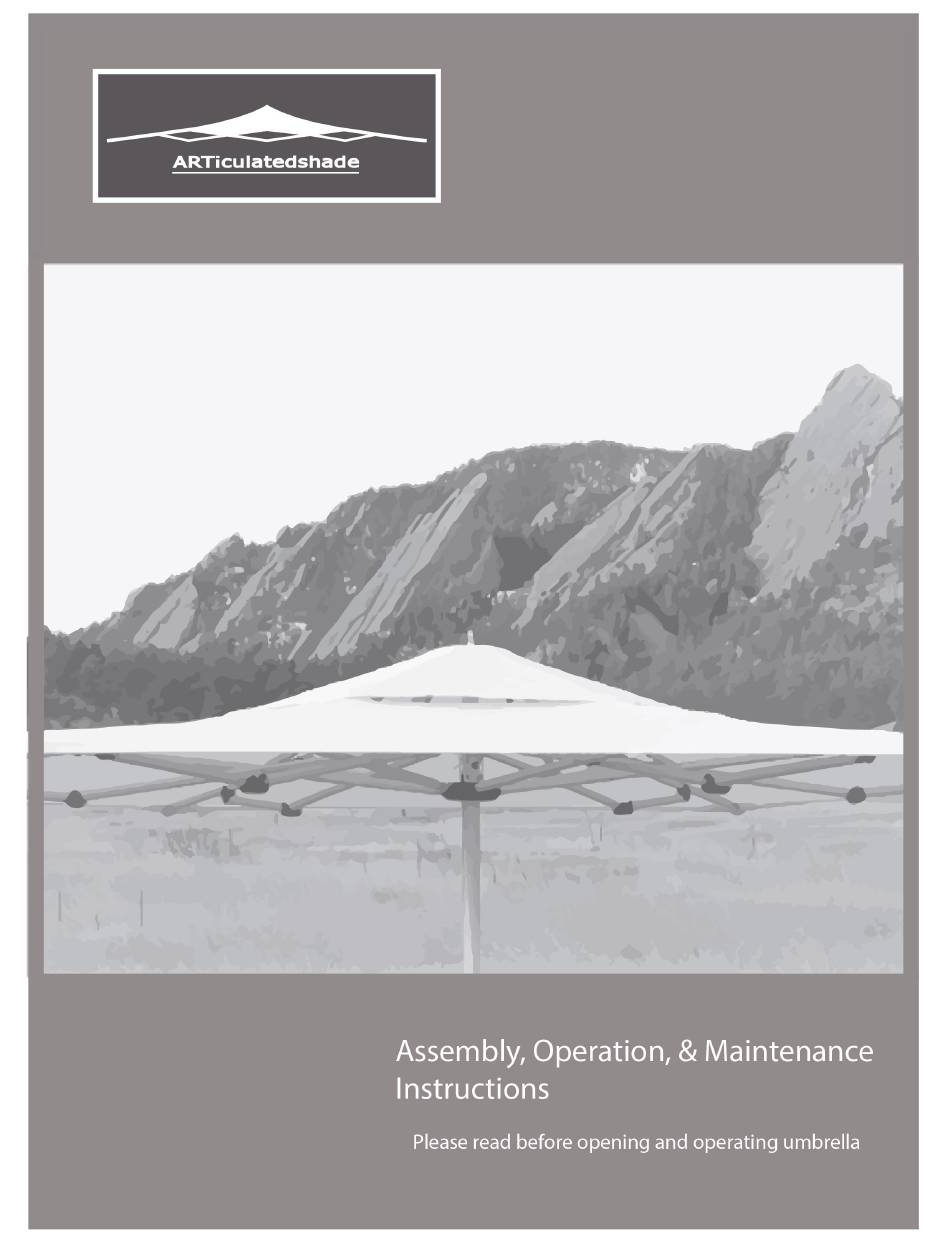

- Page 1 Aspen...
- Page 2 Assembly Instructions Components ARTiculatedshade Included Items for Assembly (A) - Upper Umbrella Assembly (Includes Upper Pole) (B) - Lower Pole Assembly (C) - (2) 1/4” - 20 x 1.75” Socket Head Cap Screws (D) - (2) 1/4” - 20 Socket Insert Nuts (E) - 3/16”...
- Page 3 Assembly Instructions Secure to Base ARTiculatedshade Lower Pole Assembly (B) Socket Nut 2” Diameter Opening Base Casing (F) Tightening Knobs (G) 2. Securing to a Base i. Insert lower pole assembly (B) into base casing (F). ii. If placing umbrella in table, ensure table opening is clear and ground base is properly situated below.
- Page 4 Assembly Instructions Secure Splice ARTiculatedshade Upper Pole & Umbrella Assembly (A) Socket Screws (C) Jaw Cleats Socket Nuts (D) Lower Pole Assembly (B) 3. Securing the Splice i. Ensure lower pole section (B) is securely anchored in base. (See step 2) ii.
- Page 5 Operating Instructions Opening & Closing ARTiculatedshade Jaw Cleats Release cord by pulling up and out of jaws of cleat Caution: Hang on tight to cord at all times while opening or closing umbrella to avoid Anchor cord by sudden and unexpected pulling down and closing of frame, which into jaws of cleat...
- Page 6 Operating Instructions Lock Pin & Canopy Tie ARTiculatedshade 5a. Securing the Optional Pin i. Once the umbrella is fully open, insert the hanging lock pin (d) into the provided hole. ii. To close, hold tight to cord and pull forcefully on ring, removing lock pin (d) from column.
-
Page 7: Care And Maintenance
Care & Maintenance ARTiculatedshade Your satisfaction is our number one priority. ARTiculatedshade umbrellas are designed to be structurally sound, deliberately functional, and aesthetically unique. We source all materials from US companies focusing on durability and weather resistance. Proper use and care is critical to prolonging the longevity and functionality of all ARTiculatedshade products. -
Page 8: Warranty
Warranty ARTiculatedshade Limited Warranty; Warranty Period. Subject to the exclusions and other limitations set forth below, ARTiculatedshade, LLC. (“We” or “Us”) warrants to the original end-user (“You”) that (a) the canopy (the “Canopy”) of the ARTiculatedshade, LLC Compact Patio Umbrella manufactured by Us will be free from material defects in both material and workmanship (the “Canopy Limited Warranty”) for a period of five years after Your purchase of the Canopy (the “Canopy Warranty Period”) and (b) the frame (including the mast, ribs, plastic hubs and connectors, pulleys, cleats and fasteners) (the “Frame”... - Page 9 Notes ARTiculatedshade Warning: Wind can cause the umbrella to fall over or fly away, resulting in property damage and personal injury. Always secure the umbrella to a base having enough weight and resistance to anchor the umbrella. Always close the umbrella in moderate to high winds and when not attended.
