ECOS-D
Digital Simulcast Technology
Radio Base Station Guide
Installation, configuration and maintenance
2
A
T NETWORKS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOS-D and is the answer not in the manual?

Questions and answers

Summary of Contents for Selex ES ECOS-D

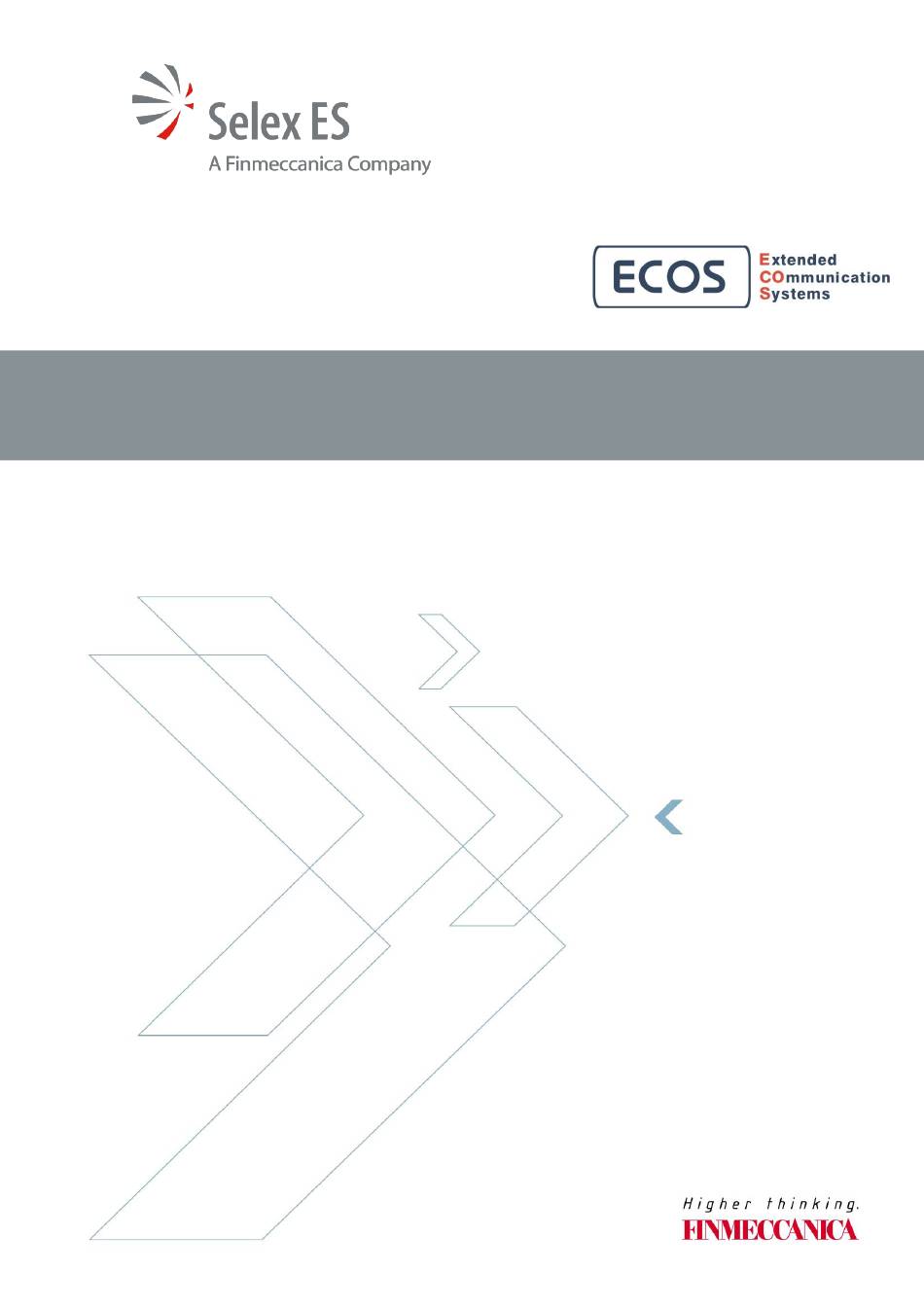

  • Page 1 ECOS-D Digital Simulcast Technology Radio Base Station Guide Installation, configuration and maintenance T NETWORKS...
  • Page 2 Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing. Selex ES S.p.A. reserves the right to alter without notice the specification, design or conditions of supply of any product or service.

  • Page 3: Table Of Contents

    Line interfaces ............................26 6.4.1 4W and 4W+E/M Link ........................26 6.4.2 E1 coax Link ..........................33 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 4 Local Maintenance Interface ......................65 Local Test AF Interface ........................67 Remote Maintenance Interface ......................69 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 5: Scope

    Information contained in this document are valid only for the model named ECOSD RBS4000K U5110DA0C14W0E100S1V1G2, whose certification number is FCC ID: X5YF767DHDE-IP and IC: 12512A-F767DHDEIP, of the ECOS-D family of products, optional cards and ancillaries included. The technicians must use only the part of information related to the RBS really shipped.
  • Page 6 Table 1: First aid Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 7: Product Safety And Rf Exposure Compliance

    (Figure 2) around the wrist ground connected through coiled cord (Figure 3) to the appropriate point on the RBS (Figure 4) Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 8: Encoding Criteria For All Derived Products

    W = D  Configuration with RX Diversity Acde Power Supply c = 0 - 12Vdc power supply does not provide Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 9 CORE module (Master) r = 0 - indicates no GPS receivers piggy-back Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 10: Technical/Environmental Specification

    Power supply: 48 Vdc (35  75 Vdc - galvanically insulated) Input voltage Current drain Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 11 A minimum of ½ RU (4,4 cm – 0,8 inches) must be left among devices installed in the same cabinet. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 12: Device Assembly And Composition

    5. Device Assembly and composition Front overview. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 13 Rear overview. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 14: Position Of The Connectors And Switches

    RF TX antenna 48 Vdc input I/O port GPS antenna RF RX antenna Main Serial port Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 15: Installation

    To plan the installation, please pay particular attention to environmental condition at the site; ventilation requirements, grounding and lightning protection as described in this manual. _________________________________________________________________________ Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 16: Unpack

    PL, codes, color code, etc.) 6.1.2 Unpack Inspect the equipment for damage immediately after unpacking and make a report of the extent of any damage to the transportation company and to Selex ES S.p.A. The following items are packed together: ...
  • Page 17 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 18: Electrical Wiring

    Failure to provide proper lightning protection may result in permanent damage to the radio equipment. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 19 Note. Resistance between ground terminal and other metallic parts of the device verified applying between the two sides a current of 32 A for 4 minutes. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 20: Power Supplies Interfaces

    Hereafter the power cable supplied with the 48 Vdc powered device is shown. The cable is provided with D-SUB 3W3 female connector and a 30A fuse. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 21 Electrical characteristics of the fuses are described in the table below. Ampere rating (A) Voltage rating (V) Nominal Melting (I Sec.) 26.46 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 22 Electrical characteristics of the fuses are described in the table below. Ampere rating (A) Voltage rating (V) Nominal Melting (I Sec.) 97.82 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 23: Radio Interfaces

    TX Antenna N male connector 50 ohm coaxial cable with double shield Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 24: Rx N Type Connector

    Type of cable/conductor the cable Antenna N male connector 50 ohm coaxial cable with double shield Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 25: Diversity Receivers Interfaces - Dual Bnc Type Connector

    Type of cable/conductor the cable Antenna BNC male connector 50 ohm coaxial cable with double shield Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 26: Line Interfaces

    4W or 4W+E/M Link port RJ45 male connector AWG 24 Category 5 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 27 E (+) Ear Signal + Ear Signal E (-) Ear Signal - not connected Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 28 M−lead to signal a seizure. The RBS expects to see active conditions on the E−lead and signal active to the remote device on M−lead. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 29 M−lead to signal a seizure. The RBS expects to see active conditions on the E−lead and signal active to the remote device on M−lead. +48v RBS side Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 30 4 (four) different copper pairs: two of them are Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 31 10). The mask is shown below. 1.50 0.75 0.25 500 600 1000 2600 2800 Frequency (f) T1511890-02 Insertion loss: Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 32 E/M time response: The response time of E/M criteria must be less than 100 msec. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 33: E1 Coax Link

    Where, in the equipment described in this document, a E1 interface towards a common backbone is envisaged, in the followings the backbone features to be assured in order to make the ECOS-D simulcast networks to work properly are described: ...
  • Page 34 E1 links must support CAS signaling in TS16  E1 links must transparently transport channel Sa-4 in TS0 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 35: Af In/Out

    Mouth (M-) Ear (E+) AF_OUT (-) AF_OUT (+) Ear (E-) AF_IN (-) AF_IN (+) Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 36 The RBS expect to see active conditions on the E−lead and signal active to the remote device on M−lead. RBS side Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 37 M−lead to signal a seizure. The RBS expect to see active conditions on the E−lead and signal active to the remote device on M−lead. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 38 Type II Type V proprietary (Unbalanced) (Balanced) (Unbalanced) (Balanced) Back card deep switch positioning Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 39: Lan Interface

    TX+ Transmit Data + not used not used Transmit Data - not used not used Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 40 To connect the RBS directly to an Ethernet host use a cross cable (EIA/TIA 568A on one end and EIA/TIA 568B on the other end). Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 41: Serial Interface

    Male type D connector with 9 9 conductor cable with double pins and shielded holder brass sheath type interconductor Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 42 Data Set Ready (to DTE) Ready To Send (from DTE) Clear To Send (to DTE) not used Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 43: Auxiliary Serial Interface

    Pinout of the three tipes of serial interface are described below. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 44 Data from DTE to DCE not used RX - Data from DCE to DTE Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 45 Ground not used RTX - Data not used not used Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 46: Digital Input/Output Interface

    RF power alarm (*) not used not used not used not used not used not used Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 47  Output 4: RF power alarm. When the PA transmitting power is 3 dB below the right power level the output is closed. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 48: Local Microphone Interface

    Section of each wire ≤ Microphone Male type high density connector with 15 pins sq.mm. (AWG 18) Microphone Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 49 Push To Talk input to RBS not used DGND Digital Ground not used (soldering side view) Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 50: Configuration

    8. Maintenance 8.1 Module features, alarms and troubleshooting 8.1.1 CORE module - CORE The CORE module, for its versatility and potentiality, is the core of ECOS-D RBS. This module is equipped with devices for numerical computation (DSP, FPGA) and control (microprocessor).
  • Page 51 0 ÷ 9 In menu mode use them to insert the value of parameters where required Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 52 2. GPS FIX M GPS S GPS 3. Sync. Log List Cancel 7. Diagnostic 1. Monitor Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 53: Lines Interface Module - Lif

    BUS µP Green Upload Ongoing download code Upload Fail Download code KO Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 54: Digital Interface Module - Dif

    E1/T1 #3 link enabled and RAI or RAI-AS alarm is present Green E1/T1 4 E1/T1 #4 link enabled and correctly operating Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 55: Double Radio Receiver Module - Rrx

    The front panel is provided with bi-color leds to help in troubleshooting the system. The table below describes the meaning of the leds: Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 56 Bad message received Green Upload Firmware upload in progress Upload fail Firmware upload failed Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 57: Switch Module - Switch

    The Switch module realizes a "solid state" switch (MOSFET) device for the distribution of the power necessary for the proper working of all the modules of the ECOS-D RBS. In particular its primary task is to distribute the 13.2 Vdc nominal voltage (Master voltage) and 7 Vdc nominal voltage (Slave voltage).

  • Page 58: Dc/Dc Module - Dc/Dc

    8.1.6 DC/DC module – DC/DC The DC/DC module is a continue power voltage converter from an external power source (range Vin= 35 ÷ 75 Vdc) to the internal power level of ECOS-D devices. The converter, other than the power voltage conversion, is able to...
  • Page 59 Bad message received Green Upload Firmware upload in progress Upload fail Firmware upload failed Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 60: Power Amplifier Module - Pa

    On Air and VSWR level is greater than FW configured threshold Green Control bus busy Activity on the control bus Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 61 Bad message received blink Green Upload Firmware upload in progress Upload fail Firmware upload failed Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 62: Power Modules Maintenance Precaution

     unplug the 48Vdc D-SUB 3W3 connector 48 VDC input  Remove the modules as described in section 8.3. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 63: Module Removal

    2 – From the front side of the RBS using the handle marked in green pull the module out. Module handles Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 64: Back Card Removal

    2 – From the rear side of the RBS using the same knobs pull the back card out. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 65: Local Maintenance Interface

    To perform local Maintenance and local configuration of the RBS, connect a PC to this connector using the appropriate LAN adapter. Maintenance LAN Adapter Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 66 TX+ Transmit Data + not used not used Transmit Data - not used not used Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 67: Local Test Af Interface

    Section of each wire ≤ Microphone Male type high density connector with 15 pins sq.mm. (AWG 18) Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 68 Push To Talk input to RBS not used DGND Digital Ground not used (soldering side view) Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...

  • Page 69: Remote Maintenance Interface

    For more information about the remote maintenance procedure see the Network Management System (NMS) Manual, where supplied. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 70 Intentionally left blank Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing...
  • Page 71 Selex ES S.p.A. in writing. Selex ES S.p.A. reserves the right to alter without notice the specification, design or conditions of supply of any product or service. Selex ES logo is a trademark of Selex ES S.p.A.
