Summary of Contents for systeco Tornado ACS

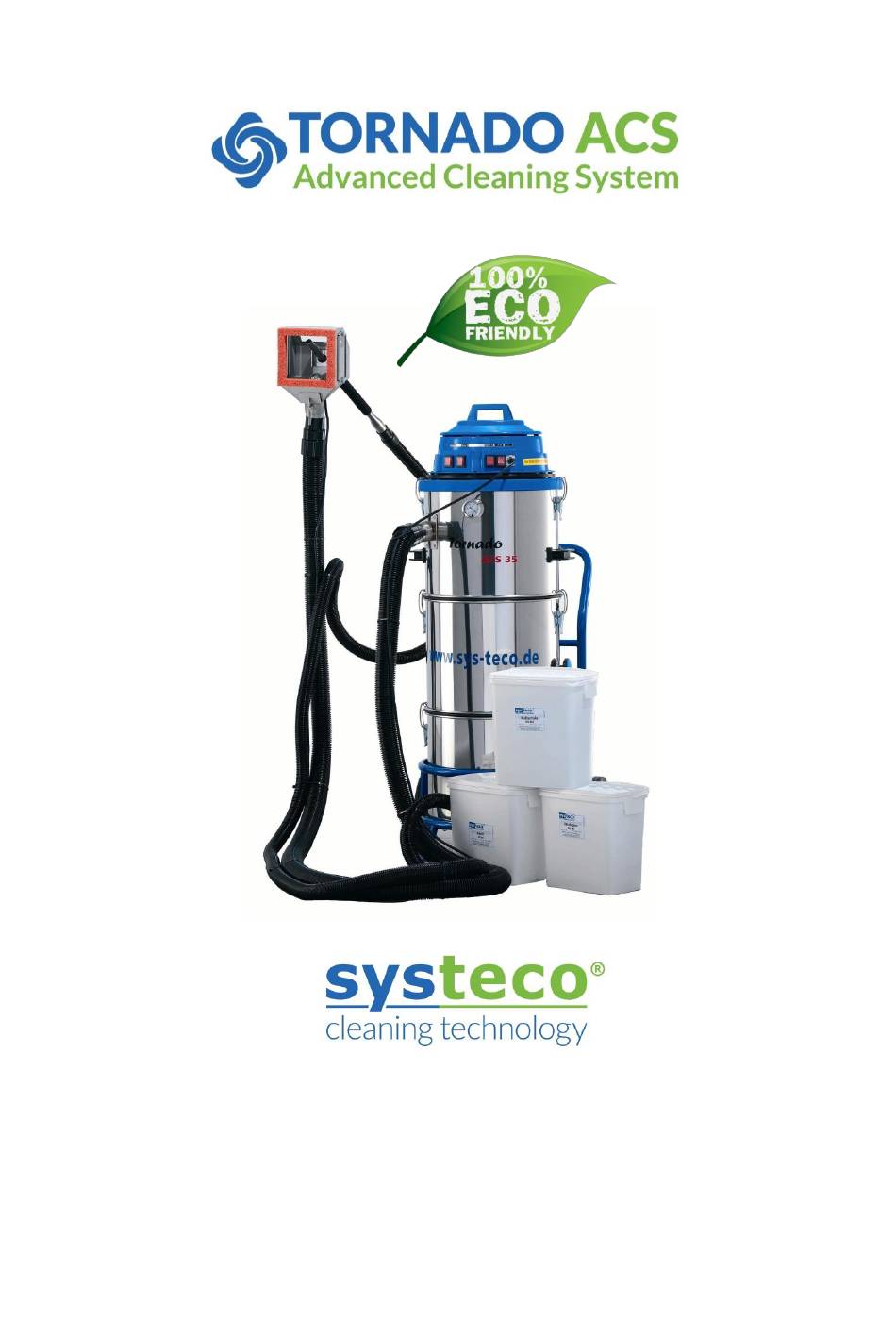

- Page 1 OPERATING INSTRUCTIONS systeco Vertriebs GmbH Herbartstraße 28 D-14057 Berlin fon +49 30 3270-2157 fax +49 30 3270-2134 info@sys-teco.de www.sys-teco.com...
- Page 2 The operating instructions describe the functioning, application and handling of the Tornado ACS and give advice for the selection of the appropriate blast- ing material as well as it helps in problematic cases.
-
Page 3: Table Of Contents
Table of contents Intended application Taking charge of the machine Structure of the Tornado ACS and functional principle Start-up procedure and functioning Filling with blasting media Preparing the machine Emptying of used blasting media Important advices for maintenance and operating instructions... -
Page 4: Intended Application
Possible applications: Industrial cleaning, craft of painting or lacquering, housing coopera- tive, repair and maintenance of cars, the building industry. The Tornado ACS is used for cleaning, removal of layers and lacquer, de-rusting, roughening up and restoring of surfac- es. -
Page 5: Structure Of The Tornado Acs And Functional Principle
There, it is separated in the fine dust filter (11) by the cyclone principle, and falls into the middle container of the Tornado ACS. By opening the flap (12) the gran- ules fall through the... -
Page 6: Startup Procedure And Functioning
11. When moving the jet process automatically discontinuous 12. Whole jet plast in the middle container, switch off suction (see also preparing the machine, page 7) 13. Work is finished, jet hood with jet lance file, Tornado ACS and lighting switch off... -
Page 7: Preparing The Machine
By switching on the negative pressure generator (industrial suction-head) a negative pres- sure of approx. 150 - 170 mbar is produced in the jet cap. The jet hood itself is set on the working surface and adheres to due to the negative pressure. By inserting the jet lance the cycle is closed. -
Page 8: Emptying Of Used Blasting Media
Keep blasting media always dry and in a closed box. Remove possibly escaped blast media of the floor (sweep or suck up). Please consider local conditions for the disposal of colour residues or granulate material. Cleaning video TORNADO ACS... -
Page 9: Important Advices For Maintenance And Operating Instructions
Important advices for maintenance and operating instructions Before turning on the Tornado, close flap. Clean or change filter cartridge 1.3 (suction head 1.1) after approx. 4h. Remove worn out granulate and dirt residues from collection pan 1.4. ... -
Page 10: Change Of Dosage
Change of dosage Before shifting the dosage, funnel 2 has to be empty! Dosage 3 is located in the lower container 2. Solve both metal clamps in the lower container 3. The rest of the machine can be lifted 4. Take filter 1 out, dosage accessible 5. -
Page 11: Application Of Jet Hood
Application of jet hood 1. Put the jet hood (6) on the surface to be worked on (according to the picture) 2. Due to the negative pressure the jet cap adheres to it immediately 3. Insert jet lance (7) and bring it close to the surface 4. -
Page 12: Examples For Practical Use
Examples for practical use In the following examples some possible applications are described. The selection of granulate as well as the setting of the dosing. These information´s are guidelines for the optimum use. Application on roughcast All finery infiltrated with colour can be worked on without problems. - Page 13 Basically: The more uneven the surface the more difficult it is to clean without damaging the colour. The Tornado ACS cleans selective rust stains on walls quickly and carefully. granulate jet glass SG 150...
- Page 14 Here you can also use rough granulate. Depending on the granulate, the surface structure of the material changes. To remove color markings, or to accomplish a metal surface the Tornado ACS is exactly the right solution. granulate asilit AS 250...
- Page 15 Polished surfaces always must be treated with nutshell granulate. With the use of glass granules or ASILIT the surfaces turn dull. For this very delicate surface, the Tornado ACS cleaning technology is ideally suited. granulate jet glass SG 150 (light subsurface)
- Page 16 Application on wood The cleaning of half-timbered houses is possible as well as the use on wood. On clinker and on wood fine blast media is used. Therefore the Tornado ACS suits ideally for both surfaces. granulate jet glass SG 150...
-
Page 17: Possible Reasons For Failures
Possible reasons for failures malfunctioning possible reason ● electricity supply (230 V or 110 V) is not correct suction device does not start up filter at the suction device is very dirty substantial deterioration of blasting jet material is extensively worn out time ... -
Page 18: Eu-Declaration Of Conformity
EU-Declaration of Conformity In compliance with EG-directive for machines 2006/42//EG systeco GmbH Herbartstraße 28 D - 14057 Berlin We hereby declare that the machine / system being produced Type: Jet machine Model: USC 04 Designation: TORNADO matches in this version with the product being examined on conformity by TÜV Rhein- land/Berlin-Brandenburg.
