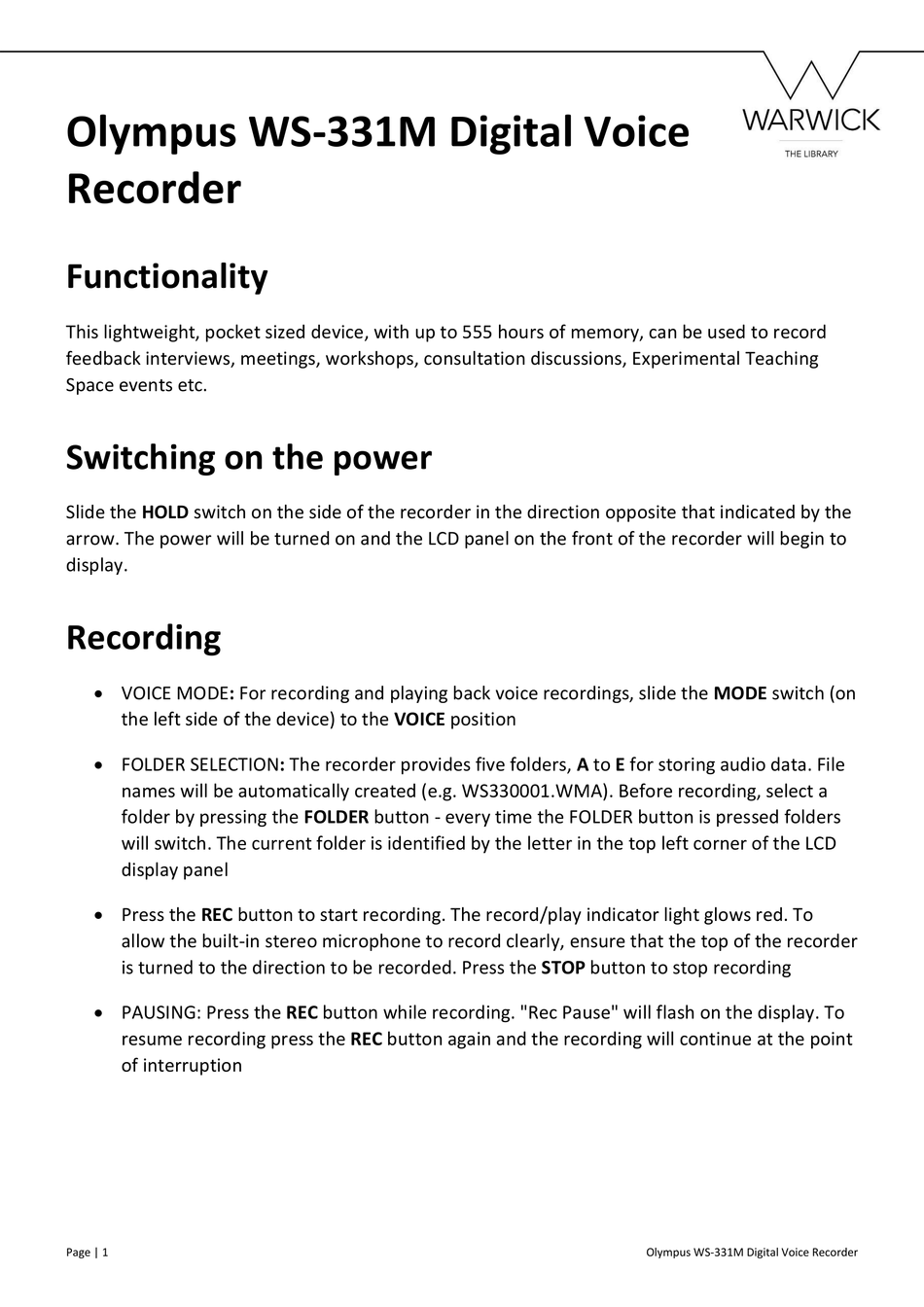

Olympus WS-331M Digital Voice
Recorder

Functionality

This lightweight, pocket sized device, with up to 555 hours of memory, can be used to record
feedback interviews, meetings, workshops, consultation discussions, Experimental Teaching
Space events etc.

Switching on the power

Slide the HOLD switch on the side of the recorder in the direction opposite that indicated by the
arrow. The power will be turned on and the LCD panel on the front of the recorder will begin to
display.

Recording

 VOICE MODE: For recording and playing back voice recordings, slide the MODE switch (on
the left side of the device) to the VOICE position
 FOLDER SELECTION: The recorder provides five folders, A to E for storing audio data. File
names will be automatically created (e.g. WS330001.WMA). Before recording, select a
folder by pressing the FOLDER button - every time the FOLDER button is pressed folders
will switch. The current folder is identified by the letter in the top left corner of the LCD
display panel
 Press the REC button to start recording. The record/play indicator light glows red. To
allow the built-in stereo microphone to record clearly, ensure that the top of the recorder
is turned to the direction to be recorded. Press the STOP button to stop recording
 PAUSING: Press the REC button while recording. "Rec Pause" will flash on the display. To
resume recording press the REC button again and the recording will continue at the point
of interruption
Page | 1
Olympus WS-331M Digital Voice Recorder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-331M and is the answer not in the manual?

Questions and answers

Related Manuals for Olympus WS-331M

Summary of Contents for Olympus WS-331M

  • Page 1  PAUSING: Press the REC button while recording. "Rec Pause" will flash on the display. To resume recording press the REC button again and the recording will continue at the point of interruption Page | 1 Olympus WS-331M Digital Voice Recorder...
  • Page 2  Launch My Computer - the recorder will appear as a removable disk  On a Mac, once the recorder is connected to a USB port it will appear as a desktop icon called “WS_331M” Page | 2 Olympus WS-331M Digital Voice Recorder...

  • Page 3: Erasing Files

     Press the + button to choose "Erase"  Press the OK button. The display changes to "File Erase!" and erasing will start. "Erase Done" is displayed when the file is erased. File numbers will be reassigned automatically Page | 3 Olympus WS-331M Digital Voice Recorder...

  • Page 4: Erase All Files From A Folder

    Done" is displayed when the files are erased Additional functions The WS-331M voice recorder has many additional functions, most of which we will never need to make use of in the Teaching Grid. One function that will be of use, particularly when there is background noise in the Teaching Grid, is the Low Cut Filter function which minimises low- frequency sounds (air conditioners, projectors etc) and records voices more clearly.
