Summary of Contents for freemate DA-575
-

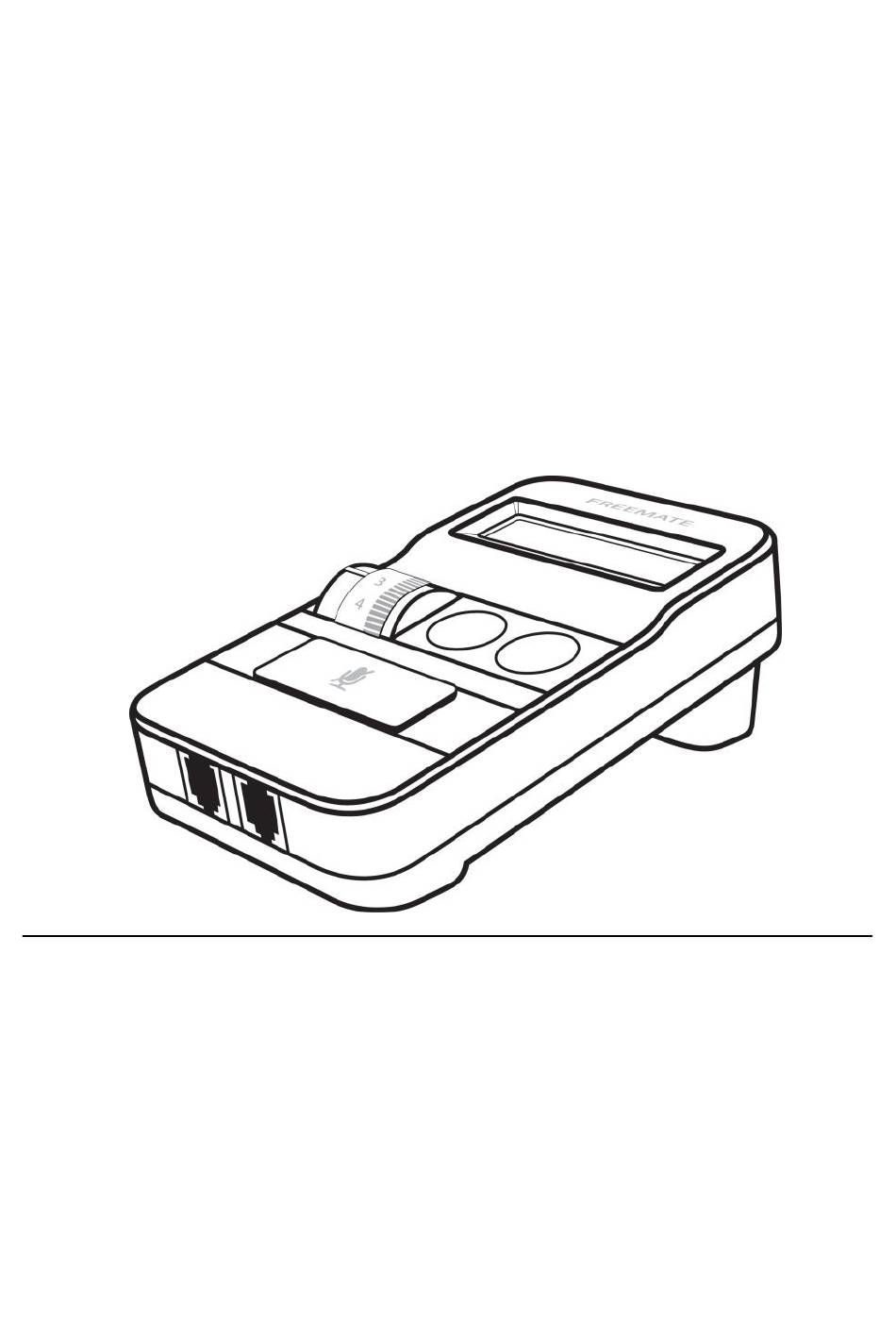

Page 1: User Manual
User Manual (Digital Headset Amplifier) DA-575... -
Page 2: Product Overview
1. PRODUCT overview Telephone cord USB cable Speaker volume control Mute button Additional Headset (Supervisor port) QD cable (Headset) Headset/ Handset Selection Switch Telephone Compatibility Switch Microphone Volume Headset Compatibility Switch U : Universal P: Plantronics... - Page 3 Tone Control (Treble/Bass) Microphone Mute Automatic Level Control switch (Supervisor)
-
Page 4: Connect To Power
CONNECT TO POWER Connection to a PC is necessary to power VoicePro 575, Plug the USB cable into the mini USB port on VoicePro 575, and connect the other end of the USB cable into the USB port on the PC. The ‘PC/TEL’ and mute indicator will be blinking twice. - Page 5 5. OPERATING GIUDE 5.1 Switch headset/handset selection switch to “Headset”.
- Page 6 5.2 Adjust the telephone compatibility switch to ‘1’ or ‘2’. The dial tone should be heard on the headset. 5.3 Make a test call to a colleague to test your speaking volume. 5.4 Adjust the microphone volume control on the VoicePro 575. 5.5 Adjust the speaker volume on the VoicePro 575 to adjust the speaker volume...
- Page 7 5.6 Press the mute button to mute headset microphone. The mute indicator will be ON. To Un-mute the headset microphone, press the mute button again. Indicator will be OFF. 5.7 Connect an additional Headset An additional headset can be connected to the supervisor port on the unit. It has the same function as the default headset.
