Ethernet Extender
VC-350

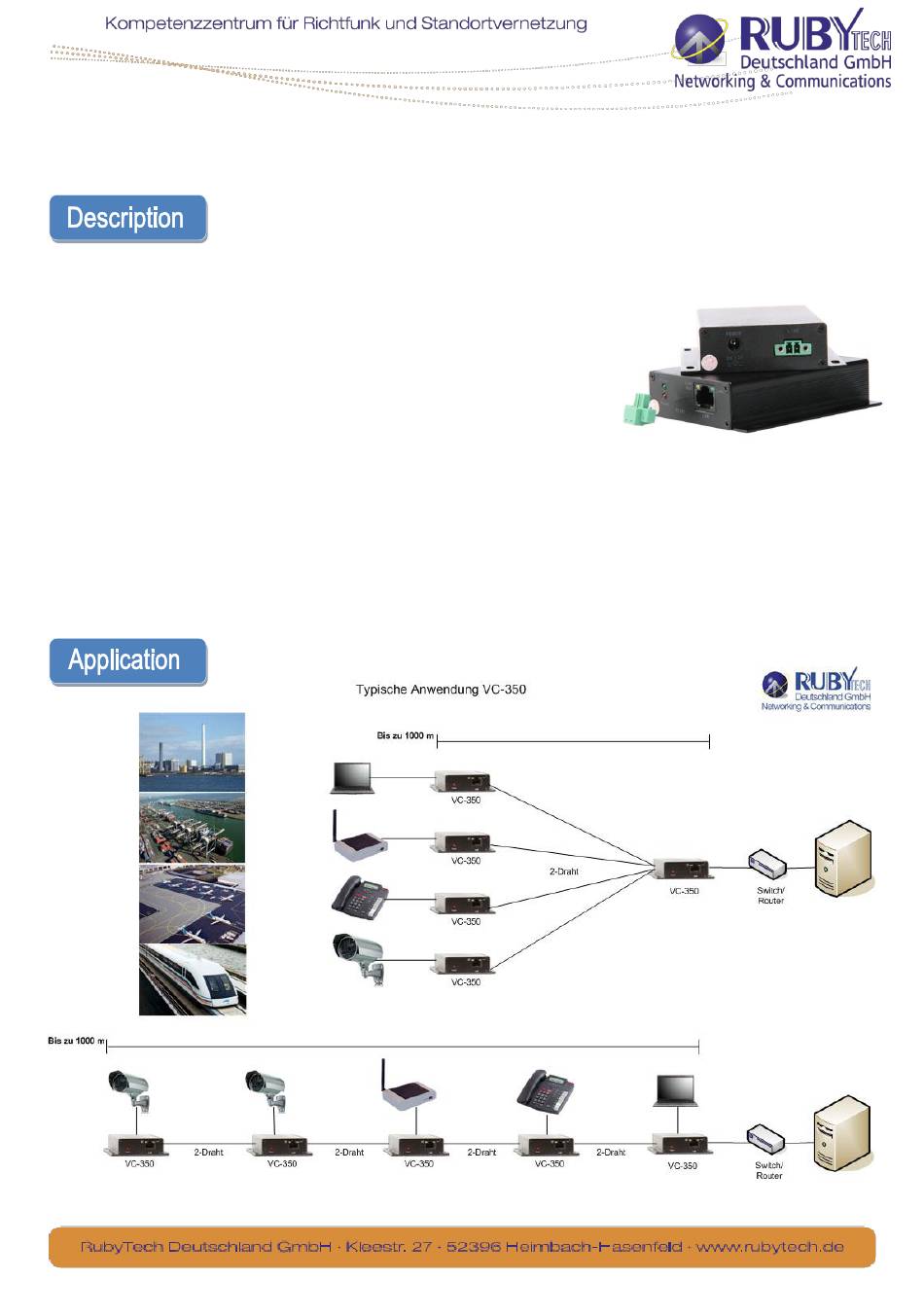

VC-350 Ethernet Extender is a single channel high-speed Ethernet transmission device.
It can transmit Ethernet signal over any 2-wire cable such as coax cable,
Cat5, telephone line, power line and so on.
The max. transmission distance can reach 1.000 meters and the max physical
bandwidth can reach 200Mbps.
This device contains the Master and Slave unit, which supports point-to-point and point-to-multipoint network
transmission. Now it has a 2P terminals for your choices to connect 2-wire cables. It can greatly simplify the project
cabling, apply to expand network system and transmit signals for long distance.
Seite 1 von 7
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Ruby Tech VC-350
- Page 1 Ethernet Extender VC-350 VC-350 Ethernet Extender is a single channel high-speed Ethernet transmission device. It can transmit Ethernet signal over any 2-wire cable such as coax cable, Cat5, telephone line, power line and so on. The max. transmission distance can reach 1.000 meters and the max physical bandwidth can reach 200Mbps.
- Page 2 ◆ Max transmission distance can reach 1.000m (RVS 2×1mm ◆ Max physical bandwidth can reach 200Mbps ◆ Support power over cable technology ◆ Transparent transmission, no adjustment and no need to change the upper software ◆ Low power consumption, communication channel dynamic adjustment and high performance error correction coding technology elephone Line: Category 3 or above Power Line: RVV, RVS, RVVP, RVB 2×0.5mm2 UTP Cable: Category 5 or above...
- Page 3 Note: Dimension error value ±0.5 mm Category Description Available Voltage Range 12VDC Power ≤2W / PC Power Consumption Standard Compliance IEEE1901, IEEE802.3 Up down Agreement CSMA/CA Transmission / Rate Physical Speed 200Mbps Encryption Way 128-bit AES Encryption Dimension (L × W × H) 98mm×86,5mm×25mm Physical Characteristic Material...
- Page 4 Tip: VC-350 Ethernet Extender signal belongs to high frequency radio frequency signal. Considering the cable loss, please choose better quality connectors. Seite 4 von 7...
- Page 5 Figure 1 - Typical Installation Most installations that use the VC-350 involve the replacement of old analog equipment with new IP devices, while reusing the installed wire. In generally, there are two connections types. One is typical connection (Figure 1 above) and the other is Bus-architecture and Daisy Chain Connection (Figure 2 and 3 Below).
- Page 6 Figure 3 - Daisy Chain Installation VC-350 can support Power and Ethernet simultaneous transmission. When Ethernet signal transmission in power line, to avoid power line interference, you should install Power Filter VC-3-POWFI on each VC-350 unit, installation diagram as below:...
- Page 7 When you use VC-350, please follow the below tips as a reference, in order to reduce the fault in the process of using and the inspection work. 1. The device supports auto-negotiation allocation master and slave. It also can be set master-slave side and grouped by software.
