Tiresonic FW-301 Operating Manual

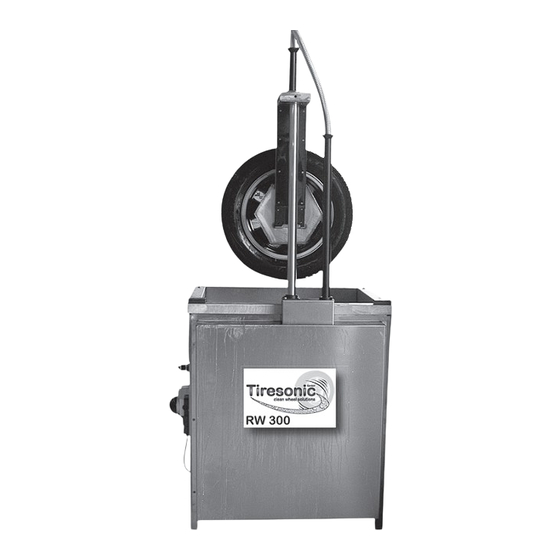

Wheel washing machine, rim washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Manual - Tiresonic GmbH Clean Wheel Solutions
Operating Manual
Wheel Washing Machine - Tiresonic RW 301
Rim Washing Machine - Tiresonic FW-301
Service-Hotline: +49 (0) 1805 / 881333-3*
GmbH
clean wheel solutions
BA-RWA301.02 D (21.09.2011)
* 0,14Euro/Min from the German landline network / mobile phone charges may vary, max. 0,42 Euro/Min.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FW-301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tiresonic FW-301

  • Page 1 Operating Manual - Tiresonic GmbH Clean Wheel Solutions Operating Manual Wheel Washing Machine - Tiresonic RW 301 Rim Washing Machine - Tiresonic FW-301 Service-Hotline: +49 (0) 1805 / 881333-3* GmbH clean wheel solutions BA-RWA301.02 D (21.09.2011) * 0,14Euro/Min from the German landline network / mobile phone charges may vary, max. 0,42 Euro/Min.
  • Page 2 Clamping cone for trucks ....48,00€ Adapter for 14"-Wheels ....Excl. the applicable shipping costs Date: ......Signature: ........Tiresonic GmbH Internet: http://www.tiresonic.de GmbH clean wheel solutions Osterwalder Straße 12 Telephone +49 (0) 1805 / 881333-3* D-87496 Hopferbach Telefax +49 (0) 1805 / 881333-0*...

  • Page 3: Table Of Contents

    5. Safety Instructions General Safety Instructions General Safety Instructions for Wheel Washing Machines Specific Safety Instructions and Frequently Used Symbols Safety Instructions Regarding the Cleaning Agent "Tiresonic UR 2.xx“ 6. Supply Connection (on-site) 7. Handling and Behavior During Operation Assembly and Mounting...

  • Page 4: Product Description

    The quick clamping device enables a simple mounting of car wheels. The mounted tire is effortlessly lifted or lowered by a pneumatically operated hoisting device. The operation of the Tiresonic RW 301 takes place using the clearly arranged operating console. GmbH...

  • Page 5: Operating Range And Intended Use

    2. Operating Range and Intended Use The wheel washing machine is tested for funktion and durability. It provides efficiency and safety. It is up to you to use these advantages. This requires correct operation, proper maintenance and grat care for the washing machine. Please read the instructions carefully.

  • Page 6: Transport - Storage - Scope Of Delivery

    Unpacking When unpacking the wheel washing machine and the accessories kit, make sure to check for possible damage in transit which should immediately be reported to the forwarding company and the Tiresonic company. All components have to be laid out carefully so that nothing is lost with the disposal of the packaging materials.

  • Page 7: Important Information

    (If necessary, use the back of this sheet.) Damage repair and billing A regulation of transport damage can only be managed by the Tiresonic company if a notification of claims is recieved within 3 working days after delivery in one of the above listed ways.

  • Page 8: Transport Damage Report

    3. Transport Damage Report FAX: +49 (0) 1805 / 881333-0* Wheel Washing Machine Type: Serial number : delivered by Delivery note no. : Company: through Date : delivery during unpacking the following damage was recorded: (exact description of damage) damaged The package was not damaged GmbH...

  • Page 9: Technical Data

    Tiresonic UR 2.xx Mixing ratio: (according to the water hardness) approx. 2% dilution (270 l water and 5kg cleaning agent) The tensides contained in "Tiresonic" are at least 90% biodegradable according to T ensV of WRMG. Electrical connection: 3 x 400 V , 16 A (slow acting) Compressed air supply: p max.

  • Page 10: Safety Instructions

    5. Safety Instructions General Safety Instructions Company's duty of care: The wheel washing machine was built and constructed under consideration of all mandatory harmonised standards and further technical specifications. It is therefore at the highest level of technology and offers maximum safety during operation. However, the machine safety can only be implemented in operational practice if all actions necessary are taken.The operator of the wheel washing machine is obliged to plan these measures and check that they are being complied with.
  • Page 11 5. Safety Instructions Basic safety measures for normal operation: Only qualified and authorized persons are permitted to operat the wheel washing machine. These have to know the operating manual and be able to work accordingly! Before turning on the wheel washing machine ensure that: ·...
  • Page 12 5. Safety Instructions Working on the electrical equipment: · Only carry out work when the equipment is disconnected from the power supply. · Repair work on the electrical equipment of the wheel washing machine may only be performed by a qualified electrician! ·...

  • Page 13: General Safety Instructions For Wheel Washing Machines

    If there is a danger of frost the cleaning agent must be removed from the machine. Only permissible cleaning agent "Tiresonic UR 2.xx" may be used. If other cleaning agents are used the manufacturing company is exempt from all liabilities.

  • Page 14: Specific Safety Instructions And Frequently Used Symbols

    5. Safety Instructions Specific Safety Instructions and Frequently used Symbols The following operating manual safety instructions point out unavoidable residual risks that may arise while operating the wheel washing machine.These residual risks include danger for: · People · Product · Environment The symbals used in this operating manual are primarily intended to call attention to the safety instructions! The primary purpose of these safety instructuins is to prevent personal injuries.

  • Page 15: Safety Instructions Regarding The Cleaning Agent "Tiresonic Ur 2.Xx

    5. Safety Instructions Safety Instructions Regarding the Cleaning Agent "Tiresonic UR 2.xx" Safety instructions for the preperation of a 2% cleaning agent solution with 100% cleaning agent (product description Tiresonic UR 2xx) when handling Tiresonic UR 2.xx pur: Harmful und irritant substance.

  • Page 16: Supply Connection (On-Site)

    6. Supply Connection (on-site) The electricity supply of the wheel washing machine on-site takes place via a CEE-cable connected to the electricity network 400 V / 3 phases / 16 A (slow acting). The socket must have a right-handed rotary field. (DIN VDE 0 100 part 560, point 4.7) Electrical connections should only be performed by qualified electricians.

  • Page 17: Handling And Behavior During Operation

    7. Handling and Behavior During Operation Assembly and Mounting Caution: The filled machine is not allowed to be switched off if installed on a site prone to frost. Alternatively drain the water! Damage due to frost is born by the customer. Note Place the machine in the intended position and align the tank horizonatally using the integrated bubble...

  • Page 18: Overview Of Controls

    7. Handling and Behavior During Operation Overview of Controls Button: "Up" Button: "Down" Button: "Clamp" / "<!>" Heating Modes Note: After switching on the machine, the heating is always active! Heating always active Activate by pressing <Heating On> Heating always off Activate by pressing<Heating OFF>...

  • Page 19: Initial And Follow-Up Operation

    Fill the cleaning tank with cold or pre-heated water to above the level sensor. Add 5 Kg cleaning agent "Tiresonic UR 2.xx“ for a new filling and dissolve completely by stirring. No cleaning agent should remain on the tank floor! The cleaning tub will automatically be heated to operating temperature (ex factory approx.

  • Page 20: Cleaning Process

    7. Handling and Behavior During Operation Initial and Follow-up Operation Cleaning Process: Clamping the wheel Put the pneumatically driven wheel dolly in the lowest position with the button <Down> (this is the operating position for clamping and removing the wheel). (The wheel dolly will automatically stop in the lowest position.) Release the support shaft by pressing <Clamp>...
  • Page 21 7. Handling and Behavior During Operation Initial and Follow-up Operation Immersing the wheel into the cleaning bath Vie button control drive the pneumatically driven wheel dolly into its uppermost position. (the wheel dolly will automatically stop in the uppermost position) Rotate the supporting arm in center above the cleaning bath by hand.
  • Page 22 7. Handling and Behavior During Operation Initial and Follow-up Operation Starting cleaning Press the "60s" button for lightly soiled, "120s" button for normally soiled and "180s" button for heavily soiled rims. The washing program will now run automatically. The material and environmentally friendly ultrasonic cleaning technology, combined with the wheel rotation ensure extremely clean wheels without additional manual work.

  • Page 23: Adjustments Of Operating Parameters

    8. Adjustments of Operating Parameters Overview of controls Button: "Up" Button: "Down" Button: "Clamp" / "<!>" Heating Modes Note: After switching on the machine, the heating is always active! Heating always active Activate by pressing <Heating ON> Heating always off Activate by pressing <Heating OFF>...
  • Page 24 8. Adjustments of Operating Parameters Water temperature setpoint Press and hold the <Heating ON> button for 5 seconds. The display will show: Water temperature: 45°C End <=> Save <!> Set the desired water temperature with the potentiometer (recommended: 45.0°C). By pressing <Clamp> the water temperature will be saved and the menu exited. By pressing <Timer>...
  • Page 25 8. Adjustments of Operating Parameters The seconds of the line "Time new“ are flashing. Set the seconds using the potentiometer and save with the <Clamp> button. By pressing <Timer> the menu "time" will be exited without saving. The display will show: Sw.time.

  • Page 26: Behavior In Case Of Failure And Maintenance

    · Clean stainless steel tub. Remove residual sediments and refill with new cleaning agent (approx. 2% solution: In 270 l water 5 kg cleaning agent "Tiresonic UR 2.xx") On completing the cleaning, make sure to reset the counter for the cleaning of the tub (see page 24).

  • Page 27: Customer Service

    10. Customer Service Notes on repair services and spare parts acqusition Manufacturer's customer service Tiresonic GmbH Osterwalder Straße 12 D-87496 Hopferbach Telephone +49 (0) 1805 / 881333-3* Telefax +49 (0) 1805 / 881333-0* E-Mail: info@tiresonic.de Internet: www.tiresonic.de Operating hours: Mo - Thu: 7...
  • Page 28 11. Declaration of Conformity No. 08 30 07 Hiermit erklärt Tiresonic als Hersteller, in alleiniger Ver- Herewith Tiresonic declares as a manufacturer its sole responsibility to ensure that the equipment named hereafter antwortung, dass nachstehend bezeichnete Maschine in meets the safety and health regulations both in design and Konzeption und Bauart den grundlegenden Sicherheits- und construction required by the EG Guidelines stated below.
