Summary of Contents for Rolfit CS-160P

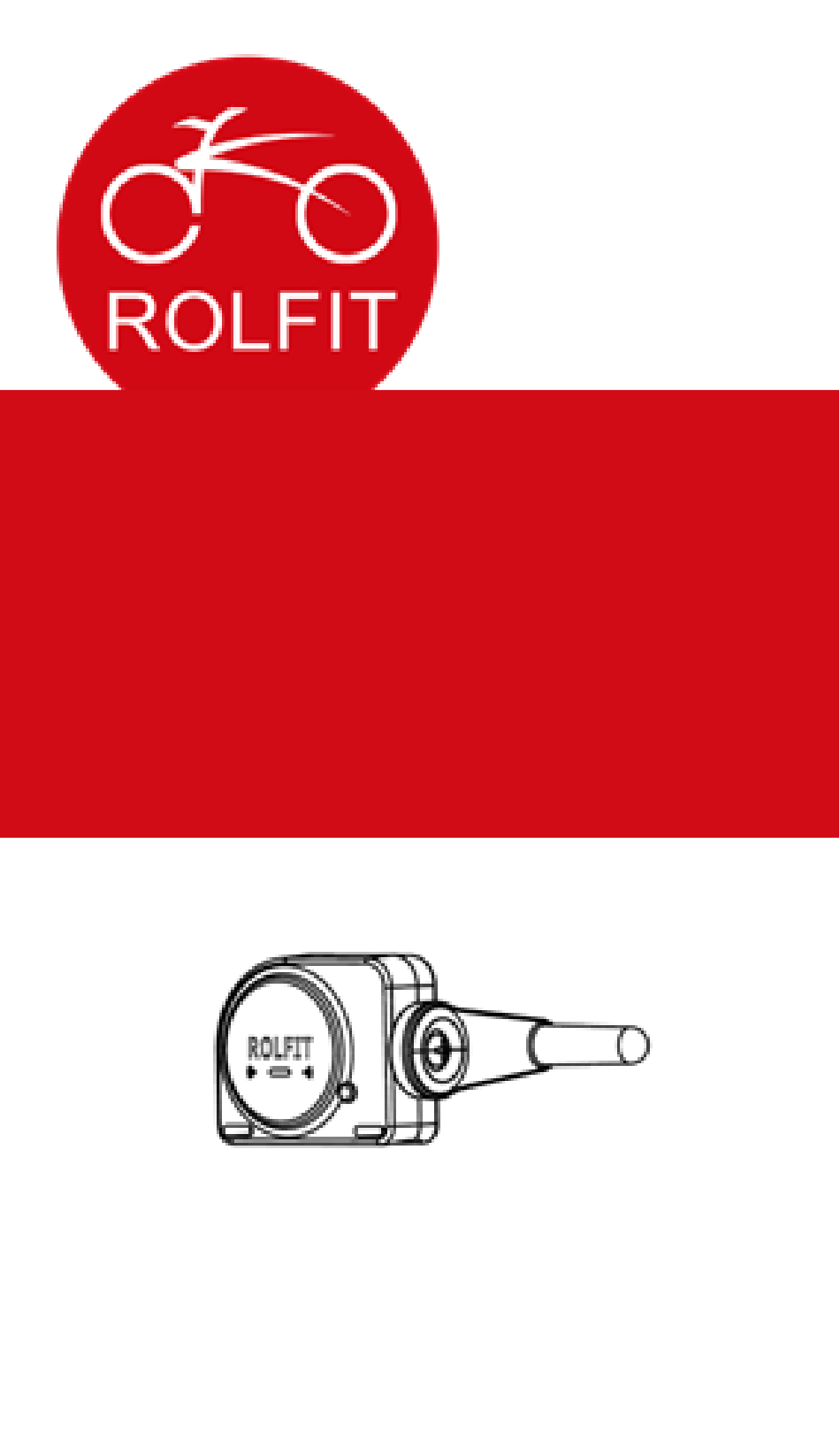

- Page 1 Riding online Bluetooth Cadence & Speed Sensor User Manual ROLFIT CS‐160P...
-
Page 3: Installation
Installation Cable Ties x 3 CS‐160P Pedal Magnet Wheel Magnet Rubber Cushion 1. Preparation Stick rubber cushion to the bottom of CS‐160P... - Page 4 Loose the handle screw for a circle with a screw driver 2. Mount pedal magnet Stick the pedal magnet to your bike’s left crank, and loosely attach it with a cable tie. NOTE: The position of pedal magnet may be adjusted later.
- Page 5 3. Position CS‐160P Turn the left crank flat. Mount CS‐160P on the chain stay close to the pedal magnet. NOTE: The distance between pedal magnet and sensor mark on CS‐160P ( ) shall be less than ½ inch. Bind CS‐160P with 2 cable ties and keep them loose. The position of CS‐160P may be adjusted later. 4. Mount wheel magnet • Unscrew the wheel magnet, and place a spoke in the groove of its plastic piece. Screw the wheel magnet on the spoke close to the CS‐160P handle. ...
- Page 6 NOTE: Adjust the angle of the handle, to make the distance between the handle and the wheel magnet shall be less than ½ inch. 5. Download ROLFIT application Scan the QR code, or search Rolfit in application store to download the Free application.
-
Page 7: Test Your Installation
NOTE: Please use ROLFIT app to pair CS‐160P with your phone. CS‐160P will not appear in the settings menu of your phone. 6. Test your installation • Turn the pedal and let the magnet pass CS‐160P, or press the “reset” button to activate the device. Reset Key • Launch ROLFIT application, pair CS‐160P with your phone and start riding. • Turn the pedal and the rear wheel. Cadence and Speed data shall be displayed. NOTE: Either speed or cadence data is missing, please check the installation position and the distance between the magnets and CS‐160P and try again. - Page 8 7. Ready to go • When speed and cadence data are displayed, make sure you do the following steps, – Fasten the handle screw – Fasten wheel magnet – Tighten all cable ties and cut off the extra parts • Now you are ready to GO! NOTE: If the handle screw is not fastened, it may cause water leak under bad weather or other unpredictable problems. If the wheel magnet is not fastened, the speed data might be missing during riding. If not all cable ties are tightened and cut, unpredictable danger may occur during riding.
-
Page 9: Replace Battery
Replace battery Open battery cover with a coin NOTE: Battery shall be changed if low power is detected in ROLFIT application. Bluetooth connection may fail if battery power is too low. - Page 10 Appendix 1. Tire circumference Tire circumference can be determined by L (mm) either of the following two methods: • Measure the actual tire circumference (L) • Check ETRTO code indicated on the side of the tire. ETRTO Tire size L (mm) ETRTO Tire size L (mm) 47‐203 12x1.75 37‐559 26x1.40 2005 54‐203 12x1.95 40‐559 26x1.50 2010 40‐254 14x1.50 1020 47‐559 26x1.75 2023 47‐254 14x1.75 1055 50‐559 26x1.95 2050 40‐305 16x1.50 1185 54‐559 26x2.10...
-
Page 11: Product Specification
ETRTO Tire size L (mm) ETRTO Tire size L (mm) 25‐622 700x25C 2105 42‐622 700x42C 2224 28‐622 700x28C 2136 44‐622 700x44C 2235 30‐622 700x30C 2146 45‐622 700x45C 2242 32‐622 700x32C 2155 47‐622 700x47C 2268 700C Tubular 2130 54‐622 29x2.1 2288 35‐622 700x35C 2168 56‐622 29x2.2 2298 38‐622 700x38C...
