Summary of Contents for Cineversum Static Cinemascope Lens Kit

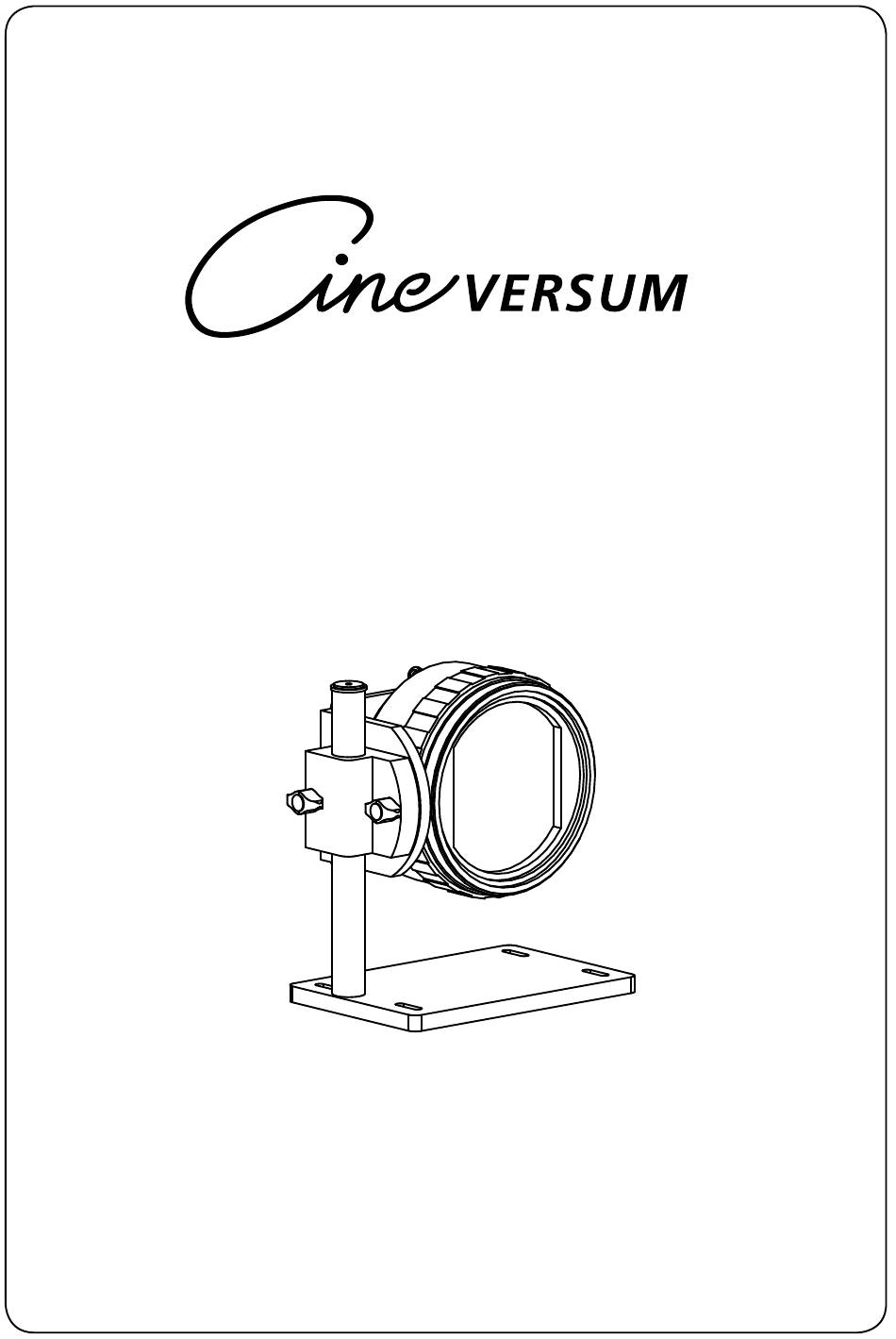

- Page 1 Static Cinemascope Lens Kit ASSEMBLY AND CALIBRATION www.cineversum.com Part. No.: R599864 Ref: T9006100 Rev: 02...
- Page 2 Changes Cineversum provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. Cineversum may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.0 MOUNTING THE LENS ...................... Fixing the Anamorphic lens to the lens mount ................4 Ceiling mounting ..........................4 Table mounting ..........................4 2.0 LENS ALIGNMENT ......................Adjusting the 16:9 picture without the Anamorphic lens ...............5 Adjusting the tilt and the Anamorphic lens vertical position ............6 Adjusting the Anamorphic lens angle. -
Page 4: Mounting The Lens
Mounting the Lens The optional Static Anamorphic Lens kit The Static Anamorphic Lens kit features a very high-quality spherical anamorphic lens. It should be fixed in front of the projector to eliminate the ugly and annoying black bars from the movies that can now been seen in their original cinemascope aspect ratio. -
Page 5: Lens Alignment
Lens ALignMent 2.0 LENS ALIGNMENT 2.1 Adjusting the 16:9 picture without the Anamorphic lens To calibrate the Static Anamorphic Lens kit, the projector need to be perfectly positioned and focused. To do so set a 16:9 picture, and disengage momentarily the Anamorphic lens. Release the knob A to momentarily disengage the Anamorphic lens. -
Page 6: Adjusting The Tilt And The Anamorphic Lens Vertical Position
Lens ALignMent After disengaging the Anamorphic lens, adjust the Zoom until the picture fulfills the height of the cinemascope screen STAND BY INPUT HDMI 1 HDMI 2 COMP. VIDEO S-VIDEO LENS LENS ASPECT HIDE TEST LIGHT MENU BACK PICTURE MODE CINEMA CINEMA CINEMA... -
Page 7: Adjusting The Anamorphic Lens Angle
Lens ALignMent Release knob B to adjust the Anamorphic lens tilt. Pincushion and barrel effects depend of the lens tilt. You may obtain a residual pincushion effect at the screen when using a throw ratio between 1.5:1 and 1.8:1 or a projection distance shorter than 5 meters. It is recommended to install your projector at a minimum distance of 5 meters from the screen and using 1.8:1 or higher throw ratio. -
Page 8: Adjusting The Anamorphic Lens Focus
Lens ALignMent 2.4 Adjusting the Anamorphic lens Focus To adjust the Anamorphic lens focus, turn clockwise or anti-clockwise the manual focus ring until you obtain a clear picture. Turn clockwise or anti-clockwise the focus ring on the Anamorphic lens R599864 - Assembly and Calbration User Manual... -
Page 9: Projector-Side Configuration
Projector-side configurAtion Y-AXIS X-AXIS Focused Not focused Note that the Anamorphic lens focus will only change the focus on the x-axis. If the picture is not focus on the y-axis, that means that the general focus is not correct. You may then set the global focus by adjusting it directly from the projector, using the projector remote control. -
Page 10: Projection Distances
Projection distAnces 4.0 PROJECTION DISTANCES Projection Screen Projection Screen Projection Screen Assembly and Calbration Diagonal Size Base Size Height Projection Distance (Aspect Ratio 2.35:1) 107” (272 cm) 98.4” (250 cm) 41.7” (106 cm) 400 cm - 518 cm 128” (325 cm) 118.1”... - Page 12 Contact information TEC - CineVERSUM 7, rue La Caille, 75017 Paris, France www.cineversum.com Part. No. R599864...
