HB Products HBOR Instruction Manual
Oil pot controller for oil level control in oil pots
Hide thumbs
Also See for HBOR:
- Quick manual (2 pages) ,
- Instruction manual (15 pages) ,
- Instruction manual (5 pages)
Related Manuals for HB Products HBOR
Summary of Contents for HB Products HBOR

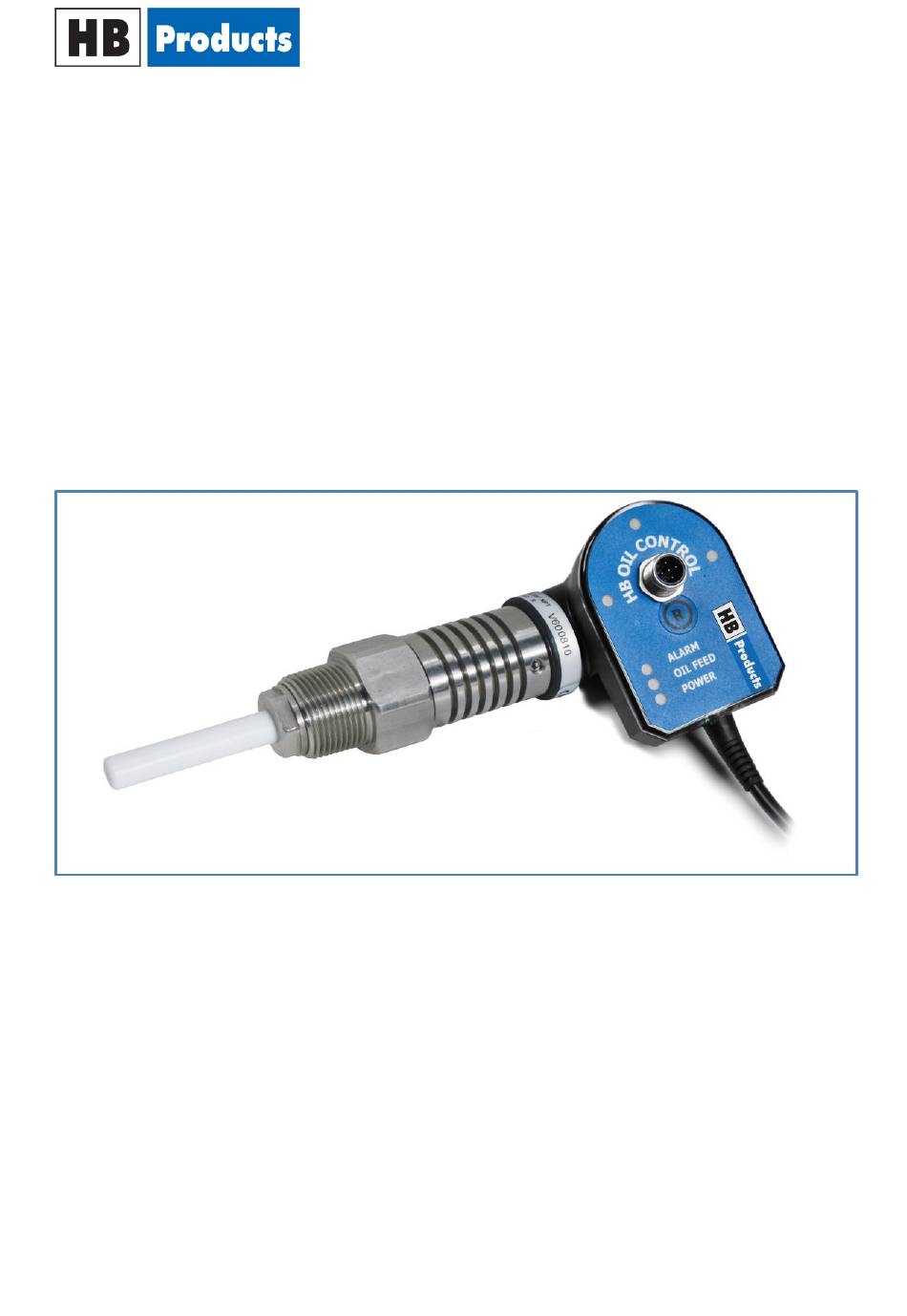

- Page 1 WE INCREASE UPTIME EFFICIENCY IN THE REFRIGERATION INDUSTRY Instruction manual HBOR - OIL POT CONTROLLER For oil level control in oil pots Instruction manual - HBOR – Oil Pot Controller (001UK) 1 / 14...
-
Page 2: Table Of Contents
Installation of HBOC Configuration Tool ........10 PC Configuration ................11 Function description – setup parameters ........11 Fault Detection ................13 Spare parts ..................14 Further Information ............... 14 Instruction manual - HBOR – Oil Pot Controller (001UK) 2 / 14... -
Page 3: Safety Instructions
Intended use, conditions of use. HBOR level controller is made for continuous control of oil level in oil pots. If HBOR is to be used in a different way or with another purpose, and if the operation of the product in this... -
Page 4: Introduction
PC. It is capable of determining on its own the current version which was delivered. The newest version of the tool is backwards compatible. It is not possible to update the software on a sensor which has already been delivered. Instruction manual - HBOR – Oil Pot Controller (001UK) 4 / 14... -
Page 5: Technical Data
NOTE! All terminals are protected against incorrect termination with a supply voltage of up to 40V. If the supply voltage is greater than 40 V, the electronics will be damaged. Functionality HBOR is designed for oil detection and control in oil pots Instruction manual - HBOR – Oil Pot Controller (001UK) 5 / 14... -
Page 6: Installation Guide
Installation of the magnetic valve: So as to be able to supply the magnetic valve directly, it must be installed within 3 metres of the sensor. Mounting Guide HBOR is mounted on an oil pot. The sensor is sealed with Teflon tape or liquid gasket before installation. Dependent upon the thread type, the gasket consists of: ... - Page 7 Cylindrical thread is installed with gasket. Mount the sensor on the oil pot. Tighten thread, The electronic part is installed on the mechanical depending on thread type. part and secured with 2 screws. Instruction manual - HBOR – Oil Pot Controller (001UK) 7 / 14...
-
Page 8: Electrical Connection
IN THE REFRIGERATION INDUSTRY Electrical connection HBOR can be supplied with direct control of the magnetic valve, or it can be connected to the central control via the sensor's control/alarm output. See the diagram below. The sensor has a control function and regulates the flow of oil independent of other parts of the system. - Page 9 The electronics can then be re-installed in the system. After final calibration, one should consider setting "Calibration" to OFF Instruction manual - HBOR – Oil Pot Controller (001UK) 9 / 14...
-
Page 10: Installation Of Hboc Configuration Tool
When this transfer is complete, an image of the sensor appears with a message that the transfer was successful. Press OK to complete the process. Instruction manual - HBOR – Oil Pot Controller (001UK) 10 / 14... -
Page 11: Pc Configuration
Oil valve open time in sec: Number of seconds during which the supply voltage to the oil-return-valve is open. This should be aligned to the system pressure, pipe dimension, and size of valve. Instruction manual - HBOR – Oil Pot Controller (001UK) 11 / 14... - Page 12 The sensor is factory calibrated in PAG68. If a different oil type is used, it may need to calibrated. Alarm output signal: Is selected depending on whether the magnetic valve has the contact function NC or NO (Normally closed/Normally open) Instruction manual - HBOR – Oil Pot Controller (001UK) 12 / 14...
-
Page 13: Fault Detection
In case of faults with the sensor, it will typically only be necessary to replace the electronics. Complaint cases are handled by the HB Products dealers/distributors. Their complain procedures must be followed before returning the sensor. Instruction manual - HBOR – Oil Pot Controller (001UK) 13 / 14... -
Page 14: Spare Parts
HBOR/C-EL Further Information For further information, please visit our website, www.hbproducts.dk, or send an email to: support@hbproducts.dk. HB Products A/S – Bøgekildevej 21 – DK8361 Hasselager – support@hbproducts.dk – www.hbproducts.dk Instruction manual - HBOR – Oil Pot Controller (001UK) 14 / 14...
