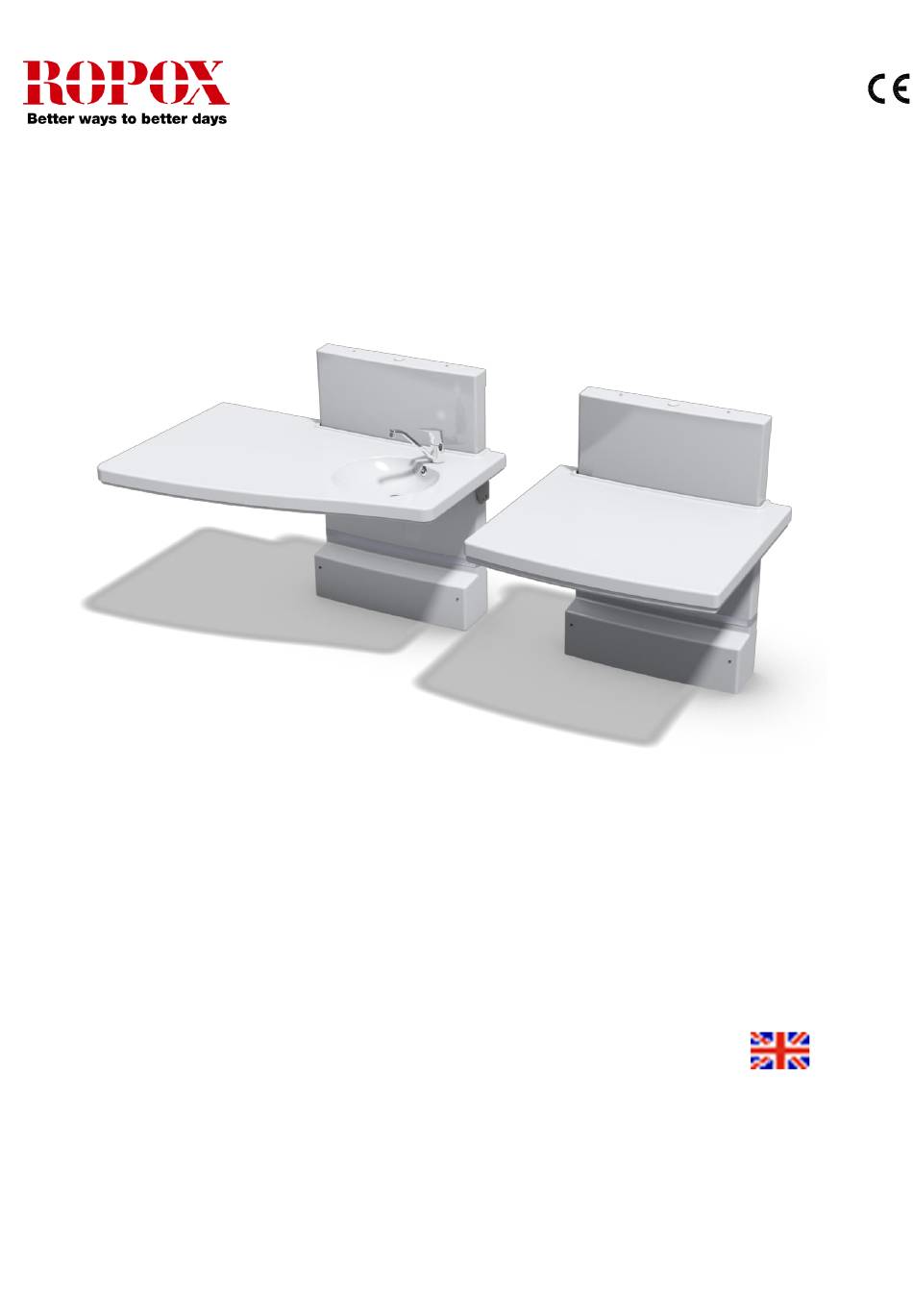

- Page 1 Ropox Nursing table Maxi 2 Usermanual Mounting Instruction This manual need to follow the product PDF 6140 / 28.05.2018...
-
Page 2: Table Of Contents
Contents Product information ..............................3 Item number ................................3 Technical data ................................4 Daily use ..................................4 Recommendations for use ............................5 Important information before mounting ........................6 Placement of 230V socket, hot and cold water and drain ................... 6 Receiving the nursing table ............................ -
Page 3: Product Information
Ropox Nursing table Maxi 2, Heightadjustable Producer : Ropox, DK-4700 Naestved, Tel. +45 55 75 05 00 The height adjustable nursing table is designed for nursing children up to 75 kg. The nursing table can be used I private homes, daycare centers or similar institutions to ensure correct and optimal working conditions for staff. -
Page 4: Technical Data
Generel informations Technical data Power consumbtion: 230V, 50Hz, max 2.0A Standby consumption: 7W Duty cycle: Maks. 10%, 2min/18min Height: Workheight 40 – 100cm Speed: 50mm/s Material – the frame: Welded steeltubes St.37, stainless steel and aluminum The worktop: ABS/PMMA Surface: Powder-coated, white RAL 9010 mat, chromate Max. -
Page 5: Recommendations For Use
Generel informations Recommendations for use Height adjustment allows individual working height for each employee and can also help to reduce the number of lift when transferring from example: a wheelchair user. To ensure optimum utilisation of the functions of the nursing table and to avoid accidents, it is important to observe these basic safety procedures. -
Page 6: Important Information Before Mounting
Mounting instruction Important information before mounting Make sure that there is free space on all sides of the nursing table as shown below. 70 cm Nursing table maxi 2, 130 cm Nursing table Maxi 2, 90 cm Placement of 230V socket, hot and cold water and drain If possible, socket for 230V and drain and connection for hot and cold water should be located as shown on the above sketch. -
Page 7: Receiving The Nursing Table
Mounting instruction Receiving the nursing table These mounting instructions comprise: Lifting unit Mounting screws Covers for the lifting unit Rawlplugs Worktop Bolts M5 x 25 Bolt M4 x 10 Safety plate Bolts M8 x 20 Drain and water hose kit Cable, Safety stop Dimension sketch Page 7... -
Page 8: Mounting Instructions
Mounting Instructions 1.Mounting to the wall The nursing table is being supplied with a set (8 pcs) of screws and rawlplugs, which is ONLY used to mount the unit in a concrete wall. The installer must always examine the material, condition and strength of the wall and use appropriate screws and rawlplugs. - Page 9 Mounting instruction Mounting to the wall Page 9...
- Page 10 Mounting instruction Page 10...
-
Page 11: Mounting Of The Lower Cover
Mounting instruction 2. Mounting of the lower cover 3. Mounting of the upper cover Page 11... -
Page 12: Connection Of The Worktop
Mounting instruction 4. Connection of the worktop 5. Mounting of the worktop Page 12... -
Page 13: Connection Of The Safety Stop
Mounting Instruction 5. Connection of the safety stop Page 13... -
Page 14: Connection Of Water And Drain
Mounting Instruction 6. Connection of water and drain Page 14... - Page 15 Mounting Instruction Page 15...
- Page 16 Mounting Instruction 7. If the table top is not in horizontal level Page 16...
- Page 17 Page 17...
-
Page 18: Wiring Circuit
Electrical components Wiring circuit The nursing table comes with control box mounted on the frame. The diagram shows how to connect the cables with the control box. All plug-in connections are waterproof, and mounting/dismounting may therefore be a little difficult. Make sure that all plugs have the correct position before inserting them into the control unit. -
Page 19: Connections
Electrical components Connections The nursing table comes with control box mounted on the frame. Motor cable connected to port 1. Ports 2, 3 & 4 are not used and are therefore provided by blind plug. Handset must be connected to ”HB”. The mains cable must be connected to the port on the side of the control box. -
Page 20: Performance Test
Performance test After installation and prior to use all functions of nursing table must be tested. The test must be carried out by competent personnel. Subsequently the test shall be carried out once a year. Testing prior to connection to mains voltage: 1. -
Page 21: Labelling
Each nursing table has a label of its own as illustrated. This label contains important information to be stated in connection with inquiries to the supplier. Part no. Serial no. 50-50670-1 Nursing table Maxi 2, 130 cm Name / model 75kg 2014-03... -
Page 22: Support
3. If the tale only moves upward, check if the safety stop has been blocked/activated. 4. Dismount all cables and mount them again. 5. Contact Ropox for support. Waste The used equipment must be disposed of in accordance with national law. -
Page 23: Maintenance
Ropox recommends testing the functions of the nursing table as well as retightening of all bolts and nuts once a year. In case of defects, please contact Ropox as soon as possible and do not use the nursing table until the problem has been solved/remedied. - Page 24 Spare parts 97000462 Actuator Type : LA31.3 Stroke 300 mm 97000469 Controlbox Type : CB9096-2 97000247 Control switch For a complete parts list, please contact Ropox Page 24...
- Page 25 Acessories Item number Description PIcture 50-50680 Mattress for Nursing Table 90cm, grey 88 x 70 x 4 cm. 50-50681 Mattress for Nursing Table 130cm, grey 88 x 75 x 4 cm. 50-50685 Adaptor frame for Nursing Table Maxi Wall distance: 20 mm 50-50686 Adaptor frame for Nursing Table Maxi Wall distance: 80 mm...
- Page 26 On picture there are mounted 2 pcs. 50-14684 Mixer tab Non-touch monobloc tap Iqua 50-50694 Mixer tab with extension shower head 50-50702 2-step ladder White 50-50690 Extra hand control with spiral cable For Maxi 2 og Medi 2 with safety stop Page 26...
- Page 27 50-50697 Ropox Basket unit without wash basin 50-50696 Ropox Basket unit with wash basin Page 27...
-
Page 28: Declaration Of Conformity
Declaration of conformity Ropox hereby declares under sole responsibility that the following products 50-50670 Ropox Nursing table Maxi 2, 130 cm 50-50672 Ropox Nursing table Maxi 2, 90 cm are classified as Class I and comply with the following directives and standards: DIRECTIVES ... -
Page 29: Claims
Claims See General Terms and Conditions of www.ropox.com Ropox A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50 E-mail: info@ropox.dk www.ropox.dk Ropox A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50 E-mail: info@ropox.dk...
