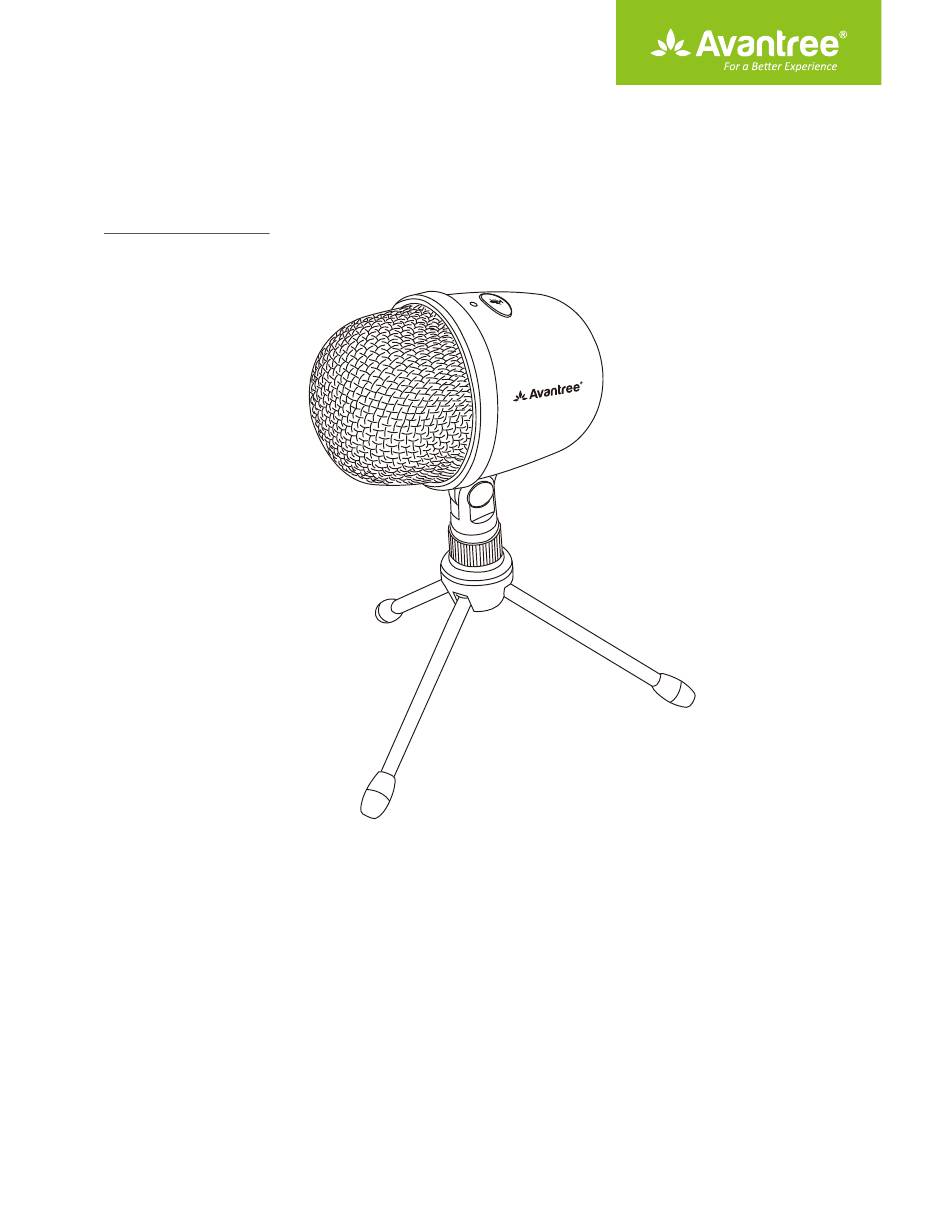

User Manual
USB Condenser Microphone
MICF-3001
Overview ···································································································································································· 1
Setting Up·································································································································································· 1
Using the microphone with Windows 7/8/10 PC ······················································································· 3
Using a headphone with CF3001················································································································· 4
Monitor your voice level (Computer system feature)··········································································· 5
Use with Apple OS system computer··············································································································· 6
Use a headphone with CF3001····················································································································· 8
Monitor your voice (Depends on APP/Software)··················································································· 9
Troubleshooting······················································································································································ 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Avantree MICF-3001
-
Page 1: Table Of Contents
User Manual USB Condenser Microphone MICF-3001 Overview ···································································································································································· 1 Setting Up·································································································································································· 1 Using the microphone with Windows 7/8/10 PC ······················································································· 3 Using a headphone with CF3001················································································································· 4 Monitor your voice level (Computer system feature)··········································································· 5 Use with Apple OS system computer··············································································································· 6 Use a headphone with CF3001·····················································································································... -
Page 2: Overview
Overview Mute Status LED: Mute Working Micro USB 3.5mm audio output Tripod Setting Up 1. Install tripod and adjust microphone angle. - Page 3 2. Connect “Avantree CF3001” to the USB port on your computer with the provided USB cable. The blue LED will light up, indicating that the device is ON. 3. Your computer will automatically recognize the USB device and install a driver.
-
Page 4: Using The Microphone With Windows 7/8/10 Pc
2. Go to Recording tab → Find and choose “Avantree CF3001” as Default Device. 3. You can change the input level via computer settings. Under Recording tab → Find and click “Avantree CF3001” → Click Properties button → Go to Level tab → Adjusting the volume slider. -
Page 5: Using A Headphone With Cf3001
4. Certain apps may also require additional in-app setting adjustments. e.g. Skype: Settings → Audio & Video → Microphone → Select "Avantree CF3001". 5. Now the microphone is ready to be used for recording and for making calls. Using a headphone with CF3001... -
Page 6: Monitor Your Voice Level (Computer System Feature)
→ Select Playback devices or Sounds. (please refer to the section above) 3. Go to Playback tab → Find and choose “Avantree CF3001” as Default Device or output device. Monitor your voice level (Computer system feature) 1. -
Page 7: Use With Apple Os System Computer
2. In Playback tab → Find and click “Avantree CF3001” → Click Properties button → Go to Levels tab → Click to apply Microphone monitoring. Using the microphone with Mac 1. Open System Preferences... - Page 8 2. Double click the icon to display the sound preference panel. 3. Click “Input” → Select “Avantree CF3001” as the device for sound input. (You may also adjust the input level in this tab, if needed.) 4. Certain apps may also require additional in-app setting adjustments.
-
Page 9: Use A Headphone With Cf3001
Now the microphone is ready to be used for recording and for making calls. Use a headphone with CF3001 1. Connect headphones to the headphone jack on CF3001. -
Page 10: Monitor Your Voice (Depends On App/Software)
2. Open System Preferences → Double click the icon → Click Output button → Select the “Avantree CF3001” as the device for sound output. Monitor your voice (Depends on APP/Software) If you would like to monitor the microphone input in real-time through the computer, you will need to turn on your recording software (e.g. -
Page 11: Troubleshooting
Microphone doesn’t work with Skypeor other APP/software. When using certain chatting/audio software, please make sure that the Audio setting of the microphone/input has been set to “Avantree CF3001”. e.g. Skype: Call → Audio Settings → Micro- phone → Select the “Avantree CF3001”.
