Monnit ALTA User Manual

Ac current meter wireless 150 amp current meter
Hide thumbs Also See for ALTA:
Table of Contents

Advertisement

Quick Links

Download this manual
by

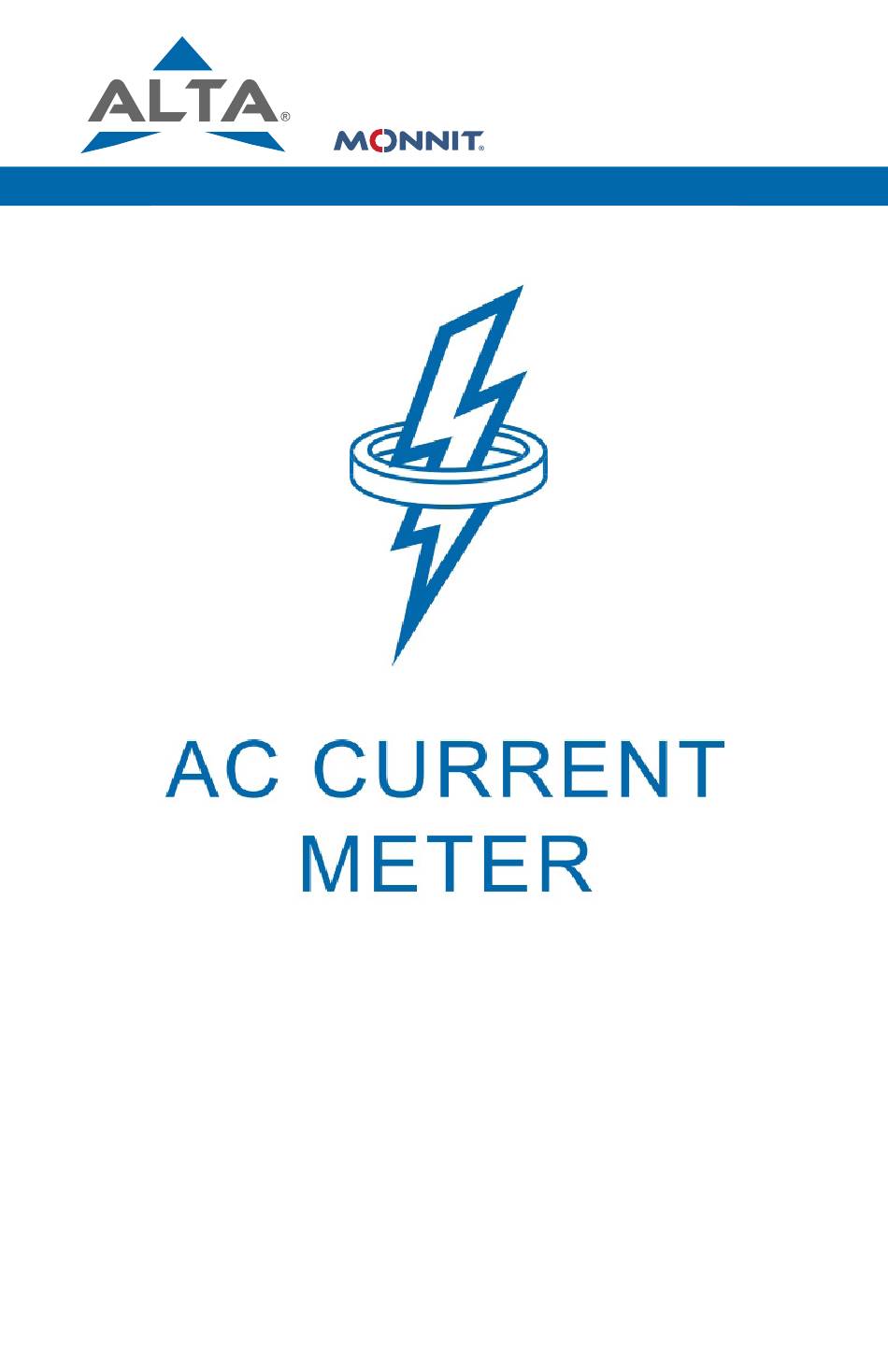

ALTA Wireless 150 Amp Current Meter
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALTA and is the answer not in the manual?

Questions and answers

Related Manuals for Monnit ALTA

Summary of Contents for Monnit ALTA

  • Page 1 ALTA Wireless 150 Amp Current Meter User Guide...

  • Page 2: Table Of Contents

    Table of Contents I. ABOUT THE WIRELESS 150 AMP AC CURRENT METER ALTA WIRELESS 150 AMP AC CURRENT METER FEATURES EXAMPLE APPLICATIONS II. CURRENT METER SECURITY CURRENT METER COMMUNICATION SECURITY DATA SECURITY ON THE GATEWAY iMONNIT SECURITY III. REGISTRATION REGISTERING A CURRENT METER IV.

  • Page 3: About The Wireless 150 Amp Ac Current Meter

    I. ABOUT THE WIRELESSS 150 AMP AC CURRENT METER The ALTA wireless AC Current Meter measures the RMS current of an alternating current (AC) system using a current transformer (CT) that wraps around the “hot” wire of a two wire (hot, common, ground(optional)) power system.

  • Page 4: Current Meter Security

    II. CURRENT METER SECURITY The ALTA Wireless 150 Amp AC Current Meter has been designed and built to securely man- age data from sensors monitoring your environment and equipment. Hacking from botnets are in the headlines, Monnit Corporation has taken extreme measures to ensure your data security is handled with the utmost care and attention to detail.

  • Page 5: Registration

    If you have already created an account, start by logging in. For instructions on how to register for an iMonnit account, please consult the iMonnit User Guide viewable at monnit.com/support/documentation. REGISTERING THE CURRENT METER You will need to enter the Device ID and the Security Code from your 150 Amp AC Current Meter in the corresponding text boxes.

  • Page 6: Setting Up The 150 Amp Ac Current Meter

    When you are finished adding the sensor to your account, the next step is to insert the battery. The type of battery you use will depend on the category of your sensor. ALTA Wireless 150 Amp AC Current Meter will either be powered by commecial coin cell, AA, or an industrial battery.

  • Page 7: Mounting The Sensor

    30 seconds before powering back on. ANTENNA ORIENTATION In order to get the best performance out of your ALTA Wireless Current Meter, it is important to note proper antenna orientation and sensor positioning. Antennas should all be oriented in the same direction, pointing vertically from the sensor. If the sensor is mounted flat on its back on a horizontal surface, you should bend the antenna as close to the sensor housing as possible giving you the most amount of antenna pointing vertical.

  • Page 8: Sensor Overview

    V. CURRENT METER OVERVIEW Select Sensors from the main navigation menu on iMonnit to access the sensor overview page and begin making adjustments to your 150 Amp AC Current Meter. MENU SYSTEM Details - Displays a graph of recent current meter data. History - List of all past heartbeats and readings.
  • Page 9 should be adjusted. F. The pie chart in the Aware or Not Aware Section displays the percentage of aware states your meter has entered since activation. History View Selecting the “History” tab within the tab bar allows you to view the meter’s data history as time stamped data.
  • Page 10 Voltage: Actual voltage measured at the meter battery used to calculate battery percentage, similar to Received Signal you can use one or the other or both if they help you. State The integer presented here is generated from a single byte of stored data. A byte consists of 8 bits of data that we read as Boolean (True (1)/False (0)) fields.
  • Page 11 Settings View To edit the operational settings for a sensor, choose the “Sensor” option in the main navigation menu then select the “Settings” tab to access the configuration page. A. Sensor Name is a unique name you give the meter to easily identify it in a list and in any notifications.
  • Page 12 The default heartbeat interval is 120 minutes or two hours. It is recommended that you do not lower your heartbeat level too much because it will drain the battery. Finish by selecting the “Save” button. Note: Be sure to select the “Save” button anytime you make a change to any of the sensor parameters. All changes made to the sensor settings will be downloaded to the sensor on the next sensor heartbeat (check- in).
  • Page 13 Creating a Calibration Certificate Creating a calibration certificate will mask the calibration tab from those who should not have permissions to adjust these settings. Permissions for self-certifying a calibration must be enabled in user permissions. Directly below the calibrate button is the selection to "Create Calibration Certificate. A.
  • Page 14 Scale View The scale option will be available in the tab bar. To change the amp label and volts, select the Scale tab. Press the “Save” button to complete your adjustment. PAGE 12...

  • Page 15: Support

    If any software or firmware incorporated in any Product fails to conform to the warranty set forth in this Section, Monnit shall provide a bug fix or software patch correcting such non-conformance within a reasonable period after Monnit...
  • Page 16 (c) Monnit’s sole obligation under the warranty described or set forth here shall be to repair or replace non-conforming products as set forth in the immediately preceding paragraph, or to refund the documented purchase price for non-conforming Products to Customer. Mon- nit’s warranty obligations shall run solely to Customer, and Monnit shall have no obligation...

  • Page 17: Certifications

    All ALTA Wireless Sensors Contain FCC ID: ZTL-G2SC1. Approved Antennas ALTA devices have been designed to operate with an approved antenna listed below, and having a maximum gain of 14 dBi. Antennas having a gain greater than 14 dBi are strictly prohibited for use with this device.
  • Page 18 Canada (IC) English Under Industry Canada regulations, this radio transmitter may only operate using an anten- na of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the Equivalent Isotropically Radiated Power (E.I.R.P.) is not more than that necessary for successful communication.
  • Page 19 All the relevant information’s is available on the European Community website: http://ec.europa.eu/enterprise/sectors/rtte/documents/ Additional Information and Support For additional information or more detailed instructions on how to use your Monnit Wireless Sensors or the iMonnit Online System, please visit us on the web at monnit.com/support.
