ROSE BRAND KABUKI SYSTEM Installation Instructions Manual

Can operate a full stage single kabuki drop on just one trip mechanism

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Installation Instructions

Version 1.0

Table of Contents

Need help?

Do you have a question about the KABUKI SYSTEM and is the answer not in the manual?

Questions and answers

Summary of Contents for ROSE BRAND KABUKI SYSTEM

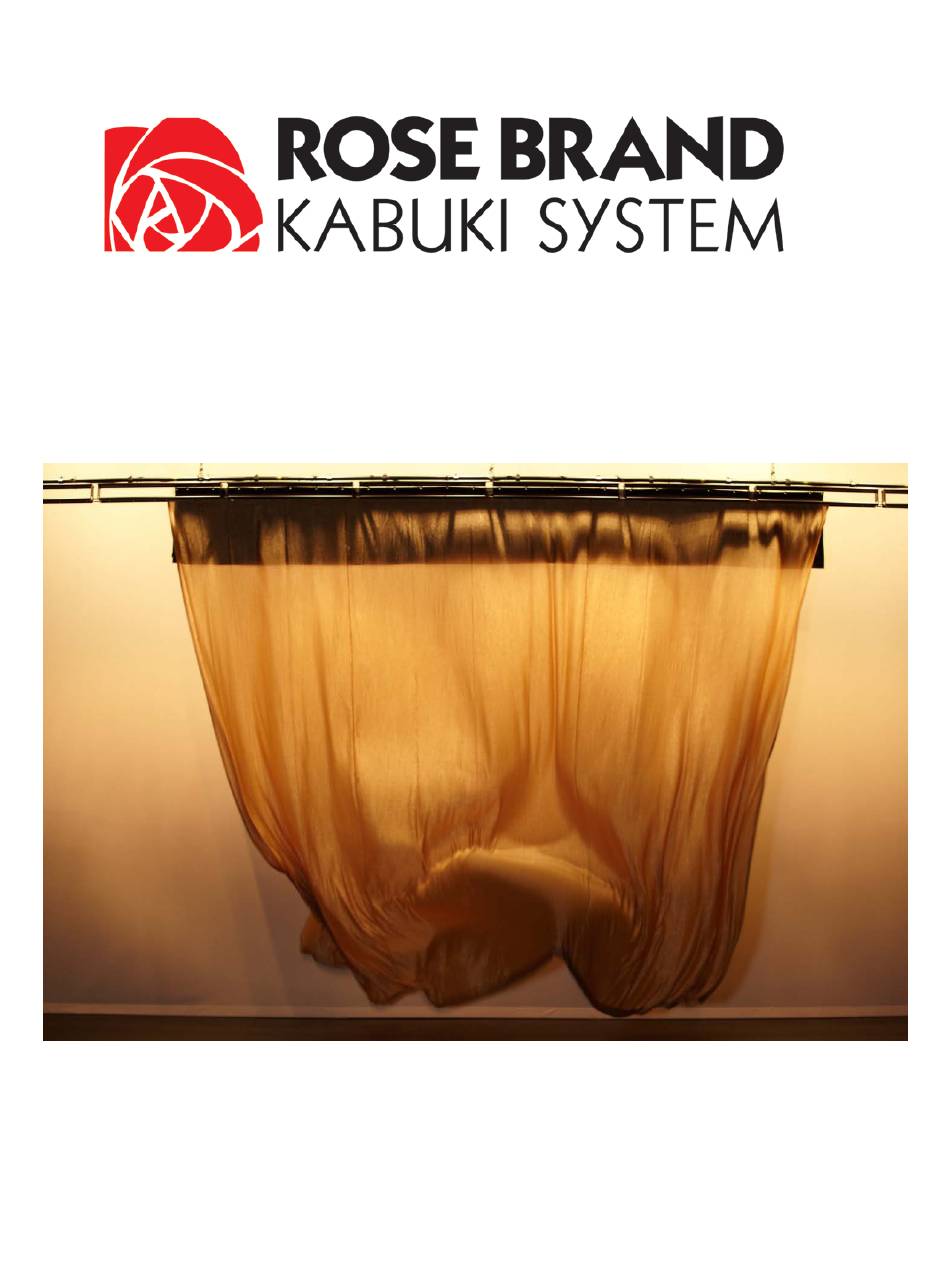

Page 1 Installation Instructions Version 1.0...
Page 2 1/8” Allen Wrench (included with Trip Mechanism) Materials Recommended: Tie-Line End Plate Pipe Clamp Coupling And Bracket Support Rod Trip Mechanism Curtain Rod Curtain Pin Lever Figure 1: Kabuki units with and without a Trip Mechanism installed. ROSE BRAND NJ 800.223.1624 CA 800.360.5056...
Page 3 Step 2: Starting from the center of the batten pipe or truss, hang one Kabuki unit (aligned with center) and tighten the pipe clamp thumb screws and bracket bolts. Step 3: Hang another Kabuki unit adjacent to the first and tighten the pipe clamp thumb screws only. ROSE BRAND NJ 800.223.1624 CA 800.360.5056...
Page 4 Figure 3 Step 5: Once the units are meshed together tighten the pipe clamp bracket nuts (refer to Figure 2). Step 6: Repeat steps 3, 4, and 5 until all units are in place. ROSE BRAND NJ 800.223.1624 CA 800.360.5056...
Page 5 Helpful Hint: It is important to be familiar with the Kabuki units so test the functionality of the units often and before going “live”. Also, ensure that the curtain will be the only thing falling from above. Please remember SAFETY FIRST! ROSE BRAND NJ 800.223.1624 CA 800.360.5056...
Page 6 (stage right and stage left). Make sure they are labeled and everyone is aware of their function and which line gets pulled first. ROSE BRAND NJ 800.223.1624 CA 800.360.5056...
Page 7 This is your manual release. In the event of an electrical failure, simply pull this cord and the curtain will release. Trip Mechanism Bolts and Washers Lever Cotter Pin Figure 6 ROSE BRAND NJ 800.223.1624 CA 800.360.5056...
Page 8 “Arm” toggle switches are down the units cannot be triggered. To activate the unit push the desired toggle switch up. To trigger the unit press the corresponding “fire” button. When Power Light is lit, Pendant has power. With toggle “Arm” switch up; press “Fire” button to trigger Kabuki Figure 8 ROSE BRAND NJ 800.223.1624 CA 800.360.5056...
