Dual Head 2R Moving Head Light

AL120Twins

USER MANUAL

Table of Contents

Need help?

Do you have a question about the AL120Twins and is the answer not in the manual?

Questions and answers

Summary of Contents for Aolait AL120Twins

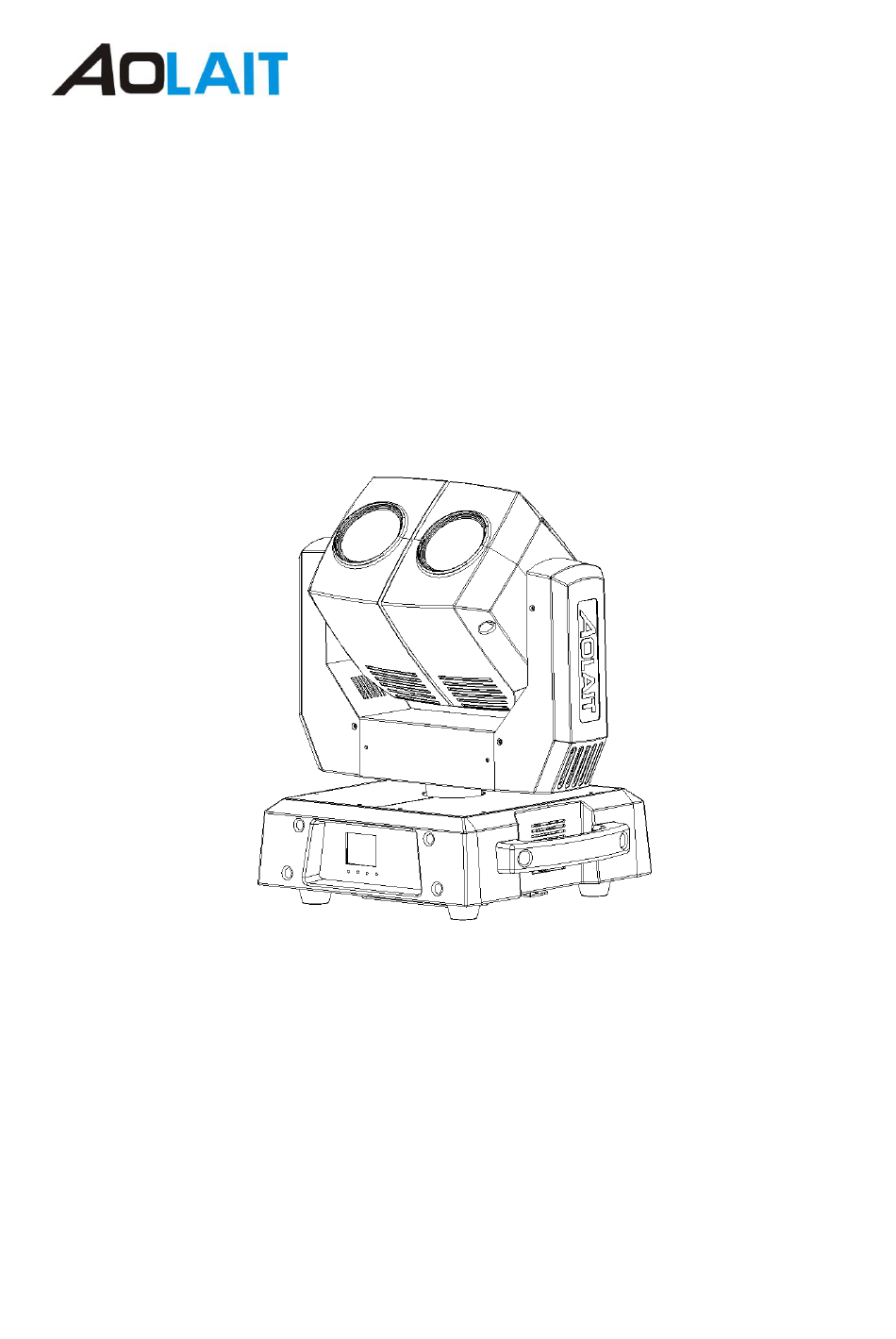

Page 1 Dual Head 2R Moving Head Light AL120Twins USER MANUAL...
Page 2: Table Of Contents
INDEX Fixture Introduction ....................2 Safety Information ....................3 Installation ......................5 Power Supply ......................6 Signal Connection ....................8 Fixture Setting .......................9 Channel List ......................12 Maintenance ......................18 Thank you very much for purchasing this product! Before any use, please carefully read and fully understand all of this manual recorded safety instructions to avoid potential hazards may cause bodily injury, property damage or product damage.
Page 3: Fixture Introduction
Fixture Introduction Item Number: AL120Twins Item Description: Dual Head 2R Moving Head Light Technical Parameter Voltage: AC100-250V 50/60Hz Power Consumption:400W Lamp: 2pcs of Yodn MSD 132 R2 (Optional Philips/Osram) Lifespan: 6000Hours Color Temperature: 8000K DMX control: 25/28/38 Channels Pan: 540°/630°，8/16Bit resolution Tilt: 270°，8/16Bit resolution...
Page 4: Safety Information
Safety Information WARNING： Read the Safety Information Chapter before any installation, connection to power and maintenance of this product, For Professional use only! This product would cause serious injury or fatal electric shock, burning, lamp explosion, falling. Read the Safety Information Chapter before installation, power, maintenance. Follow the safety guidiance on light body Shock protection ...
Page 5 as soon as possible, collect the ruptured lamp should wear protective gloves, not to be thrown away when the light bulb scrapped, should these poisonous dangerous goods sent to specialized treatment institutions Burns and fire prevention  Exterior lighting during use may be relatively high temperature, avoid contact with the human body or other object, please let the lamp to cool sufficiently before handling ...
Page 6: Installation
INSTALLTION WARNING: When hanging lamps, you must install additional safety rope to prevent the harm caused by failure of the lamp hook, Insurance Department of Insurance Eyelet rope must position lamps shall be installed on the carrying handle When the lamp is not trustworthy place, head of the movement may be driven by the movement of the base, Therefore, in unacknowledged or hanging lamps firmly placed the case, do not turn During the day when the lens cover or turn the direction of the lens to avoid direct...
Page 7: Power Supply
Hanging 1. OMEGA bracket lamp installed on the hook and tighten the screws 2. The OMEGA bracket to lamp base, clockwise tightening fast lock 3. Lamps on each side of a person, lift the fixture, the lamp poles and locking snap hook 4.
Page 8 Cable color Plug Mark Brown FireWire Blue Zero wire Yellow/Green Ground wire When the power cord is scratched lines skin, the outer protective skin breakage or length is too short and should be replaced Replace wire 1． Remove the original power cord 2．...
Page 9: Signal Connection
Signal Connection Lighting by XLR plug XLR DMX input and output signals, defined as follow: 3 core and 5 core plug and socket adapter, 5-pin XLR pin 4 / Pin 5 is not used Data Connection: 1 Connect a DMX signal cable from the controller to the lighting signal input port 2 Connect a DMX signal cable from the lamp signal output port to the next fixture 3 fixtures DMX signal line only series, for use in parallel signal distributor 3 In the last fixture between the signal output 2 feet and 3 feet of a termination resistor...
Page 10: Fixture Setting
Fixture setting Menu: Address Standard Reduced Channel Mode Extend System Auto Backlight Keep On Lamp Control Turn On/Turn Off Lamp Power Full Power/Low Power Head Reset Manual XY Reset Reset All Reset Channel Test Program 1 Test Program 1 Test Program 2 Test Program 2 Auto Test Test Program 3...
Page 11 Detailed Settings Open the lamp, press the MENU key to enter the setup menu. Through the upper and lower buttons select the desired setting item, press ENTER key to enter the child; press ENTER to save the setting is completed, press the MENU button to return to the standby screen. Lighting should be set up when not in power has been pressing the ENTER key, opened the display panel, the setup is complete return to the standby screen, the display panel will be turned off automatically.
Page 12 1：Pan/Tilt Setting: Set X-axis inverted, Y-axis inverted, X axis running angle (540 degrees / 630 degrees, the default setting is 540 degrees), each setting basis having ENTER to save 2：Dimmer curve Select dimming curve, the default settings are: curve one 3：Display Setting Setting the display forward or flip the display, in the main menu while holding down two keys can be set directly...
Page 13: Channel List
Channel List Reduced Standard Extended Channel Name Function Value 0-255 PAN MOVEMENT 8bit (540°or 630°) Pan 16Bit 0-255 PAN FINE 16bit Left Tilt 0-255 LEFT TILT MOVEMENT 8bit Left Tilt 16Bit 0-255 LEFT TILT FINE 16bit Right Tilt 0-255 RIGHT TILT MOVEMENT 8bit Right Tilt 16Bit 0-255 RIGHT TILT FINE 16bit...
Page 14 OPEN 8/15 GOBO 1 16-23 GOBO 2 24-31 GOBO 3 32-39 GOBO 4 40-47 GOBO 5 48-55 GOBO 6 56-63 GOBO 7 64-71 GOBO 8 72-79 GOBO 9 80-87 GOBO 10 88-95 GOBO 11 96-103 GOBO 12 104-111 GOBO 13 112-119 GOBO 14 Left Gobo...
Page 15 96-103 GOBO 12 104-111 GOBO 13 112-119 GOBO 14 120-26 GOBO 1 SHAKE 127-133 GOBO 2 SHAKE 134-140 GOBO 3 SHAKE 141-147 GOBO 4 SHAKE 148-154 GOBO 5 SHAKE 155-161 GOBO 6 SHAKE 162-168 GOBO 7 SHAKE 169-175 GOBO 8 SHAKE 176-182 GOBO 9 SHAKE 183-189...
Page 16 0-31 SHUTTER CLOSED 32-63 SHUTTER OPEN 64-95 STROBING SLOW - FAST 96-127 SHUTTER OPEN Left Shutter 128-159 PULSE EFFECT IN SEQUENCES 160-191 SHUTTER OPEN 192-223 RANDOM STROBE SLOW - FAST 224-255 SHUTTER OPEN Left Dimmer 0-255 Dimmer0-100% Left Dimmer 16Bit 0-255 0-225 MAX TO MIN.
Page 17 60-79 LAMP OFF 80-120 PAN AND TILT RESET 121-160 HEAD MOTOR RESET 161-255 ALL RESET Route map...
Page 19: Maintenance
Maintenance&cleaning Lamps need daily cleaning. Time factor depends on the environment and cleaning cycles related to the following: Used with smoking machine, frog machine  High rate of local wind speed (eg: air inlet and outlet)  Dust(Such as stage effect ) ...
Page 20 Aolait lighting CO.,Ltd No.48 Guanghua Road Xinya Huadu District Guangzhou Tel：+86 20 61809262/61809261 Fax：+86 20 61809260 E-mail：sales@aolait.com Web：www.aolait.com...
