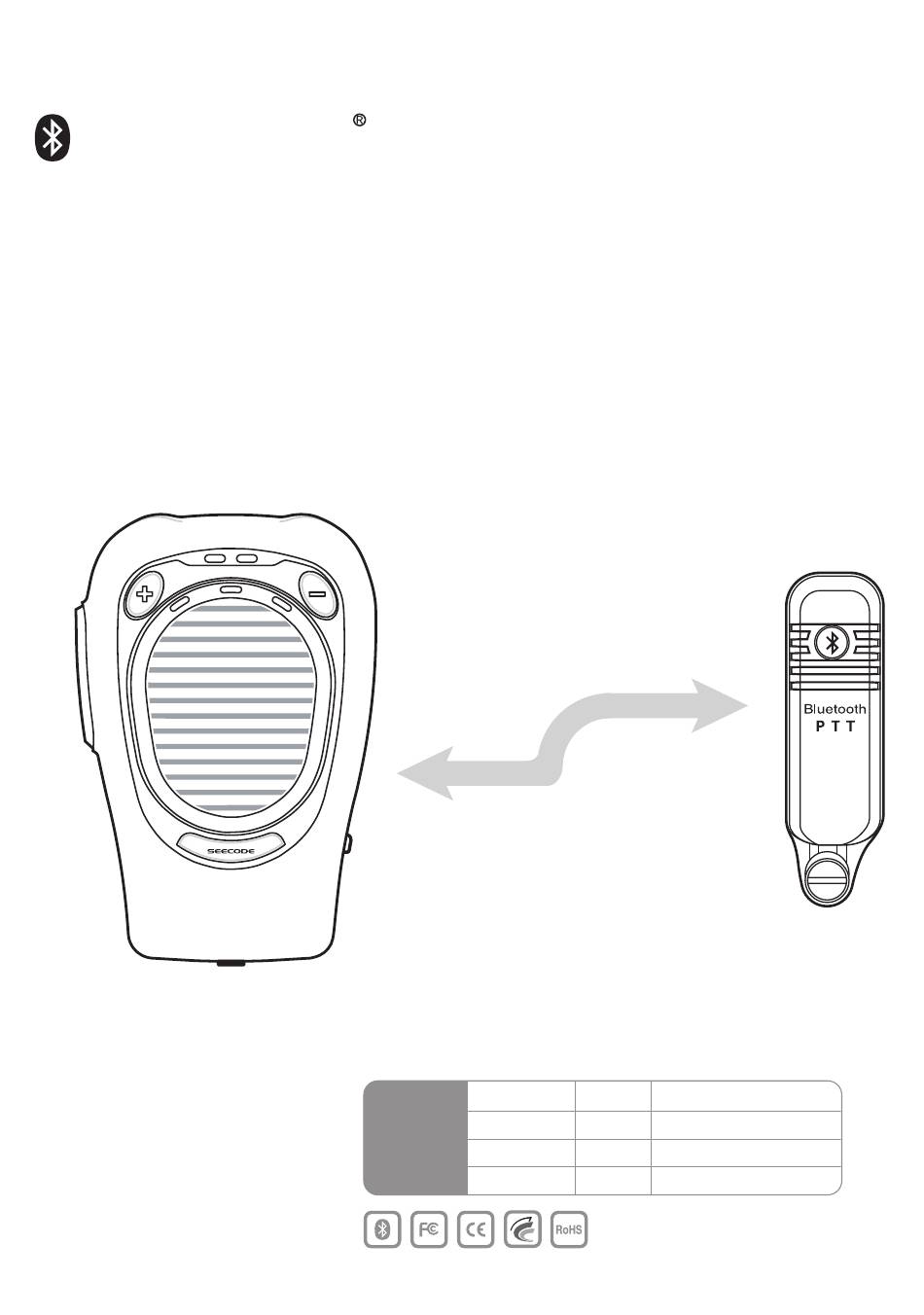

Bluetooth PTT - Full Kit
EXPERT
Bluetooth
Speaker Microphone
USER MANUAL
Thank you for choosing SEECODE Bluetooth PTT full kit.
This device connects your two-way radio to Bluetooth Speaker Mic.
without wire and let you more comfortable to use.
29, Nov. 2006
Patent
6, Nov. 2007
List
12, Nov. 2007
8, Jan. 2007
KOREA
10-0791097
EUROPE
07021512.4
JAPAN
4361584
U.S.A
11/650,812
ENGLISH
Advertisement
Table of Contents
Summary of Contents for Seecode Bluetooth PTT
- Page 1 Bluetooth PTT - Full Kit EXPERT Bluetooth Speaker Microphone USER MANUAL Thank you for choosing SEECODE Bluetooth PTT full kit. This device connects your two-way radio to Bluetooth Speaker Mic. without wire and let you more comfortable to use. 29, Nov. 2006 KOREA...
-
Page 3: Table Of Contents
Bluetooth PTT USER GUIDE Contents Product overview .................... 4 In the package ....................5 Part description ....................6 Connecting wireless dongle to radio ..............8 How to use Bluetooth Speaker Mic. Charging ......................9 Power on / off ....................10 Pairing ...................... -
Page 4: Product Overview
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE Product overview What is Bluetooth Speaker Microphone? Substitute wired Speaker microphone by wireless system using Bluetooth technology. What is air-conduction earphone? It is an accessory that helps conversation at noisy environment by using air-conduction system with a built-in microphone. -
Page 5: In The Package
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE In the package Speaker Mic. Wireless Dongle (SCP860) (SHD614) User’s Manual Charging adapter Option Air-conduction earphone Cigarette Charger Earphone (BA-01) -
Page 6: Part Description
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE Part description Bluetooth Speaker Mic. (SCP860) Multi Button LED (Red) LED (Blue) Volume (Up) Volume (Down) PTT Button Speaker Earphone Jack (Air-conduction earphone Jack) Charging Jack Shoulder Clip Reset Button... - Page 7 Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE Wireless Dongle (SHD614) Pairing Button LED (Red / Blue) SCREW...
-
Page 8: Connecting Wireless Dongle To Radio
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE Connecting wireless dongle to radio Insert projecting part of wireless dongle to groove of radio when the radio is power off. Then tighten the screw up clockwise so that the wireless dongle can be... -
Page 9: How To Use Bluetooth Speaker Mic
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE How to use Bluetooth Speaker This product has a built-in battery and need to be fully charged before you use. Charging • On charging : Both Red & Blue LED flashes at the same time periodically. -
Page 10: Power On / Off
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE Power on / off • Turning On : Press Multi Button for 2 seconds when it was powered off. (There is a beep sound and blue LED flashes five times) • Turning Off : Press Multi Button for 4 seconds when it was powered on. -
Page 11: Pairing
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE Pairing • Bluetooth Speaker Microphone : As power off, press Multi Button for 6 seconds (Blue LED flashes 5 times continuously and rapidly flashes with pairing sound). • Wireless Dongle : Press Pairing Button for 6 seconds after radio is turned on (Blue LED flashes continuously). -
Page 12: Direction
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE Direction • Speaking : Press PTT Button while you are speaking and the red LED turns • Hearing : Release PTT Button while you are hearing and the blue LED turns • Standby : Blue LED flashes 3 times periodically. -
Page 13: Appendix
Bluetooth PTT USER GUIDE Bluetooth PTT USER GUIDE Appendix On pairing disconnection • If radio is turned off or operating range is exceeded (abnormal status), pairing is dis-connected and there is an alarm sound for 5 times. When it comes to normal status, they are automatically connected. -
Page 14: Specifications
Bluetooth PTT USER GUIDE Specifications Bluetooth Speaker Mic. Wireless Dongle (SCP860) (SHD614) Bluetooth version Bluetooth ® Ver2.0 Bluetooth ® Ver2.0 Up to 100m (Variable up Up to 100m (Variable up Operating range to environment) to environment) Operating temperature -10°C ~ +60°C -10°C ~ +60°C... - Page 15 BLUETOOTH PTT USER GUIDE Bluetooth PTT USER GUIDE Declaration of confirmation Section 15.19 Labelling requirements This device complies with part 15 of the FCC rules. Operations is subject to the following two conditions : 1. This device may not cause harmful interference and 2.
-
Page 16: Warranty
WARRANTY Free of charge Warranty shall not apply to... - Page 17 Bluetooth Professional www.seecode.com SHINPOONG ELECTRONICS Rm. A-1107, Gwangmyeong Technopark, 60, Haan-Ro, gwangmyeong-City, Gyeonggi-Do, KOREA Tel : 82-70-7945-2401, Fax : 82-2-2083-2272 www.seecode.com e-mail : sale@seecode.com...
- Page 18 FCC - OET TCB Form 731 Grant of Equipment Authorization 페이지 1 / 1 GRANT OF EQUIPMENT AUTHORIZATION Certification Issued Under the Authority of the Federal Communications Commission Compliance Certification Services Date of Grant: 12/02/2008 47173 Benicia Street Fremont, CA 94538 Application Dated: 12/02/2008 SEHWA Electronics Co.,LTD 378-1 Maetan Dong, Yeongtong-Ku...
- Page 29 FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 30 Information to user. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be...
- Page 31 Manufacturer Address : A1107, Gwangmyeong Technopark, 60, Haan-Ro, Gwangmyeong-City, Gyeonggi-Do, KOREA To locate in-country Shinpoong Electronics Inc., distributors of the Wireless Dongle, please refer to the Shinpoong Electronics Inc. Website http://www.seecode.com These distributor(s) represent local contacts for this product. CORPORATE HEADQUARTERS: Shinpoong Electronics Inc.
- Page 32 EUROPEAN UNION “DECLARATION OF CONFORMITY” DECLARATION OF CONFORMITY Shinpoong Electronics Inc. A1107, Gwangmyeong Technopark, 60, Haan-Ro, Gwangmyeong-City, Gyeonggi-Do, KOREA declare under our sole responsibility that the product(s) Wireless Dongle – SHD614 to which this declaration relate(s) is in conformance with the following standards: EN 301 489-1 V1.9.2:2011 EN 301 489-17 V2.1.1 :2009 EN60950-1:2006...
