Summary of Contents for Turning Technologies RCRF-03

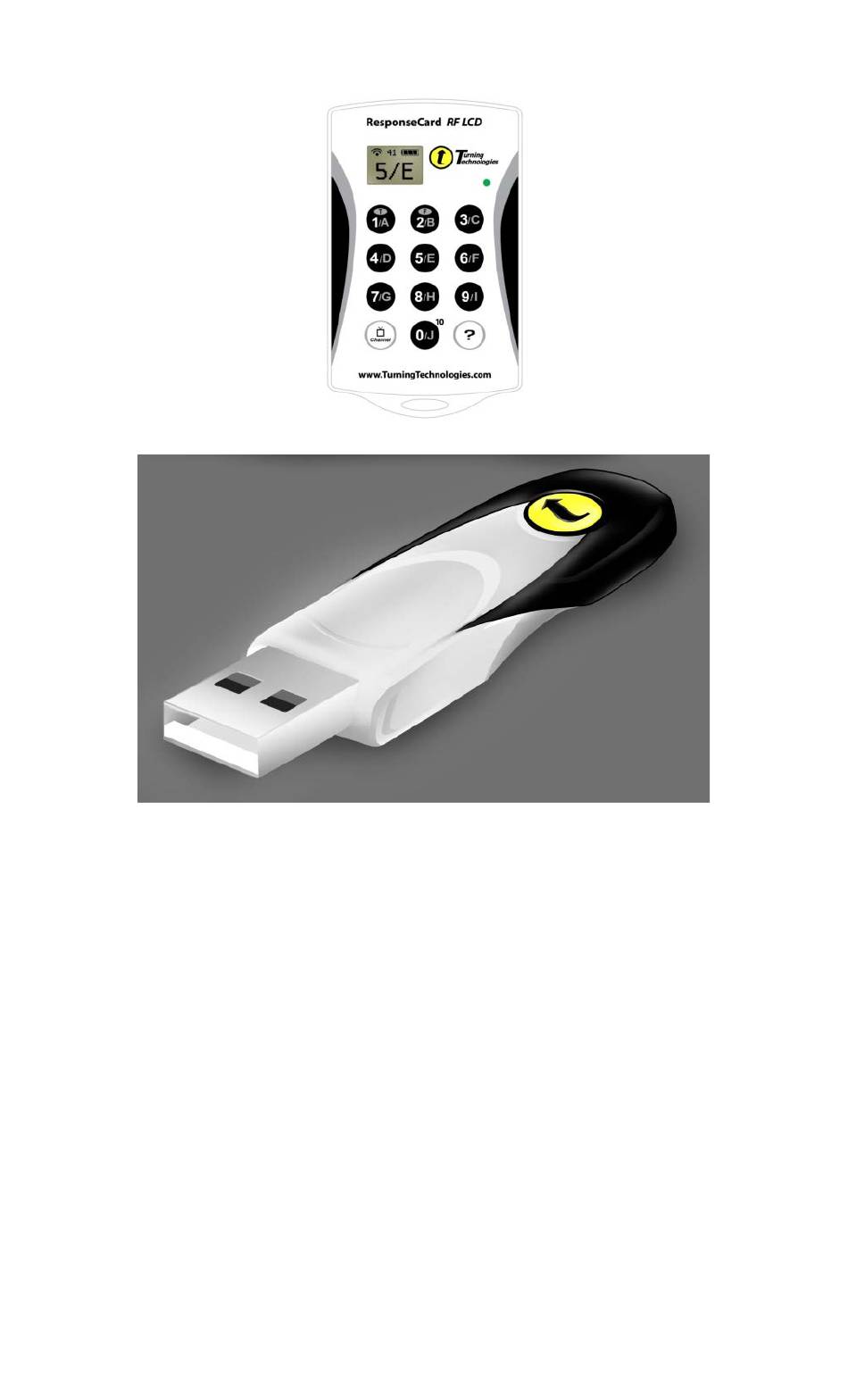

- Page 1 Turning Technologies RCRF-03 ResponseCard RF LCD and RRRF-03 USB HID RF Receiver User’s Manual RCRF-03 & RRRF-03 User’s Manual Ver. Preliminary...

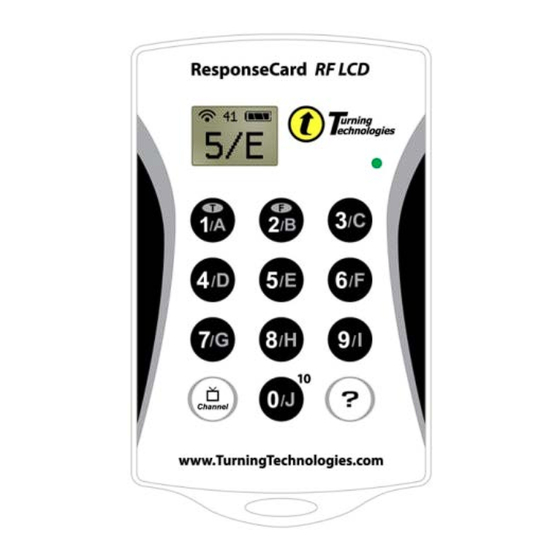

- Page 2 Overview: The RCRF-03 Keypad is designed to be used with the RRRF-03 Receiver connected to a PC. The keypad transmits key presses via radio frequency to the RF receiver for accumulation by the PC. The keypad consists of 12 data keys (0-9, Channel, ?), a single status LED, and a small LCD.
- Page 3 Quick Yellow Blink then OFF/LCD with Circle with Slash- Receiver is not accepting data at this time Blinking Yellow - key is being transmitted (up to 8 seconds) Solid Green/LCD with Response pressed - key transmit successful - ready for input Solid Red/LCD with Ch and Slash- key transmit failed –...
- Page 4 Once the RRRF-03 is plugged in and recognized by the operating system, the appropriate software from Turning Technologies must be launched to enable the polling solution. Additionally, the RRRF-03 has the ability of a mass storage device once recognized by the operating system.
- Page 5 REGULATORY INFORMATION FCC Statement This product has been tested and found to comply with Part 15 of the FCC Rules. Operation it subject to the following conditions: it may not cause harmful interference and must be accept interference received, including interference that may cause undesired operations.
