Ofs LC Fiber Optic Jumper Connectors Assembly Instructions Manual

Epoxy method for singlemode and multimode lc simplex and duplex jumper connectors used on simplex and duplex 1.6-mm minicord jumper cords
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

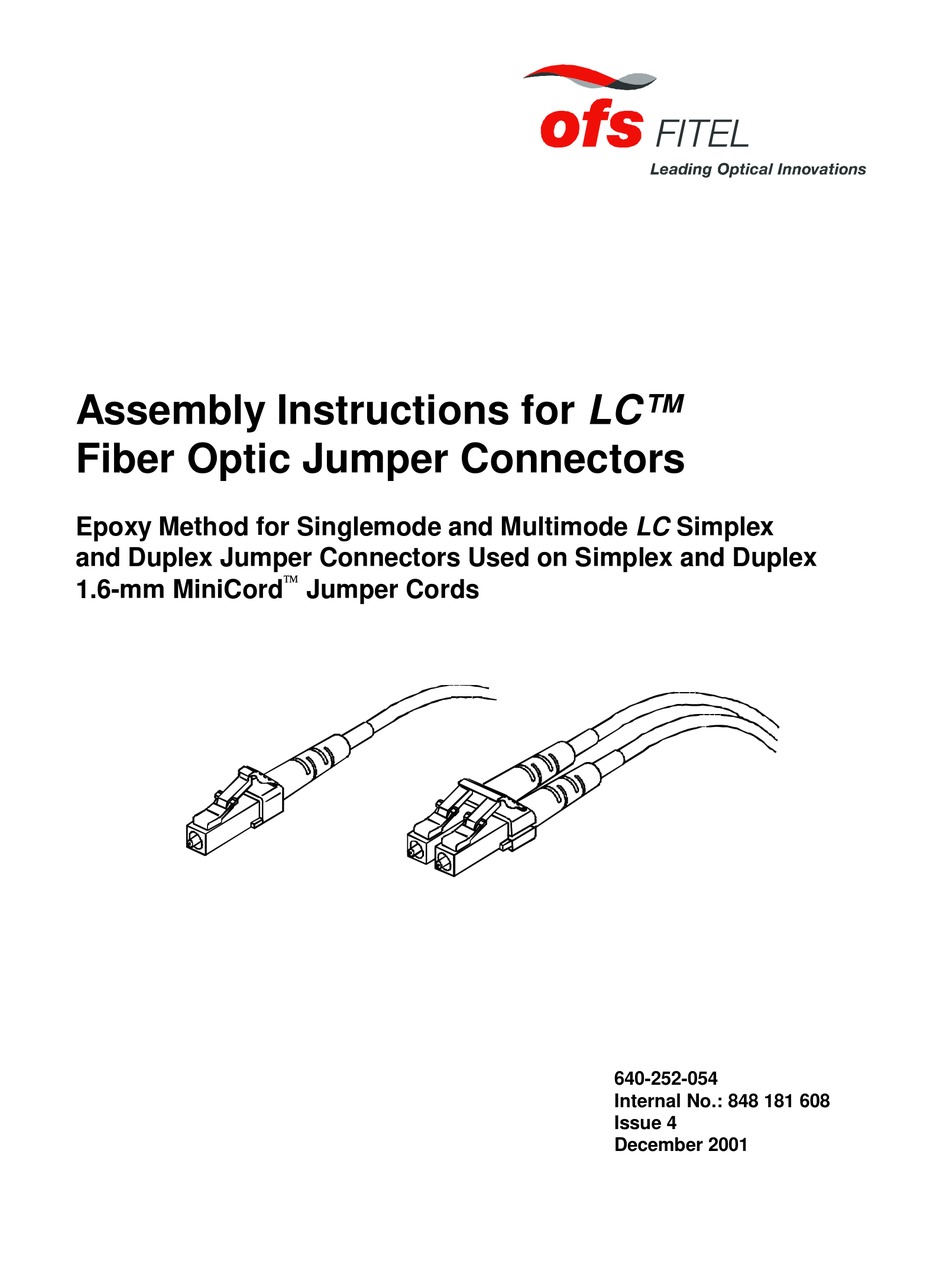

Assembly Instructions for LC™
Fiber Optic Jumper Connectors
Epoxy Method for Singlemode and Multimode LC Simplex
and Duplex Jumper Connectors Used on Simplex and Duplex
1.6-mm MiniCord
Jumper Cords
640-252-054
Internal No.: 848 181 608
Issue 4
December 2001

Advertisement

Table of Contents
loading

Summary of Contents for Ofs LC Fiber Optic Jumper Connectors

  • Page 1 Assembly Instructions for LC™ Fiber Optic Jumper Connectors Epoxy Method for Singlemode and Multimode LC Simplex and Duplex Jumper Connectors Used on Simplex and Duplex  1.6-mm MiniCord Jumper Cords 640-252-054 Internal No.: 848 181 608 Issue 4 December 2001...

  • Page 3: Table Of Contents

    9.1.4 Hardcase with Foam Insert..................22 9.1.5 Instruction Sheet ...................... 22 9.2 Safety Information......................22 9.3 Tuning Procedure......................23 10. Mount Adapter ........................27 11. Ordering Information......................28 12. Assistance Information....................... 31 Copyright  2001 OFS Fitel All Rights Reserved Printed in U.S.A.

  • Page 5: General

    1. General 1.1 LC™ Jumper Connectors The LC Fiber Optic Simplex and Duplex Jumper Connectors can be used to terminate simplex  and duplex 1.6-mm MiniCord jumper cords. It is intended for use in Central Offices, Local Area ® Networks (LANs), and in patch cords for Premises Distribution Systems such as SYSTIMAX Structured Cabling Systems.

  • Page 6: Ordering Information

    1.4 Ordering Information Section 11 contains ordering information for LC connectors and kits. 2. Safety Precautions • Safety glasses should be worn at all times while performing the installation procedures. • Avoid skin contact with the epoxy. • Place combustibles away from the curing oven when it is in operation. After the oven has reached its operating temperature, the oven ports and heat tube assemblies are extremely hot [266°F (130°C)].

  • Page 7: Cord Preparation

    4. Cord Preparation 4.1 Assemble Connector Components 4.1.1 Simplex Applications on a Simplex Cord 1. Thread a cable support onto the simplex cord, narrow end first. 2. Thread a crimp sleeve onto the cord. The metal end of the crimp sleeve should be oriented toward the end of the cord.

  • Page 8: Duplex Applications On A Duplex Cord (With Regular Duplex Yoke)

    4.1.3a Duplex Applications on a Duplex Cord (with Regular Duplex Yoke) 1. Split the jacket on the duplex cord into two separate cords at least 9 inches (230 mm) from the end. 2. Thread a cable support onto each cord, narrow end first. 3.

  • Page 9: Duplex Applications On A Duplex Cord (With Replaceable Duplex Yoke)

    4.1.3b Duplex Applications on a Duplex Cord (with Replaceable Duplex Yoke) 1. Split the jacket on the duplex cord into two separate cords at least 9 inches (230 mm) from the end. 2. Determine the buffer color of each cord by looking at the end of the cordage. The duplex cord should have a blue buffer and an orange buffer.

  • Page 10: Remove Outer Jacket And Trim Strengthening Yarn

    4.2 Remove Outer Jacket and Trim Strengthening Yarn 1. Locate the template and pen provided in the D-182959 Upgrade Kit (108 262 536). 2. Measure and mark outer jacket at 1.125 inches (28.5 mm) and at 1.375 inches (34.9 mm) from the end.

  • Page 11: Remove Buffer And Fiber Coating

    5. Use the 700A stripping tool to remove outer jacket at the 1.375 inches (34.9 mm) mark. This will expose 0.25 inch (6.3 mm) of yarn. Stripping tool (blue handles) Number 1 notch Outer jacket being removed 6. Flare the shortened strengthening yarn evenly around the cable. The brush from the 1026A stripper tool can be used.

  • Page 12: Clean Stripped Fiber

    5. Close the handles of the heat-strip tool and wait 6 to 10 seconds for the softening of the buffer to occur. 6. Wrap the cord around your index finger and pull the fiber from the tool with one smooth and straight motion.

  • Page 13: Epoxy Preparation

    5. Epoxy Preparation The supplied epoxy comes in a two-part package. A divider separates the resin from the hardener. The divider must be removed to allow the epoxy to be mixed. The epoxy is then loaded into a syringe. Both the epoxy package and the syringe are furnished with the D-182977 (108 338 591) and the D-182983 (108 340 811) Kits of Consumables.

  • Page 14: Connector Installation

    6. Connector Installation Connectors are provided in packages which must be ordered by product codes (see Section 10 for LC Connector Product Codes). Each connector is fitted with a white dust cap to protect the connector tip from damage and contamination. During the connector installation process a holder (provided in the D-182959 Upgrade Kit) is used to protect the fiber protruding from the connector tip and to aid in the handling of the small connectors.

  • Page 15: Insert Fiber

    1. Visually locate the small tube inside the back of the connector. Cutaway view showing small tube Syringe Holder Connector 2. Carefully insert the tip of the syringe into the small tube until it bottoms. Caution: In the following step, do not apply excess epoxy to the connector tip of the ferrule. 3.

  • Page 16: Install Crimp Sleeve

    6.4 Install Crimp Sleeve 1. Slip the cable crimp sleeve assembly over the back of the connector while capturing the strengthening yarn. 2. Using the 1510LC crimping tool (supplied in the D-182959 kit), place the square edge of the connector against one edge of the crimp jaw with the crimp sleeve assembly lying through the crimp jaws.

  • Page 17: Cure Connector Assemblies

    6.5 Cure Connector Assemblies 1. When the desired number of connectors has been prepared, place the holder block next to the preheated oven. 2. Place the crimped connector assemblies into the heat pipes. 3. Ensure that the connector assemblies are sitting at the bottom of the heat pipes. 4.

  • Page 18: Polish Fiber EndMultimode And Singlemode

    6.8 Polish Fiber EndMultimode and Singlemode Caution: Contaminates on polishing materials can cause scratches on the end face of the fiber/ferrule. Throughout the entire polishing process, keep work area and all polishing materials clean. Clean polishing papers between each step using a wipe moistened with alcohol.
  • Page 19 Note: If excess epoxy is found, continue to use type J polishing paper (purple) to remove the excess epoxy. Type J polishing paper (purple) with dull side up Step 3. Dome Ferrule End a. Place the following consumables on the glass plate: one white foam pad, five clear spacers, and on top place a sheet of type F polishing paper (yellow).

  • Page 20: Repair Polishing Only

    Table A. Overview—Polishing Multimode No. of Figure-8 Step Polishing Materials Notes Strokes Type J, purple As Required Air polish to remove fiber stub. Type J, purple 20, then as Dry polish on glass plate to One spacer (clear) required remove excess epoxy. Type F, yellow Dry polish on glass plate to Five spacers (clear), foam pad...

  • Page 21: Duplex Connectors (With Replaceable Duplex Yoke)

    Note: The latches on the connectors should be aligned and nested just under the trigger on the duplex yoke. 5. With the connectors still inside the adapter, attach cable supports to the back of connectors. Note: Attach each cable support by pushing forward. Do not twist and push. Twisting and pushing may damage the fiber.

  • Page 22: Fiber Inspection And Ferrule Endface Geometry

    7. Fiber Inspection and Ferrule Endface Geometry 7.1 Fiber Inspection Danger: Optical fibers may emit radiation if the far end is connected with a working laser or light-emitting diode (LED). Never view the fiber end of a cable or plug with the naked eye or any optical instrument until absolute verification is established that the fiber is disconnected from any laser or LED source.

  • Page 23: Ferrule Endface Geometry

    7.2 Ferrule Endface Geometry The dimensions in Table C are for reference only and apply after all polishing procedures have been completed. Table C. Recommended Singlemode Ferrule End Geometry Item Reference Minimum Nominal Maximum Dimensions Radius Pedestal Dome Ecc — —...

  • Page 24: Cleaning Instructions

    8. Cleaning Instructions 8.1 LC Connector 1. Dampen a wipe with isopropyl alcohol (>91% 2-propanol + water). 2. Clean the end of the ferrule with the dampened wipe. 3. Blow the ferrule dry with canned air. Caution: Signal performance will be affected if the connector tip is not thoroughly cleaned. 8.2 Adapter 1.

  • Page 25: Tuning Instructions

    9. Tuning Instructions 9.1 General Information ∗ The D-183017 LC Tuning Kit (108 476 094) is comprised of the following: • Tuning Index Tool • Tuning Wrench • Singlemode Offset Tuning Jumper • Hard case with foam insert • Instruction card. 9.1.1 Tuning Index Tool The Tuning Index Tool is used to determine which of six ferrule positions yields the lowest insertion loss in both jumper and Behind-The-Wall (BTW) connectors.

  • Page 26: Singlemode Offset Tuning Jumper

    Caution 1: Damage will occur to the Tuning Wrench or the connector barrel/ferrule if the Tuning Wrench is rotated without the wrench being bottomed against the connector housing. Caution 2: Damage may occur to a jumper connector if the barrel/ferrule is rotated more than 180 degrees (three flats) in either the clockwise or counterclockwise direction.

  • Page 27: Tuning Procedure

    9.3 Tuning Procedure Note: Before starting the tuning measurements, make a copy of the tuning sheet on the following page. 1. Install the beige LC Offset Tuning Connector into test port of the adjustable section (small end) of Tuning Index Tool. 2.
  • Page 28 Tuning Index Tool Position Turn 1 Flat Turn 2 Turn 3 Turn 2 Turn 1 Flat Tuned Flats CCW Flats CCW Flats CW - 24 -...
  • Page 29 4. Grasp the small end of the Tuning Index Tool with one hand and large end of the Tuning Index Tool with the other hand. 5. Pull small end away from large end and rotate small end 60 degrees in clockwise direction. Note 1: It takes 3-4 pounds (0.9-1.8 kilograms) of force to separate the two halves of the Tuning Index Tool properly.
  • Page 30 12. With the wrench keys engaged in the connector keyways, push the wrench into the connector until the wrench bottoms against the connector housing. 13. Note that one of the flat portions of the Tuning Wrench is aligned with the connector latch. Tuning Wrench bottomed against connector housing...

  • Page 31: Mount Adapter

    10. Mount Adapter Caution: The adapter should never be installed from the front of a panel or outlet. 1. Locate the panel or outlet where the adapter is to be mounted. 2. Install the adapter from the rear of the panel or outlet. Note: The channel markings (B A) are normally oriented horizontally.

  • Page 32: Ordering Information

    11. Ordering Information 1032B5 Tool Kit (106 705 213) Replacement Description Quantity Comcode Quantity 1510B Crimping Tool 106 918 998 1 Tool 300B Microscope 104 412 077 1 Microscope 1510A Polishing Tool 106 918 980 1 Tool 600B Connector Holders 107 118 549 12 Holders 700A Stripping Tool...
  • Page 33 D-182959 Upgrade Kit for LC™ Jumper and BTW Connectors (108 262 569) Replacement Description Quantity Comcode Quantity T2001A Polishing Tool 108 209 651 1 Tool LC Microscope 107 863 946 1 Microscope LC BTW Connector Holders 107 852 493 12 Holders LC Jumper Connector Holders 108 262 585 12 Holders...
  • Page 34 D-183017 Singlemode Tuning Kit (108 476 094) Replacement No. Qty. Description Comcode Quantity LC™ SM Offset Test Jumper 108 476 110 LC Tuning Index Tool Assembly 108 476 151 LC Tuning Wrench 108 476 136 Instruction Card (See Note) 848 339 305 Hard Case w/ foam insert Note: Obtain instruction card from field support (1-888-342-3743).

  • Page 35: Assistance Information

    EPO-TEK 353ND adhesive.) 12. Assistance Information For more information, contact your OFS Fitel Sales Representative or call 1-800-344-0223. For fiber optic technical assistance, call 1-888-FIBERHELP (1-888-342-3743) or contact your Network Cable Systems Representative.
