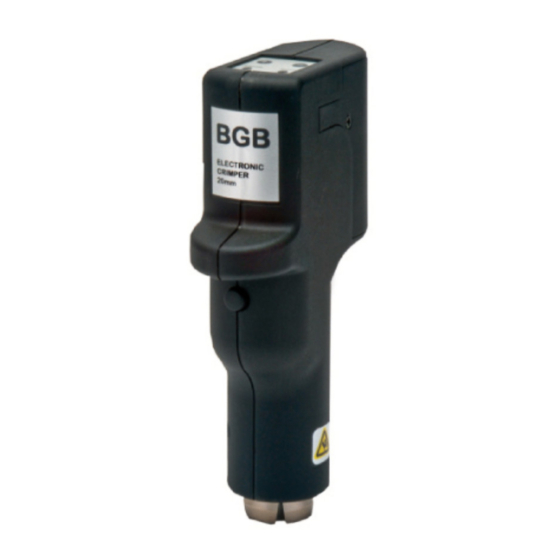

- Page 1 High Power Electronic Crimping Tool PN 295060 Operation Guide © BGB Analytik AG Manual Part Number: DR-BGB-1811 August 2018...
-
Page 2: Safety Notices
The high power electronic crimping tools do not contain user serviceable parts. Support and Repair If the crimping tool is still in the warranty period, contact BGB Analytik office for support. If the warranty period has expired, please contact BGB Analytik. Find contact details on www.bgb-shop.com. -
Page 3: Table Of Contents
Table of Contents Safety Notices Maintenance and Cleaning Support and Repair Storage and Shipping Product Content Safety and Regulatory Certifications Symbols Instrument Specification Sound pressure Intended use Limits Warnings Warnings Special battery warnings Disposal of battery Description and Setup Description Crimping tool setup Operation Connecting the power supply... -
Page 4: Product Content
Product Content Part No. Description Part No. Description 295060 High Power Electronic Crimping Tool 295061 Base with Mounting Kit (Crimping Tool not included) Description 11mm 13mm 13mm 20mm 20mm Crimper Crimper Crimper Crimper Crimper Crimper Jaw Set Jaw Set Jaw Set... -
Page 5: Safety And Regulatory Certifications
Warnings in the manual or on the instrument must be observed during all phases of operation, service and repair of this instrument. Failure to comply with these precautions violates safety standards of design and the intended use of the instrument. BGB assumes no liability for the customer‘s failure to comply with these requirements. -
Page 6: Instrument Specification
Instrument Specification Sound pressure Sound pressure LpA = 79 dB(A). Intended use Electronic Crimping Tools are intended for use in a laboratory environment, all other uses are prohibited. Limits Temperature 15 - 35 °C Maximum humidity 75% Pressure 0.75 - 1 bar... -
Page 7: Warnings
Warnings Warnings Wear safety glasses when crimping or decapping. The crimper or decapper jaws can pinch severely. Never insert fingers into the crimper or decapper. Special battery warnings Risk of burns; battery may explode or catch fire if mishandled. Do not disassemble or dispose of in fire. Use only the 12 v DC power supply supplied with the crimping tool. -
Page 8: Description And Setup
Please read through this entire guide to familiarize yourself with the operation of the tool before pro- ceeding. Use the same degree of care as you wold with any precision instrument. If there is any visible damage, contact BGB Analytik immediately. ③... -
Page 9: Operation
Operation Connecting the power supply Connect the 12 v DC supply to an electrical outlet with the power cord provided, and also to the con- nector on top of the crimping tool. (see Figure 1) After power up, the jaw set may be selected with the buttons while the display is blinking. -
Page 10: Locking The Crimping Tool
Locking the crimping tool If the power is connected, the crimping tool must be locked before changing jaw sets. To lock out the tool, hold the button for 2 seconds. The display will show OFF and then flash with the last jaw set code in use. The go-button will not start the tool when it is locked out. Figure 2. -
Page 11: Adjusting The Tool For Crimping Jaws
Note: While the jaw set code is flashing use the button to choose the size and the button to select c for crimper or d for decapper. Figure 5. When the selection is complete, press and hold the go-button for 2 seconds to confirm the selection. - Page 12 Take 3 to 4 empty vials and place the cap with seal onto the vial. Rest the tool on the vials. Press the go-button and hold until the crimp is complete. Check the crimped vial for tightness and form. (Figure 8 A to C) Figure 8.
-
Page 13: Adjusting The Tool For Decapping Jaws
Adjusting the tool for decapping jaws Probably, the factory settings are satisfactory and it won‘t be necessary to adjust the decapping jaws. If the caps are not removed sufficiently, the decapper jaws can be adjusted as follows: The 11mm decapping jaws should close around the neck of the vial and strip the cap off. If the cap is not removed completely, increase the strength of the decapper stepwise by pushing the button until the cap is removed completely. -
Page 14: Reset
Reset Pressing the reset button is the same as disconnecting and reconnecting power. After selecting the jaw set and pressing the go-button, the crimping tool retracts to the top zero position. Reset button Go button... -
Page 15: Fault Conditions And Display Codes
The decapper will have to be replaced or 11mm decapper leaves caps hanging repaired. on vials Jaws are worn or broken. Please go in Contact with BGB Analytik. Find contact details on www.bgb-shop.com Motor does not come on or moves in Contact BGB Analytik.
