Summary of Contents for BIOPAC Systems, Inc. BioNomadix Logger

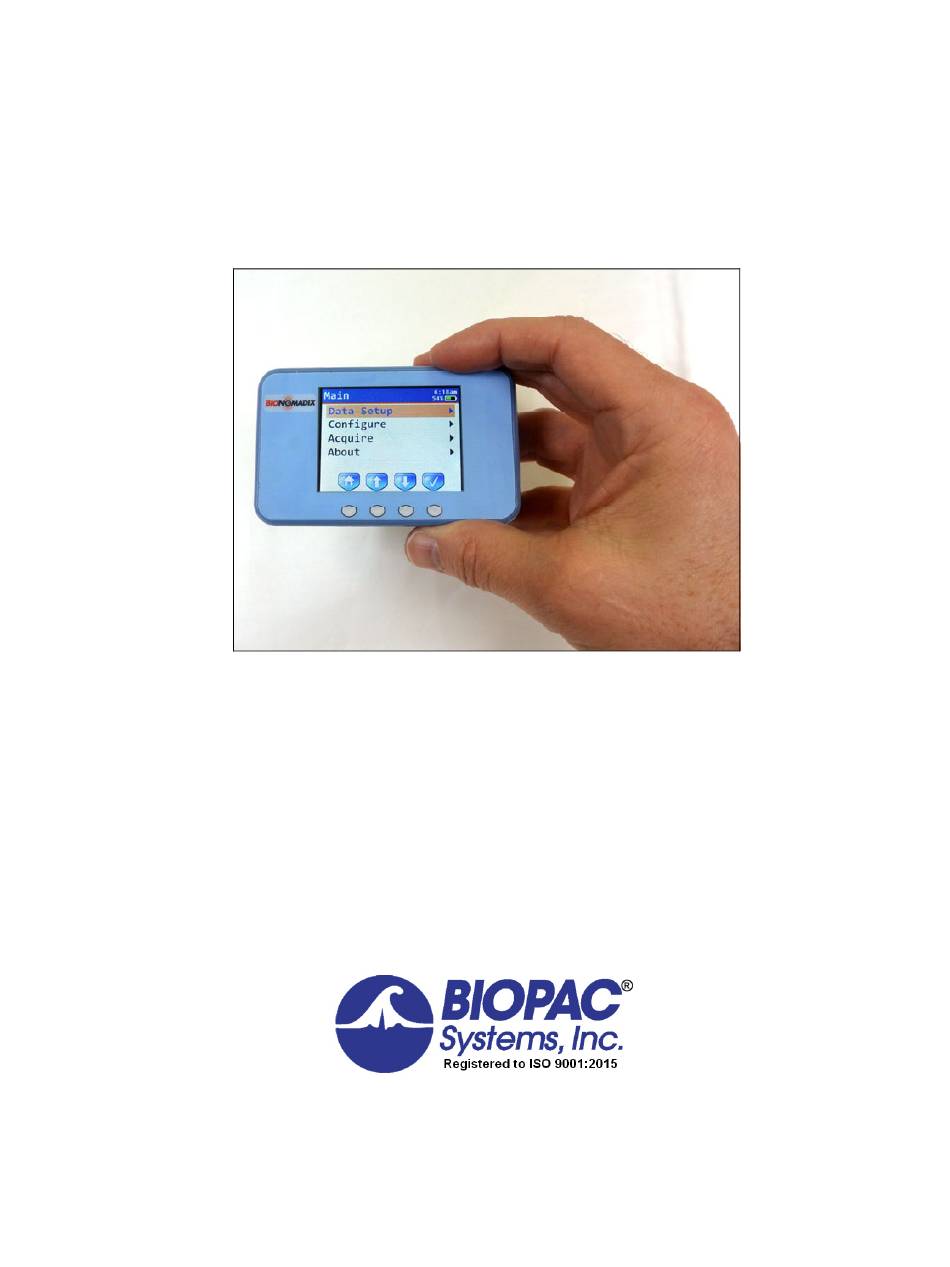

- Page 1 Doc90.v3 ™ BioNomadix Logger User Manual Wearable Data Logging System for use with BioNomadix Transmitters and AcqKnowledge Software For Life Science Research Applications 42 Aero Camino, Goleta, CA 93117 Tel (805) 685-0066, Fax (805) 685-0067...
-
Page 2: Table Of Contents
ABLE OF ONTENTS System Overview .....................................3 How to Use This Manual................................3 What is the BioNomadix Logger? ............................3 BioNomadix Logger vs. Standard BioNomadix Transmitter-Receiver Pairs................3 Included Components................................3 Logger Battery..................................3 Logger Interface and Button Controls ............................4 Button Icons .....................................4 Charging and Powering on the Logger.............................4 Sleep Mode and Automatic Power-Off ............................5... -
Page 3: System Overview
AcqKnowledge software for data import. The specifications and diagrams are intended to assist you in understanding the capabilities of the BioNomadix Logger system. This document is not intended as a service manual. Only authorized BIOPAC employees and representatives are qualified to repair any component of the system. -
Page 4: Logger Interface And Button Controls
BioNomadix Logger™ User Guide Page 4 of 28 The Logger battery is integrated internally and is not user replaceable. For battery replacement, contact BIOPAC. To store the Logger for long periods of time, fully charge the battery using the AC charger and power off the Logger to improve long-term battery performance. -
Page 5: Sleep Mode And Automatic Power-Off
Page 5 of 28 BIOPAC Systems, Inc. Sleep Mode and Automatic Power-Off To conserve battery power, the Logger screen will automatically dim and go into a “sleep” mode if no button activity is initiated for a period of 30 seconds. To wake the Logger, press any button and the most-recently used Logger screen will be displayed. -
Page 6: Summary Screen Status And Warnings
BioNomadix Logger™ User Guide Page 6 of 28 Data Setup Menu Available Description Available Settings Options Tap Time The maximum amount of time a tap input must 1.25-15 ms, in 1.25 ms be above the Tap Threshold in order to qualify increments. -
Page 7: Using The Internal Accelerometer
Page 7 of 28 BIOPAC Systems, Inc. If an error occurs, the following warnings are displayed in red text in the bottom half of the Summary screen: Warning Description “RF Failure!” Problem with the Logger radio. Try another Logger RF channel or contact BIOPAC Support. “Low Battery!”... -
Page 8: Tap Mode
BioNomadix Logger™ User Guide Page 8 of 28 Tap Mode The accelerometer options include “Tap Mode” settings which enable haptic (tapping) feedback to the Logger unit. Tap Mode is useful when a subject needs to interact with the unit but does not have direct access to the screen buttons, such as when the Logger unit is inside a shirt pocket. -
Page 9: Accelerometer Assisted Synchronization
Page 9 of 28 BIOPAC Systems, Inc. Accelerometer Assisted Synchronization The Logger can be precisely synchronized with the eye tracking scene camera via the following method. Start the eye tracking and physiology recording. Place the Logger in view of the scene camera and quickly tap the Logger three times. The internal accelerometer will record the impact and you can later easily identify the onset of the impact in both the physiology data and the video from the scene camera. -
Page 10: Unpairing The Logger From A Bionomadix Transmitter
BioNomadix Logger™ User Guide Page 10 of 28 2. Turn the transmitter off and then back on (or wait two minutes). 3. Power on logger (if off). The transmitter will then be able to communicate with the logger. Unpairing the Logger from a BioNomadix Transmitter 1. -
Page 11: Previewing Data
Page 11 of 28 BIOPAC Systems, Inc. Data Setup Available Description Available Settings Function Options Notch Filter Select notch filter setting Off, 60 Hz, 50 Hz CH2 1 Hz HP Select CH2 high pass filter setting Off/On CH2 35 Hz LP Select CH2 low pass filter setting Off/On CH2 Mode... -
Page 12: Starting An Acquisition Manually
BioNomadix Logger™ User Guide Page 12 of 28 Starting an Acquisition Manually button. 1. In the Main Menu, scroll to “Acquire” and press the “Select” 2. Make sure the Scheduler option is set to “Off.” 3. After setting the desired Duration (recording length), scroll up to the “Start” option and press the “Select”... -
Page 13: Preflight Setting
Page 13 of 28 BIOPAC Systems, Inc. Preflight Setting The Preflight setting automatically wakes the Logger unit from sleep prior to the start of a scheduled acquisition. (Preflight options are 2, 5, 8, or 15 minutes.) When enabled, the Preflight screen displays a countdown timer to the acquisition start time, along with Summary information screen showing transmitter status. -
Page 14: Checking For Rf Interference During An Acquisition
Loggers. If a transmitter is paired to both a BioNomadix Logger and a BioNomadix Smart Center, note that only one of these units should be powered on at a time. To use the paired transmitters with a Logger, the Smart Center should be disconnected from the computer. -
Page 15: Placing Event Markers During An Acquisition
Page 15 of 28 BIOPAC Systems, Inc. Placing Event Markers during an Acquisition After starting a Logger acquisition, the button icons on the “Acquire” screen will change appearance to allow for the insertion of event markers. Event markers are useful for noting a particular point of interest in the data which can be examined in greater detail after the logged data is imported into AcqKnowledge. -
Page 16: Setting The Date And Time
BioNomadix Logger™ User Guide Page 16 of 28 Configure Available Description Function Options Indicates if Daylight Savings Time is being used. If the DST adjustment is set to Manual, use the button to change DST to “ON” or “OFF.” Adjust DST Choose between automatic Daylight Savings Time adjustment for USA and Europe (see below), or disable to adjust DST manually. -
Page 17: Time Zone Adjustment
Page 17 of 28 BIOPAC Systems, Inc. 6. Use the “+” button to advance the numbers to the current date (both numbers may need to be advanced). 7. Use the right-arrow button to advance to the year field. 8. Use the “+” button to advance the numbers to the current year (both numbers may need to be advanced). 9. -
Page 18: Daylight Savings Time Adjustment
BioNomadix Logger™ User Guide Page 18 of 28 Daylight Savings Time Adjustment The Logger can be set to adjust automatically to Daylight Saving Time for your region. Please note the following information before enabling this feature: When using the Daylight Savings Time adjustment for the Logger, the Time Zone should be set to the Standard time for your time zone regardless of the day of the year. -
Page 19: Configuring The Microphone
Page 19 of 28 BIOPAC Systems, Inc. Configuring the Microphone Use the following steps to configure the Microphone settings used for recording Audio Notes during acquisition. (The default Microphone settings are normally adequate for most purposes.) 1. In the Main screen, press the down-arrow button and scroll down to the “Configure”... -
Page 20: Common "Options" Shortcut
Using Transmitters with the BioNomadix Logger and Receivers Some transmitters may be paired with both a receiver for use with an MP160/150 as well as a BioNomadix Logger. When these transmitters are powered on, they will first search for any paired Logger. If no paired Logger is found, they will search for a paired receiver. -
Page 21: Importing Logged Data Into Acqknowledge
1. Connect the Logger to a computer USB port using the provided cable. The Logger will appear as an additional disk drive on your computer. 2. Launch AcqKnowledge and select “BioNomadix Logger” in the Startup Wizard. 3. Select “Import Logs” and click OK to bring up the AcqKnowledge “Log Import” window. -
Page 22: Acqknowledge Menu Logger Options
Logger to be imported into AcqKnowledge. See following page for full description. Configure BioNomadix Logger Alarms – This option is used to set up an alarm cue to appear on the Logger screen at a preset time during an acquisition. See page 23 for a description of User Alarms. -
Page 23: Import Logs From Disk Option
Logger acquisition screen. Multiple user alarms for multiple or repeated activities can be set up quickly, and accessed via the initial Logger import palette, or the “Configure BioNomadix Logger Alarms” MP menu item. Available Options: Time –... -
Page 24: Setting Up A User Alarm
Delete All – Clears all alarms from the list. Setting Up a User Alarm 1. Access the BioNomadix Alarms dialog by choosing “Set Alarms” in the BioNomadix Logger import palette (this appears immediately after connecting the Logger to the computer), or in AcqKnowledge via the MP menu item “Configure BioNomadix User Alarms.”... -
Page 25: Supported Transmitter Data
STRIKE Heel/toe strike DYNEMG Hand dynamometer + EMG GONIO Dual goniometer input Builtin ACCL Built-in data Logger tri-axis accelerometer BioNomadix Logger Specifications Weight: 121.2 g Dimensions: 9.42 cm x 5.76 cm x 2.3 cm Screen: Color, 6 cm diagonal Memory:... -
Page 26: Logger Troubleshooting
Logger displays the pairing screen. If the pairing screen does not appear, the transmitter firmware may be out of date. Firmware 4.0 or higher is required to use a transmitter with the BioNomadix Logger. This is shown on the serial label of the transmitter. Older transmitters must be returned to BIOPAC for updates before they can be used with the Logger. - Page 27 Page 27 of 28 BIOPAC Systems, Inc. If the computer only has USB 3, try connecting a powered USB 2.0 hub directly to the computer and then plug the Logger into the hub. Q: When the Logger is disconnected from the computer, the computer displays a warning “The disk was not ejected properly”...
-
Page 28: Intended Use
This warranty shall also be voidable by BIOPAC or its licensed distributors If (1) BIOPAC reasonably believes that the BioNomadix Logger™ system has been used in a manner that would violate the terms and conditions of a separate end user license agreement for system software; or (2) the product is used with products not sold or licensed by BIOPAC.
