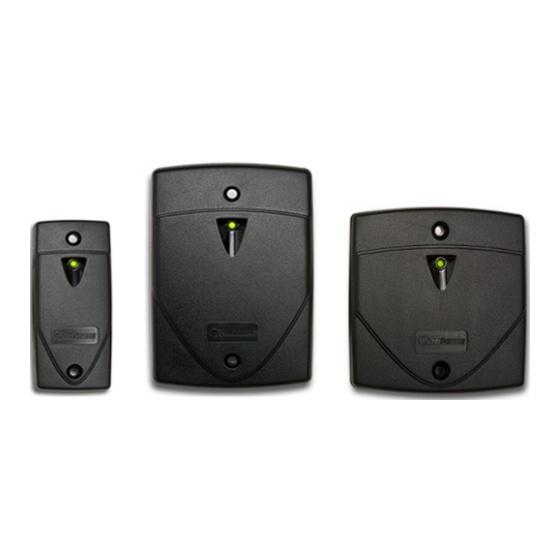

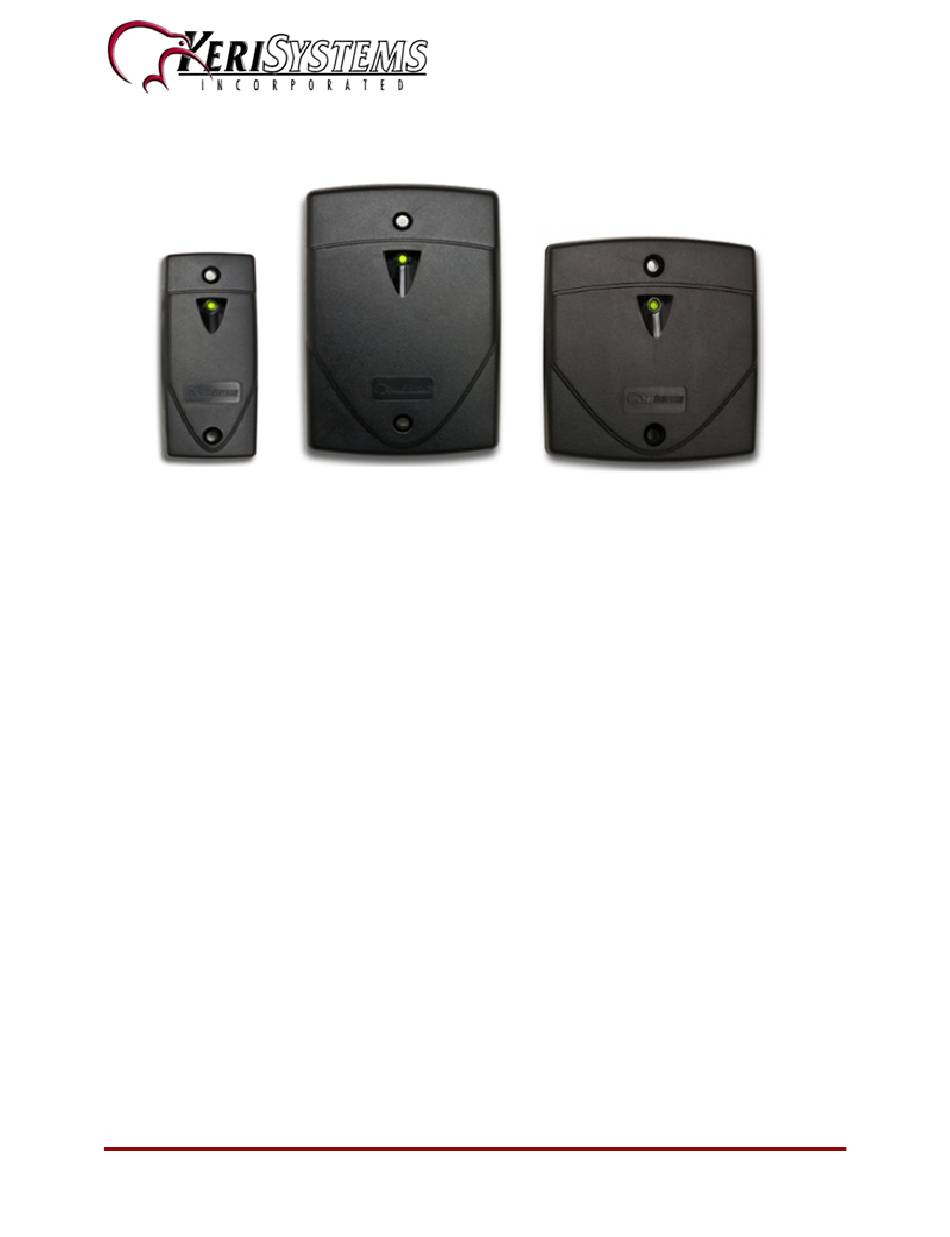

NXT Reader Setup
NXT Readers are used exclusively with Keri's revolutionary access control system
based on the NXT and the MSC Series of IP-based Controllers. Communication to the
readers is via the controller's RS-485 buses, enabling the data to be encrypted and
allowing the readers to be fully supervised - reader events will be generated in the event
of reader failure or disconnection
- (these reader 'offline' events can be setup as 'alerts' in the software).
Another NXT reader benefit is the fact you can add an NXT Exit reader (supported with
the NXT-MSC controllers). The Exit reader is added to the same bus as the standard
NXT reader but provides you with true In/Out reader capability without burning an addi-
tional reader port. Even though the readers are wired into the same bus they show as
independent readers within Doors.NET allowing you to control 4 x read IN and 4 x read
OUT doors with a 4-door controller.
The RS-485 communication method also allows for a maximum cable run distance of
1,000 feet (approx. 300m) from the controller. The readers are compatible with all NXT
Series cards and tags plus the readers can now be configured to read HID 125KHz cre-
dentials via a quick firmware upgrade which can be easily performed from the software.
This guide explains how to connect the readers to the controller, how to perform a firm-
ware upgrade, program the reader to read HID credentials and how to add and use an
NXT Exit reader.
P/N: 01999-001 - Rev L
Page 1 of 14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Keri Systems NXT
Summary of Contents for Keri Systems NXT
- Page 1 - (these reader 'offline' events can be setup as 'alerts' in the software). Another NXT reader benefit is the fact you can add an NXT Exit reader (supported with the NXT-MSC controllers). The Exit reader is added to the same bus as the standard NXT reader but provides you with true In/Out reader capability without burning an addi- tional reader port.
-
Page 2: Nxt Reader Wiring To The Controller
NXT Reader Setup NXT Reader Wiring to the Controller NOTE: The recommended cable type is shielded, stranded, 4-conductor, (Belden 9534, or equivalent) or shielded CAT-5. Wiring when using CAT-5 Cable Setting the Manufacturer Model Once the reader has been connected to the controller then the controller will start to com- municate to it automatically. -
Page 3: Upgrading The Nxt Reader Firmware
3. Locate and select the NXT reader by expanding the controller bus. 4. Once selected, the reader properties will be displayed on the right. 5. Verify the correct NXT reader model is selected for the Manufacturer Model. Upgrading the NXT Reader Firmware Keri NXT readers are now flash upgradable and Doors.NET version 3.5.1.22 includes a... - Page 4 2. Highlight a standard NXT controller. 3. Click the Firmware Upgrade icon. 4. The firmware upgrade window will appear and the NXT controller will be high- lighted. 5. Click the expander (plus sign) located to the left of the controller, and you will see listed the NXT readers which are connected to the controller.
- Page 5 10. If you are happy to proceed click the YES button. 11. The new firmware will be sent to each of the NXT readers connected to the con- troller (one-after-the-other). 12. While a reader is being upgraded the reader's LED will be quickly flashing. Each reader should take no longer than 30 seconds to update.
- Page 6 DO NOT attempt to update the NXT readers on more than one NXT con- troller at a time. 14. Once complete, the new firmware version will be displaying for all the NXT readers connected to the controller. 15. You can now close down the firmware upgrade window as the readers are now ready for use.
- Page 7 5. Ensure you have Advanced View enabled for the hardware properties. 6. Expand an NXT-MSC controller via a double-click. 7. Expand the controller bus (which has an NXT reader connected to it). 8. Highlight the NXT reader. 9. At the top of the reader properties you will see the reader's current firmware ver- sion.
- Page 8 WARNING: Do not attempt to update a second NXT reader until the first upgrade is com- pleted. The NXT-MSC hardware does not support multiple concurrent firmware upgrades to connected devices. You must upgrade the NXT readers one-at-a-time.
-
Page 9: Nxt Exit Readers
With an NXT Exit reader you can control two individual doors but with a reader for both entry and egress. Each reader, although they activate the same lock relay, they are treated independently in the Doors.NET software (such as for access groups and events... - Page 10 NXT Reader Setup The Process for Adding an NXT Exit reader is as follows: 1. Open the LicenseManager.exe program in the folder where your instance of Door- s.NET is installed (typically in the C:\Keri\DoorsNET folder). 2. Click the License tab and scroll through the list of license values until you locate “Enable NXT Exit Reader”.
- Page 11 Click this icon and you will see the following message. 7. Click Yes to the above message and an NXT Exit reader will be added to the bus in the hardware tree.
- Page 12 NXT Reader Setup 8. Highlight the new reader in the hardware tree and in the properties, give it a description. 9. The reader will be automatically configured as the exit reader for that bus. 10. A valid card read at each of the readers will activate the same strike relay but the reader locations in Live Events will be different.
- Page 13 NXT Reader Setup 13. You can also run a report that includes both the readers, should you wish to. P/N: 01999-001 - Rev L Page 13 of 14...
- Page 14 Fax:+ 44 (0) 1763 274 106 Web: www.kerisys.com Web: www.kerisystems.co.uk E-mail: sales@kerisys.com E-mail: sales@kerisystems.co.uk techsupport@kerisys.com tech-support@kerisystems.co.uk Keri Systems YouTube Channel - Keri YouTube Channel Keri Systems Knowledge Base Website - Keri Knowledge Base End of document. P/N: 01999-001 - Rev L Page 14 of 14...
