Part Numbers: CRNEMAFX001A00, CRNEMAFX002A00,
SAFETY CONSIDERATIONS
Installation and servicing of air-conditioning equipment can
be hazardous due to system pressure and electrical compo-
nents. Only trained and qualified service personnel should in-
stall, repair, or service air-conditioning equipment.
Untrained personnel can perform basic maintenance func-
tions such as changing bulbs. All other operations should be
performed by trained service personnel. When working on air-
conditioning equipment, observe precautions in the literature,
tags and labels attached to the unit or accessory, and other safe-
ty precautions that may apply.
Follow all safety codes. Wear safety glasses and work
gloves.
Before installing accessory or performing maintenance or
service on accessory, turn off main power switch to unit.
Electrical shock can cause injury or death. There may be
more than one disconnect switch.
Never expose eyes or skin to ultra-violet light from any
source. After installation, provide an interlock to turn off
germicidal lamps when access door is opened. Lamp must
be off before entering HVAC unit to perform maintenance
or service. Personal injury may result.
UNIT
48/50HJ004-014,48/50TJ004-014
50HJQ004-012
48/50EJ,EK,EW,EY024-068
48/50HJ015-025, 50HJQ014,016,
48/50TJ016-028
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
PC 111
Book 1 1 1 4 4 4
Tab 1a 1b 5a 5a 6a 6b

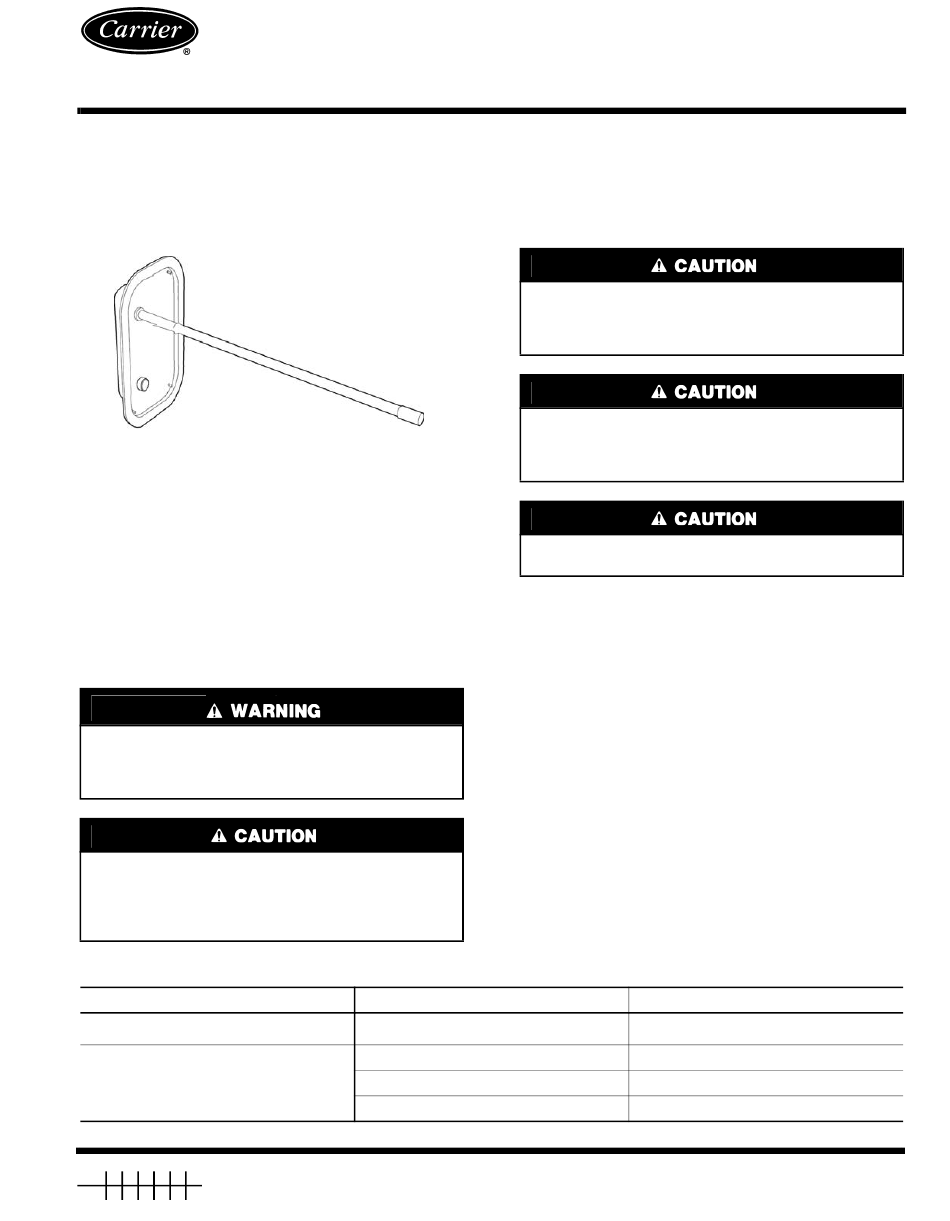

Accessory Ultra-Violet Germicidal Lamps
Installation Instructions
CRNEMAFX003A00
PACKAGE USAGE
ELECTRICAL CHARACTERISTICS
208/230 V, 70-85 W, 50/60 Hz
115 V, 70-85 W, 50/60 Hz
208/230 V, 70-85 W, 50/60 Hz
277 V, 70-85 W, 50/60 Hz
Catalog No. 534-734
Printed in U.S.A.
Single Package Rooftop Units
Use only specified high-output, low temperature bulbs with
this accessory. Use of a lower wattage or incorrect bulb can
result in damage to accessory or bulb. Correct bulbs have a
blue end cap.
Do not touch emitter glass without gloves. Damage to bulb
may result. Oil from fingerprints will permanently etch
glass of bulb and weaken structure. Clean bulb after
handling.
Bulb contains a small quantity of mercury. If a bulb breaks,
clean and dispose with care.
GENERAL
Carrier's commercial rooftop ultra-violet germicidal lamps
are designed to kill odor causing mold and fungus that may de-
velop in the wet evaporator section of an HVAC unit. The high
output, low temperature germicidal lamps are installed in the
evaporator section of the HVAC unit, and are pointed directly
at the evaporator coil and condensate pan. The short wave
length ultra-violet band light inhibits and kills mold, fungus,
and microbial growth.
The Carrier germicidal lamps have been specifically de-
signed and optimized for 40 to 45 F, high-humidity operation in
a moving airstream inside an HVAC unit. The Carrier germi-
cidal lamps have output ratings at 45 F in a 400 fpm airflow of
2
120 microwatts/cm
at a 1 meter range.
Form 48/50-51SI
Pg 1
50/60 Hz
PART NUMBER
CRNEMAFX002A00
CRNEMAFX001A00
CRNEMAFX002A00
CRNEMAFX003A00
4-99
Replaces: New
Advertisement
Table of Contents
Summary of Contents for Carrier CRNEMAFX001A00
- Page 1 40 to 45 F, high-humidity operation in more than one disconnect switch. a moving airstream inside an HVAC unit. The Carrier germi- cidal lamps have output ratings at 45 F in a 400 fpm airflow of 120 microwatts/cm at a 1 meter range.
-
Page 2: Installation
1. Turn off all power to unit. warnings about exposure to ultra-violet light. 2. Install reflective material (field-supplied) in installa- A pushbutton door interlock switch (Carrier Part tion location if desired. Reflecting ultra-violet light HR54ZA101) is required on all hinged access panels. - Page 3 38.50 TYP. BULB 5.00 NOTE: TYP. 1. Unless otherwise specified all dimensions are to out- side of part. 34.00 2. On size 038-048 units, use 4 bulbs spaced at 34.00''. On size 054-068 units, use 5 bulbs spaced at 34.00''. 3.
- Page 4 NOTE: Dimensions are in inches. Fig. 4 — Germicidal Lamps Installation Location — 48/50HJ,TJ008-014 and 50HJQ008-012 Units NOTE: Dimensions are in inches. 9. Drill 1-in. holes in unit where marked. Fig. 5 — Accessory Dimensions...
- Page 5 10. Use field-supplied no. 10 self-drilling screws to attach ously from power source. Lamps should not be accessory to unit. connected to indoor fan power source or any power source where they would be cycled more than twice NOTE: Holes can be drilled in unit if self-drilling per day.
- Page 6 UVC ACCESSORY UVC DISCONNECT OUTDOOR SWITCH AIR HOOD 10-12" Fig. 7 — Disconnect Location — 48/50HJ,TJ015-028 Units and 50HJQ014 and 016 Units 1.25 FLAT PATTERN NOTE: 0.25 1. Unless otherwise specified 0.25 all dimensions are to outside of part. 2. Dimensions are in inches. 0.25 1.62 1.62...
- Page 7 1-in. holes are used for electrical connections and the warnings about exposure to ultra-violet light. germicidal bulb. See Fig. 5. A pushbutton door interlock switch (Carrier Part No. 9. Drill 1-in. holes where marked. HR54ZA101) is required on all hinged access panels.
- Page 8 Repeat for all accessory germicidal lamps. There may Installation (48/50HJ,TJ004-014 Units be 3, 4, or 5 lamps required. 50HJQ004-012 Units) — Perform the following proce- dure to install the germicidal lamp: Install a standard 4 x 4 junction box in the unit near the disconnect switch.
- Page 9 See Table 1 for wiring recommendations. Use UVC warnings about exposure to ultra-violet light. resistant wire, outdoor duty, 14-gage ROMEX cable or A pushbutton door interlock switch (Carrier Part No. 1/2-in. conduit for all wiring. Wire power, neutral, and HR54ZA101) is required on all hinged access panels.
-
Page 10: Maintenance
NOTE: If door interlock switch is used, black power The following bulbs can safely be used with this accessory: lead will be connected to the door interlock switch wir- • CRSGLTUB001A00 (16-in. tube) ing (not to the disconnect switch). • CRSGLTUB002A00 (20-in. tube) 11. -
Page 11: Side View
0.5" .22" 0.5" 0.875" 1.09 .53" .17" 1.45" 1.125" 3.25 SIDE VIEW FRONT VIEW NOTES: 1. Use 18 gage galvanized steel. 2. Dimensions are in inches. Fig. 17 — Field-Fabricated Door NOTE: Dimensions are in inches. Interlock Switch Bracket Details Fig. - Page 12 Copyright 1999 Carrier Corporation Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. PC 111 Catalog No. 534-734 Printed in U.S.A. Form 48/50-51SI Pg 12 4-99 Replaces: New Book 1 1 1 4 4 4...
