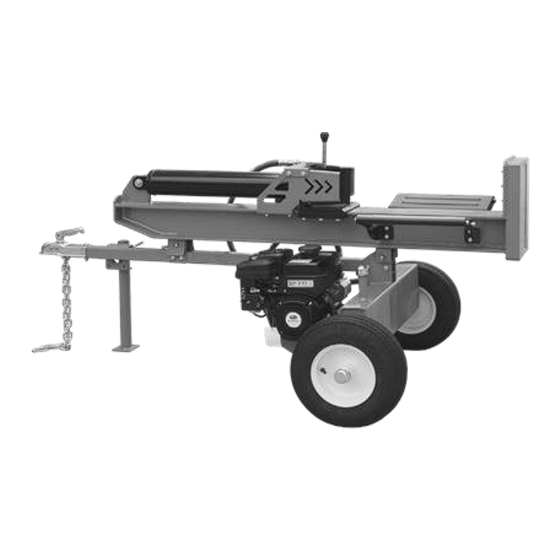

MODEL NO. TW-LS-25T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TW-LS-25T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Timberwolf TW-LS-25T

  • Page 1 Owner’s Manual ASSEMBLY & OPERATING INSTRUCTIONS MODEL NO. TW-LS-25T...
  • Page 2 To The Owner Thank You! Thank you for purchasing our 25T Timberwolf Log Splitter. It was carefully engineered to provide excellent performance when properly operated and maintained. Please read this entire manual prior to operating the equipment. It instructs you how to safely and easily set up, operate and maintain your machine.
  • Page 3: Table Of Contents

    Table of Contents Page(s) Important Safety Information........................1-10 General Safety Alert Signals ....................... Safety Decals ..........................Safety Symbols ........................... Training ............................Pre-operation ..........................Operation ............................. Operator Zone..........................Maintenance Safety........................Fire Prevention ........................... Towing Safety ..........................Assembly & Set-up Instructions ....................... 11-22 Unpacking the Container......................
  • Page 4: Important Safety Information

    WARNING: Read and thoroughly understand all instructions in this manual and on safety decals before assembling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. As with all power equipment, a log splitter can be dangerous if assembled or used improperly.
  • Page 5: Safety Decals

    SAFETY dDECsaALS SAFETY DECALS Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals. Contact us for replacement decals. SAFETY SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.
  • Page 6: Safety Symbols

    SAFETY dDECsaALS SAFETY DECALS Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals. Contact us for replacement decals. SAFETY SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.
  • Page 7: Training

    TRAINING 1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts. 2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly. 3.
  • Page 8: Pre-Operation

    PRE-OPERATION 1. BEFORE operating this log splitter, make sure that you wear safety gear such as goggles or safety glasses, steel toed shoes and tight fitting gloves (without loose cuffs or draw strings). Always wear a protective hearing device when operating this log splitter. 2.
  • Page 9: Operation

    OPERATION 1. BEFORE starting this machine, review the safety instructions in the manual. Failure to follow these rules may result in serious injury to the operator or bystanders. 2. NEVER leave this machine unattended with the engine running. 3. DO NOT operate machine while under the influence of alcohol, drugs, or medication. 4.
  • Page 10: Operator Zone

    OPERATOR ZONE ONLY operate the log splitter from the operator zone as shown in the diagrams below. The operator has the safest and most efficient access to the control valve and the beam in this location. Operating the log splitter in another location can result in serious injury or death.
  • Page 11: Maintenance Safety

    MAINTENANCE SAFETY Stop the engine, disconnect the spark plug and ground it against the engine before cleaning, or inspecting the machine. NEVER perform any service or repair on your log splitter without first removing the spark plug wire. Stop the engine and relieve hydraulic system pressure by cycling the valve control lever from forward to reverse several times while engine is not running.
  • Page 12: Fire Prevention

    FIRE PREVENTION VENTION 1. ALWAYS take a Class B fire extinguisher with you when operating this log splitter in dry areas. 2. NEVER operate your log splitter near a flame or spark or smoke during operation. Extinguish all cigarettes, cigars, pipes, and other sources of ignition.
  • Page 13: Towing Safety

    TOWING SAFETY NEVER carry any cargo or wood on your log splitter. 2. NEVER allow anyone to sit or ride on your log splitter. 3. ALWAYS turn the fuel shut off valve on the engine to the “OFF” position before towing the log splitter. Failure to do so may result in flooding the engine.
  • Page 14: Assembly & Set-Up Instructions

    ASSEMBLY & SET-UP INSTRUCTIONS UNPACKING THE CONTAINER WARNING! Use extreme caution unpacking this machine. Some components are very heavy and will require additional people or mechanical handling equipment. NOTE: All references in this manual to the left or right side and front or back of the log splitter are from the operating position only.
  • Page 15 Step 2: Remove all loose parts included in the container, e.g. wheels and hardware box. Step 3: Use scissors or a knife to cut and remove the straps securing the parts to the beam or tank assembly, including tongue assembly and log tray assemblies, and put aside these parts for assembly. NOTE: DO NOT remove the strap securing the hydraulic hoses assemblies to the beam at this time, until you do the assembly procedure of the hoses.
  • Page 16: Assembling

    ASSEMBLY & SET-UP INSTRUCTIONS ASSEMBLING NOTE: Due to the weight / size of the log splitter, it’s recommended that two or more adults be present to assist with the assembling. Some lifting tools such as hoist, crane, jack, etc. are recommended too. Assembling tools needed: 1.
  • Page 17 STEP 2: Install the two wheels. See FIGURE 5. 1. Raise the reservoir tank assembly off the ground on some blocks before mounting. Remove the plastic shipping caps from the wheels and position the wheels onto the wheel axels. 2. Screw the castle nuts onto the axels and tighten with an adjustable wrench to seat the bearings. Then back the castle nuts off one half turn and snug them up to the bearings by hand, so they line up with the hole in the axel.
  • Page 18 STEP 3: Install the engine / pump assembly to the engine mount plate on the reservoir assembly. See FIGURE 6. 1. Insert a vibration isolator between the engine and the mount plate at each of the four mounting hole positions. 2.
  • Page 19 STEP 4: Install the beam assembly. See FIGURE 7. Stand the beam upright on a flat level. Two or more people are recommended to assist with raising and lowering the beam as it is very heavy. Have a helper support the beam as you perform the following steps. Be sure to keep hands away from any possible pinch points.
  • Page 20 STEP 5: Connect hydraulic hoses. See FIGURE 8. There are three hydraulic hoses listed below, each of them has one end fixed on the log splitter by manufacturer, and the other open end still needs to be attached. The hoses are labelled on the ends for easy installation. labelled as ①, comes from the bottom of the reservoir (Note: some items may have this hose in 1.
  • Page 21 STEP 6: Install the log tray assemblies. See FIGURE 9. Lower the beam to horizontal position. Please refer to “Beam Operating Positions” section in Page 23. Position the log tray frames onto the beam as shown below and secures with the M10 hardware loosely. Tighten the M10 hardware using a 16mm wrench on the bolts, and a 17mm wrench on the lock nuts (FIGURE 9) REF.
  • Page 22 STEP 7: Assemble the control handle. See FIGURE 10. The control handle is shipped hanging from the valve on the handle link. Remove the clevis pin and bow-tie cotter pin from the valve. 2. Rotate the control handle up into the operating position and secure with the clevis pin and cotter pin just removed. (FIGURE10) Page 19...
  • Page 23: Set-Up

    ASSEMBLY & SET-UP INSTRUCTIONS Fuel and Oil Fill-Up Service the engine with petrol and engine oil as instructed in the engine manual packed with your log splitter. Read the instructions carefully. WARNING! Use extreme care when handling petrol. Petrol is extremely flammable and the vapours are explosive.
  • Page 24 Fill hydraulic oil The log splitter is shipped without hydraulic fluid in the reservoir. Fill the reservoir before your initial use. 1. Remove the vented reservoir dipstick, which is located next to the engine on top of the reservoir tank. See FIGURE 13.
  • Page 25: Know Controls & Features

    Know Controls and Features Cylinder Control Handle Splitting Wedge Tongue Log Dislodger Log Tray End Plate Flip-down Horizontal Stand Beam Lock (FIGURE14) NOTE: This Operator’s Manual covers several models. Log splitter features may vary by model. Not all features in this manual are applicable to all log splitter models and the log splitter depicted may differ from yours.
  • Page 26: Operating Instructions

    OPERATION INSTRUCTIONS STARTING & STOPPING THE ENGINE Refer to the Engine Operator’s manual packed with your log splitter for instructions on starting and stopping the engine. 1. Place the log splitter on flat, dry, solid ground. 2. Block both wheels to prevent your log splitter from moving during operation.
  • Page 27: Using Control Handle

    OPERATION INSTRUCTIONS The control handle has three positions. See FIGURE 17. (FIGURE 17) • FORWARD — To split wood. Move the control handle to the FORWARD position to move wedge toward the log to split. NOTE: The control handle will return to the NEUTRAL position as soon as the handle is released during FORWARD process, and the wedge stops moving forward.
  • Page 28: Splitting The Wood

    OPERATION INSTRUCTIONS 1. Start the engine as instructed in the Engine Operator’s manual included with the log splitter. 2. Grasp the log on the sides and place it on top of the beam against the end plate. Always split the wood in the direction of the grain.
  • Page 29: Transporting The Log Splitter

    OPERATION INSTRUCTIONS TRANSPORTING THE LOG SPLITTER 1. Lower the beam to its horizontal position. Make certain the beam is locked securely with the horizontal beam lock. 2. Pivot the flip-down stand up to transporting position. 1) Pull out the lock handle of the stand and rotate it up. The stand will be secured horizontally with the tongue automatically.
  • Page 30: Maintenance & Adjustments

    MAINTENANCE & ADJUSTMENTS Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer’s owner’s manual for maintenance procedures. WARNING! Do not make any adjustments without first stopping the engine, disconnecting the spark plug wire and grounding it against the engine.
  • Page 31 (FIGURE20) (FIGURE21) 6. Refill the reservoir tank (Please follow the steps in Page 21 to fill the tank, and repel the air in the tank). 7. Maintain the fluid level within the range specified on the dipstick at all times. See FIGURE 21. NOTE: When checking the fluid, always make sure to push the dipstick all the way down to make sure you are getting an accurate reading.
  • Page 32: Troubleshooting

    TROUBLESHOOTING Most problems are easy to fix. Consult the trouble shooting Table below for common problems and their solutions. If you continue to experience problems, contact us for support. If the machine should start making an unusual noise or vibration, shut down the engine, wait 5 minutes for machine to cool down, then inspect for damage.
  • Page 33: Specifications

    SPECIFICATIONS Model TW-LS-25T Engine Briggs and Stratton 6.5hp 4 stroke engine Pump Two-Stage, 11 gpm Cylinder (Bore x Stroke) 4 in. x22.6 in. Maximum Splitting Force 25 Tons* Hydraulic Pressure 3650 psi* Maximum Log Length 24 in. or 600mm Wedge Height...
  • Page 34: Exploded Diagram & Parts List

    EXPLODED DIAGRAM & PARTS LIST Page 31...
  • Page 35 REF # PART # PART NAME SPECIFICATIONS QTY PER UNIT 310-658 Beam incl. End Plate 25 Ton Beam 10-10-8 310-346 incl. End Plate 30 Ton Beam incl. 10-12-8 310-471 End Plate 35 Ton Splitting Wedge 12-12-10 530-421 w/ Guides 25 Ton Guide12 530-423 Splitting Wedge w/ Guides 30 / 35 Ton...
  • Page 36 REF # PART # PART NAME SPECIFICATIONS QTY PER UNIT 750-617 Flat Washer ZP, 5/16 REF # PART # PART NAME SPECIFICATIONS QTY PER UNIT 750-844 Spring Washer ZP, 5/16 770-123 Engine Shaft Square Key 3/16 X 1.75 (25 / 30T) 770-125 Engine Shaft Square Key 1/4 X 2.165 (35T)
  • Page 37 320-948 Log Tray Frame (FL, BR) 720-120 Lock Nut ZP, M10 750-525 Flat Washer ZP, M10 710-556 Hex Head Bolt ZP, M10*45 (8.8) 710-520 Hex Head Bolt ZP, M10*25 (8.8) 750-525 Flat Washer ZP, M10 720-120 Lock Nut ZP, M10 320-926 Log Dislodger (R) 320-927...
  • Page 38: Packing List

    PACKING LIST SAFETY dDECsaALS SAFETY DECALS Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals. Contact us for replacement decals. SAFETY SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.
  • Page 39: Warranty Service Information

    SPECIFICATIONS WARRANTY Bigger Boyz Toyz offer a 1 year parts warranty on all products used for domestic use from the date of purchase. For all commercial use a 3 months parts warranty period applies, unless specified in the item listing. All conditions below are based upon the product being faulty or not performing as described.
