Summary of Contents for ICT ND-500G

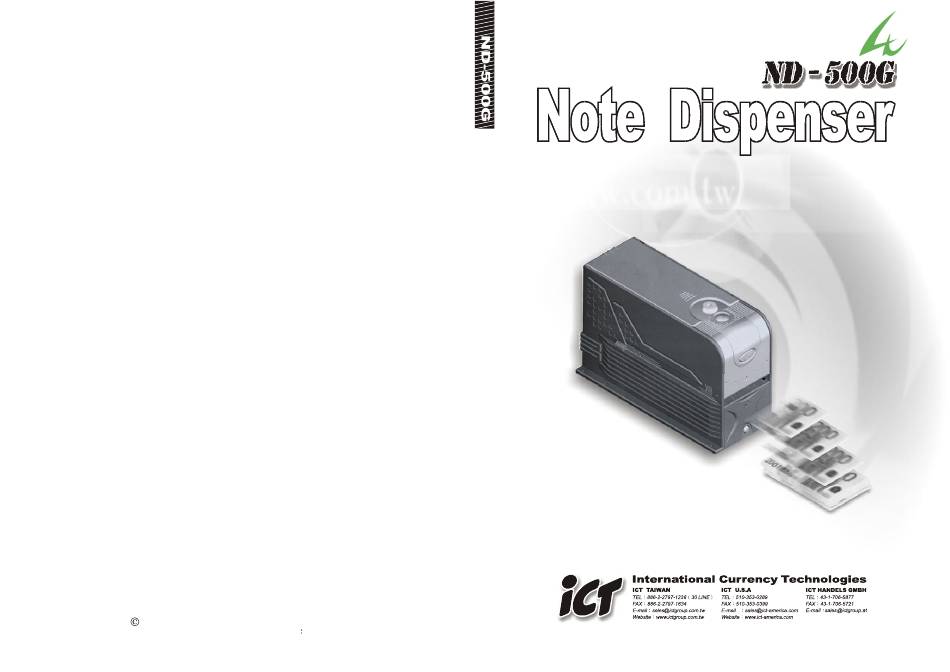

- Page 1 Operation Manual 2003 International Currency Technologies Corporation Vol. 4.0 Part Number H4552C...
-
Page 3: Table Of Contents
How to fill the notes ........4 How to adjust width and length ....6 How to adjust thickness the dispenser bezel........... 8 ND-500G function setting ......10 ( 1). DIP Switch Settings ......10 (2). Front LED Status ........10 (3). Front Button ........10 (4). -
Page 4: General Specifications
ND - 500G General Specifications (1) Applicable Note Size : 60mm ~ 85mm (Width) 100mm ~ 175mm (Length) 0.1mm ~ 0.2mm (Thickness) (2) Note Capacity : Approx.500 notes (3) Voltage : 12VDC + 10% (4) Power Consumption : 0.15A 0.75A standby peak (5) Note Dispensing Time : Approx. -
Page 5: How To Fill The Notes
ND - 500G ND - 500G How to fill the notes How to fill the notes 1. Unlock the top cover of the Note Dispenser using the key, as shown Unlock Lock in the picture. Top cover 2. Take out the note pressure plate and fill the notes in. 3. -
Page 6: How To Adjust Width And Length
ND - 500G ND - 500G How to adjust the width and length How to adjust the width and length 67.8 [26.7"] 61.6 [24.3"] Use the note partition board 1 to adjust the length and note 52.8 [20.8"] partition board 2 to adjust the width, as shown in the picture. Note partition board 1 Note partition board 2 Unit : mm [inch]... -
Page 7: How To Adjust Thickness The
ND - 500G ND - 500G How to adjust thickness the dispenser bezel How to adjust thickness the dispenser bezel Before using this note dispenser, please make sure the correct thickness 1. Take off the front cover as shown in figure 1. level has been adjusted , so the notes can be dispensed smoothly. -
Page 8: Nd-500G Function Setting
ND - 500G ND - 500G ND-500G function setting 4. Note Dispensing Mode (1) Pulse Mode : When the Note Dispenser receives enough pulses 1. Dipswitch Setting ( set by Dipsw 4~6) it will dispense one note. Machine number (2) Hopper Mode : The Note Dispenser will begin to dispense notes... -
Page 9: Rs-232 Command / Response List
0X0B 0XBD [0x06] : The length in payout too short [0x07] : Sensor problem [0x08] : Checksum error If the note dispensing process 1 bill and fails ,ND-500G will reply as follow. Data Data code 1 byte Dispense count Machine Number... -
Page 10: Timing Chart
After request command user needs to poll the machine status by yourself. Machine Number Cmd/Status Data CheckSum 0x01 0x10 0x01 0x11 0X00 0X23 If the note dispensing process is successful ,ND-500G will reply as follow. Machine Number Cmd/Status Data CheckSum 0x01 0x01 0x01 0xAA 0X01 0XAE If the note dispensing process fails ,ND-500G will reply as follow. - Page 11 ND - 500G ND - 500G - 16 - - 17 -...
- Page 12 ND - 500G - 18...
