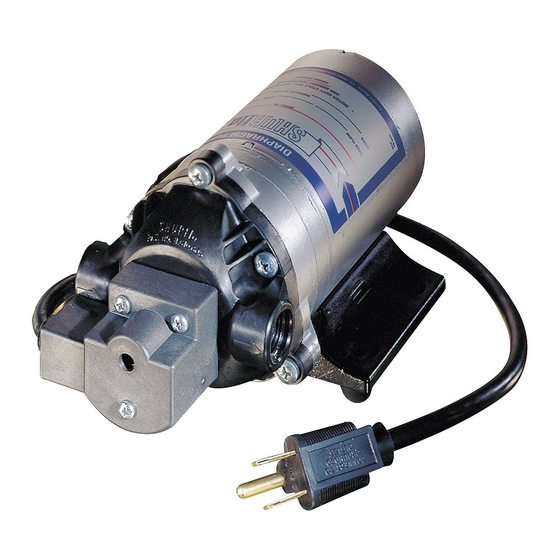

SHURflo 8025-933-399 Installation And Operation Manual

INLET/OUTLET FITTINGS: 3/8" [9.5 mm] Barb Fittings

PUMP SPECS

Model Number 8025-933-399
Motor Design 115 VAC 60 Hz permanent magnet; thermally protected and a non-replaceable integral fuse
Duty Cycle
Intermittent (max. run time 20 min. within one hour)
Turn-On/Off Pressure 70 PSI [4.8 bar] / 90 PSI [6.2 bar]
Max. inlet pressure
30 psi [2 bar]
Check Valve
Internal (prevent reverse flow)
Temp. Limits
34 º - 170 º F [1.1 º - 49 º C]
Pump materials
EPDM valves, Santoprene diaphragm, Nylon hosing

TANK SPECS

MINI
Total Volume (air/liquid)
21 Oz. [ 0.62 lt]
90 psi pump
10 Oz. [ 0.3 lt]
*Approx. Draw
Down Vol.
60 psi pump
5.6 Oz. [ 0.17 lt]
Bladder Material:
Butyl
Housing Material
Glass Filled Nylon
* Draw down volume varies with tank pre-charge, pump operating pressure and city water pressure. Specs reflect
tests at 40 psi [2.7 bar] pre-charge w/20 psi [1.3 bar] city water pressure.

WATER BOOST SYSTEM LIMITED WARRANTY

SHURflo Water Boost Systems are warranted to be free of defects in material and workmanship under normal use,
for a period of one (1) year from the date of manufacture, or one (1) year of use, with proof of purchase. This
limited warranty will not exceed two (2) years, in any event.
The limited warranty will not apply to Water Boost Systems that were improperly installed, misapplied, or
incompatible with fluids or components not manufactured by SHURflo. Water Boost System failure due to foreign
debris is not covered under the terms of this limited warranty. SHURflo will not warrant any Water Boost System
which is damaged or modified outside the SHURflo factory.
Returns are to be shipped postage prepaid to either service center; SHURflo Garden Grove, CA or Elkhart, IN.
SHURflo shall not be liable for freight damage incurred during shipping, package returns carefully.
For complete warranty details consult S/B # 1049.
ISO Certified Facility
SHURflo reserves the right to update specifications, prices, or make substitutions.
SHURflo
5900 Katella Ave.
Cypress, CA 90630
(800) 854-3218 (562) 795-5200
FAX (562) 795-7564
Shipping/UPS: 5900 Katella Ave Bldg. B 264-2169
Cypress, CA 90630
911-462 Rev.K 8/06 ECO 12790
8025-933-236
40 PSI [2.8 bar] / 60 PSI [4.1 bar]
MEDIUM MAXI
2 gal [7.6 lt] 5 gal. [18.9 lt.]
123 Oz. [3.6 lt.] 307 Oz. [9.0 lt.]
68 Oz. [2 lt.] 171.5 Oz. [5.1lt.]
Butyl Butyl
Stainless Steel Epoxy coated steel
SHURflo East SHURflo Ltd.
52748 Park Six Court, Unit 5 Sterling Park, Gatwick Road,
Elkhart, IN 46514-5427 Crawley, West Sussex, RH10 2QT
((800) 762-8094 United Kingdom
(574) 262-0478 +44 1293 424000
FAX +44 1293 421880
© 2006 Printed in USA
WATER BOOST SYSTEMS
INSTALLATION AND OPERATION MANUAL
WARNING: "Risk of electrical shock." The pump is supplied with a grounding connector and grounding-type
attachment plug. To reduce the risk of electrical shock, be certain that it is connected only to a
properly grounded, grounding-type receptacle. To prevent electrical shock, disconnect power
before initiating any work. In the case of pump failure, the motor housing and/or the pumped fluid
may carry high voltage to components normally considered safe.
CAUTION: DO NOT adjust the pump pressure switch setting. Switch setting will not significantly alter flow
rate or pressure. Improper adjustment may cause severe overload or premature failure, not covered
under warranty.
CAUTION: DO NOT operate the pump at pressures, which cause the motor to exceed the amperes rating
indicated on the nameplate. The pump is equipped with thermal breakers to interrupt operation
due to excessive heat.
automatically reset, and the pump will start operation without warning. The motor is equipped
with an integral non-serviceable fuse. Pumps which have an "open" fuse are not covered under
the limited warranty.

ACCUMULATOR STORAGE/FLOW-RATES

SHURflo Water Boost Systems are for applications when low, fluctuating, or no water pressure exists. The
pump and accumulator maintain consistent water pressure to a source (for a given duration) as long as incoming
water is sufficient. Depending upon the Water Boost System model, support of up to 4 non-carbonated valves in
moderate volume accounts is achievable. The pump pressurizes the accumulator to 60 psi. or 90 psi. [4/6 bar],
depending on the pump model. Consult the models flowchart for projected length of flow and/or back-up. Maxi
Boost Systems may be used to supply water to a carbonator for back-up, during short periods of insufficient
water pressure. The pump is NSF, UL and C-UL listed.

INSTALLATION

CAUTION: DO NOT pre-charge the accumulator with CO 2. In the event of failure carbonated water will react
with brass components in system equipment.
CAUTION: a qualified electrician, in accordance with all local electrical codes should perform all Electrical
outlet (receptacle) wiring connections.
requirements. Failure to provide proper circuit protection may result in a motor failure, which is not covered
under warranty.
1. The water booster system is to be installed between the water source and non-carbonated valve(s) or
carbonator. Turn off city water supply before installation.
2. Use NSF listed high pressure braided 3/8" ID [9.5 mm] tubing to connect the inlet/outlet ports. Secured all
tubing connections with SS, step-less Oetiker clamps. Cable-tie all tubing securely to prevent kinks or sags
that can inhibit performance or cause damage to the pump.
4 of 4 911-462 Rev. K 8/06 ECO 12790
Once the temperature of the motor is within proper limits it will
Circuit protection is dependent on the individual application
1 of 4
