SYNTEC
6A Controller Hardware Specifications
Description:
The Syntec 6A Series Controllers are based on embedded systems architectures and are
equipped with 8-inch LCD displays and universal text key panels. The systems come with
integrated servo axes, spindles, and hand wheels. USB ports are also available on the front
panel. This series provides high stability, ease of use, and high reliability at a low price.
General Specifications:
●3-axis servo positioning and control
●Universal text key panel
●1 spindle DA (+/-10V), including one Encoder
●Dedicated matrix scan port on the operation panel
●1 dedicated hand wheel axis, including 7 IN signals
●2 USB ports are provided on the front panel, supporting hot swapping
●16 Direct Input points
●Adapter ( 100~240V AC 50/60Hz ) included
●16 Direct Output points
●Operating ambient temperature 55°C

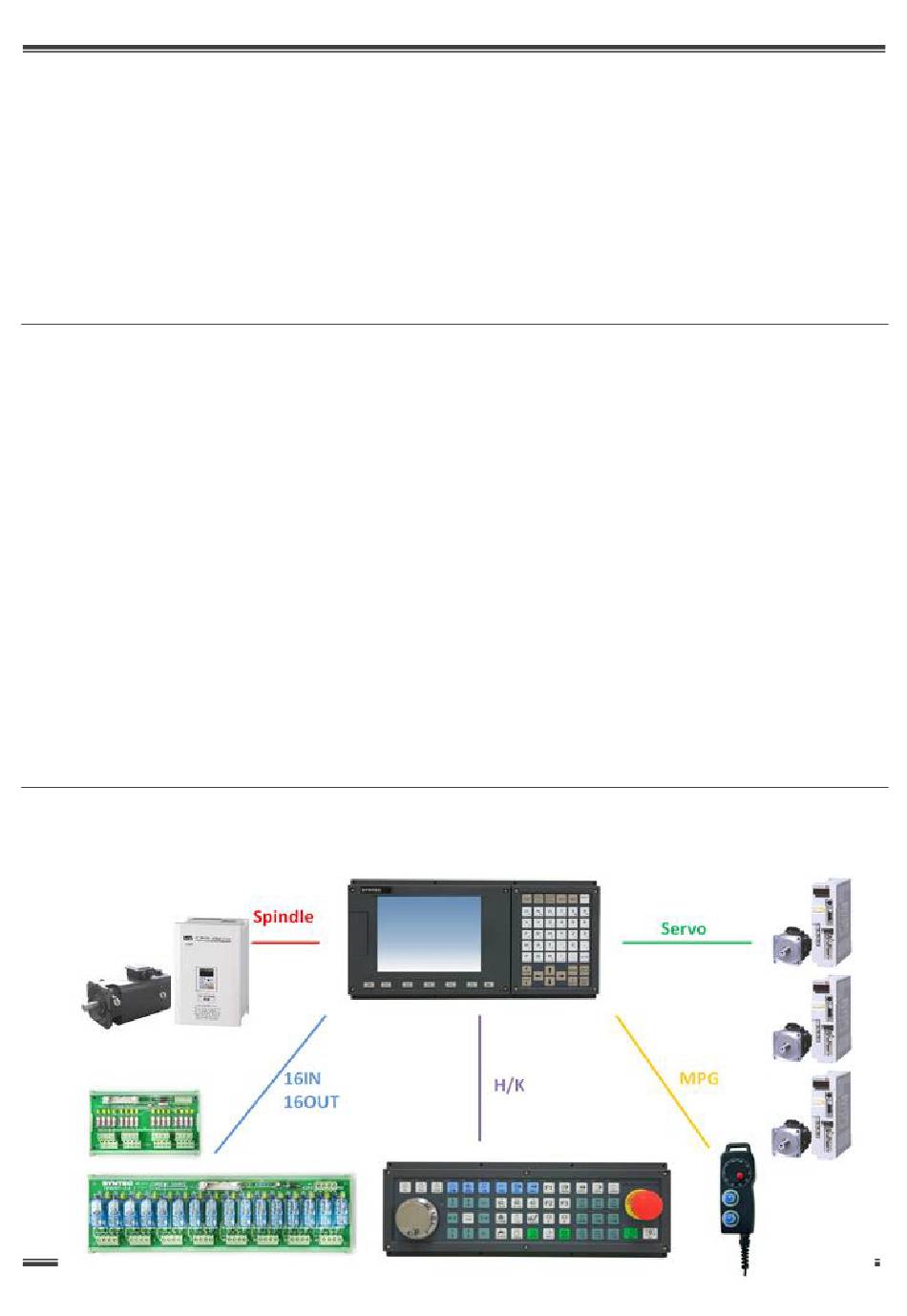

System Roadmap:
- 1 -
This document is only for Engineering Department

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Syntec instruments 6A Series

  • Page 1 6A Controller Hardware Specifications Description: The Syntec 6A Series Controllers are based on embedded systems architectures and are equipped with 8-inch LCD displays and universal text key panels. The systems come with integrated servo axes, spindles, and hand wheels. USB ports are also available on the front panel.
  • Page 2: Mechanical Specifications

    SYNTEC 6A Controller Hardware Specifications Mechanical Specifications: ◆ ◆ 6A-4012-T2 Structural Dimensions Diagram - 2 - This document is only for Engineering Department...
  • Page 3 SYNTEC 6A Controller Hardware Specifications ◆ ◆ 6A-4012-M Structural Dimensions Diagram - 3 - This document is only for Engineering Department...
  • Page 4 SYNTEC 6A Controller Hardware Specifications ◆ ◆ 6A-4018-M2 Structural Dimensions Diagram - 4 - This document is only for Engineering Department...
  • Page 5 SYNTEC 6A Controller Hardware Specifications ◆ ◆ 6A-4018-T3 Structural Dimensions Diagram - 5 - This document is only for Engineering Department...
  • Page 6: Connector Pindefine

    SYNTEC 6A Controller Hardware Specifications Connector Pindefine: External Input Interface (X1): The controller itself provides a total of 16 I digital input signals to use with the MLC. Direct connections can be made to various types of test and sensor devices (such as proximity switches, micro switches, etc..) for use with the TB16IN, thereby simplifying wiring.
  • Page 7 SYNTEC 6A Controller Hardware Specifications module specifications Supports SOURCE TB16IN-PHO and SINK Supports TB16IN SOURCE External Output Interface (Y1): Direct connections can be made to various driving switches (such as electromagnetic contactors, relays, etc.) for use with TB16OUT, thereby simplifying wiring. Signal Signal Output 7...
  • Page 8 SYNTEC 6A Controller Hardware Specifications wires, which you are welcome to take advantage of. ●If you do not wish to use TB16-OUT, you can also connect your own wires. ●Standard wire lengths: 1.8M 3.5M 5.5M 8M. ●Output terminal block module (TB16-OUT) support information: Terminal Wiring specifications block module...
  • Page 9 SYNTEC 6A Controller Hardware Specifications line, Scan, and Indicator portions, as shown in the three blocks in the interface circuit below: Internal circuit Internal circuit Internal circuit ●Please note that the VEXT and GND power source wirings can only withstand voltages within the 5VDC ±10% range.
  • Page 10: Servo Driver

    SYNTEC 6A Controller Hardware Specifications P1~P3 SERVO DRIVER 1:A+ 2:A- 3:B+ 4:B- 5:C+ 6:C- 7:ALM+ ALM+ 8:ALM- ALM- 9:SER-ON SER-ON SYNTEC 6A 10:SER-CLR SER-CLR 11:CW+ SERVO MOTOR 12:CW- 13:CCW+ CCW+ 14:CCW- CCW- 15OUT-COM Servo axis P-COMMAND wiring schematic diagram: We recommended that you check that the ALM+ and ALM- signal wires are properly connected before operating the machine.
  • Page 11 SYNTEC 6A Controller Hardware Specifications Pin Signal Pin Signal Pin Signal 1 MPG_A+ 6 MPG_Z- 11 IN60 2 MPG_A- 7 IN56 12 IN61 3 MPG_B+ 8 IN57 13 IN62 4 MPG_B- 9 IN58 14 GND 5 MPG_Z+ 10 IN59 15 VCC(+5V) Line driver MPG hand wheel wiring schematic diagram (Future Life EHDW-(E~F)SERIES) 1:A+ 2:A-...
  • Page 12 SYNTEC 6A Controller Hardware Specifications Open collector MPG Hand Wheel Wiring Schematic Diagram (Future Life EHDW-B(A~C)SERIES) 1:A+ 2:A- 3:B+ 4:B- 7:XDI56 7:AXIS 1 8:XDI57 8:AXIS 2 9:XDI58 9:AXIS 3 SYNTEC 6A 10:XDI59 10:AXIS 4 11:XDI60 11:RATE*1 12:XDI61 12:RATE*10 13:XDI62 13:RATE*100 14:GND 2:DC0V 15:VCC(+5V)
  • Page 13 SYNTEC 6A Controller Hardware Specifications Spindle Interface + Encoder (SP) Spindle Commands (Spindle) Pin Signal Pin Signal Pin Signal 1 SP_FWD (O46) 1 A+ 9 DA+ 2 SP_REV (O47) 2 A- 10 DA- 3 SP_COM 3 B+ 11 SP_FWD (O46) 4 -- 4 B- 12 SP_REV (O47)
  • Page 14: Ethernet Port

    SYNTEC 6A Controller Hardware Specifications ETHERNET Port The 6A Series controllers are equipped with a 10/100 BASE network communications port, allowing you to access data files stored remotely. - 14 - This document is only for Engineering Department...
