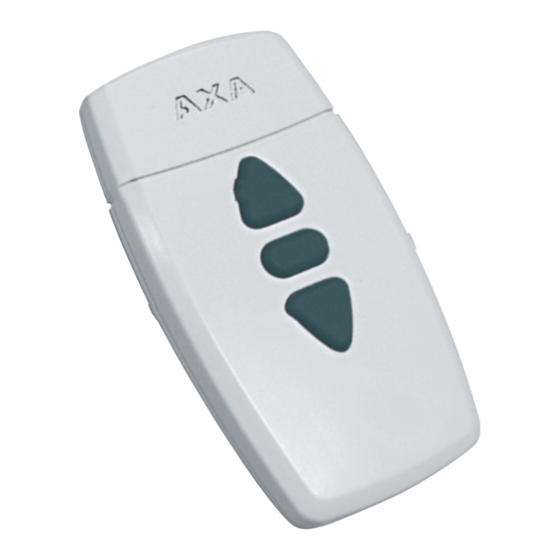

Summary of Contents for AXA Remote

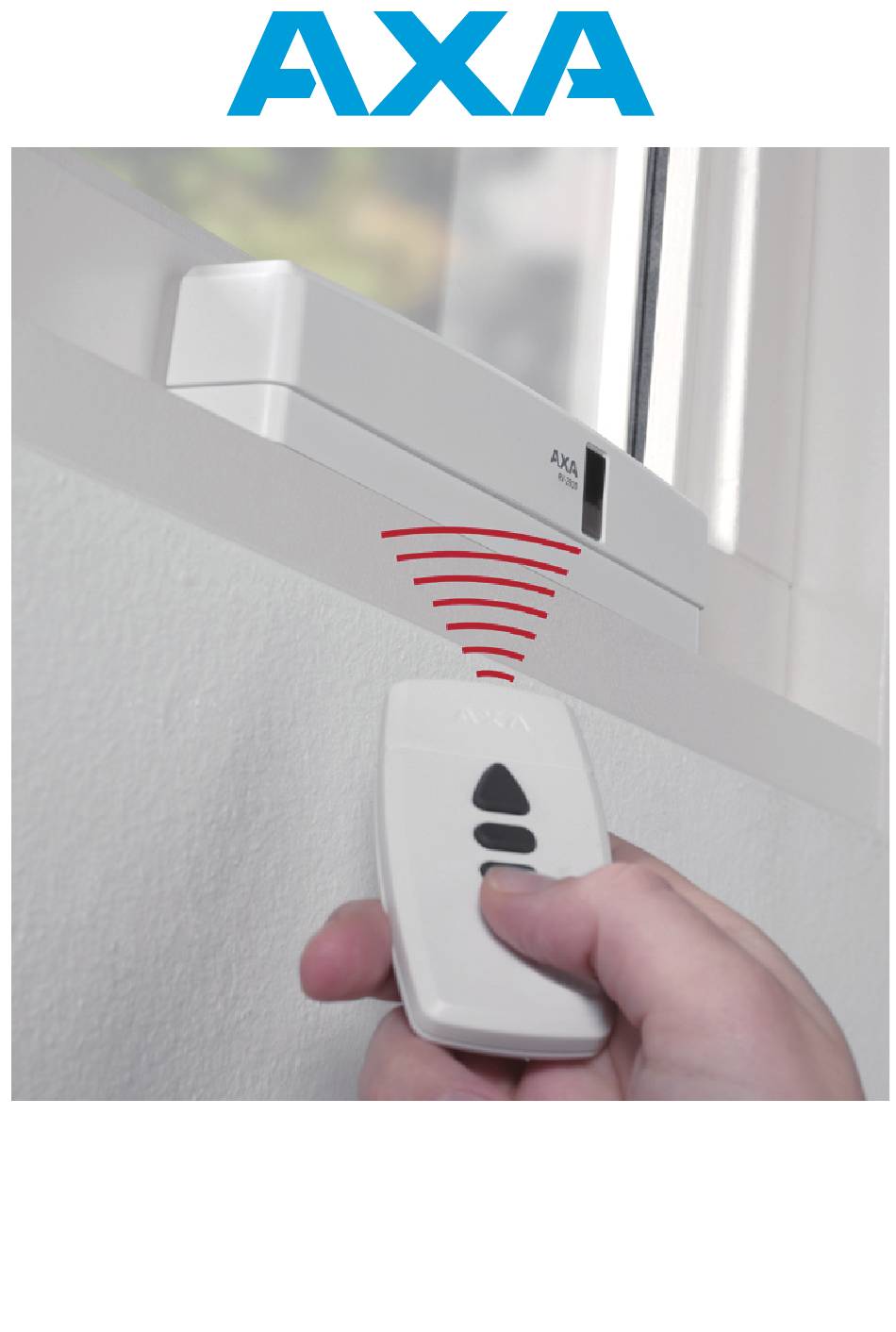

- Page 1 Quick start manual AXA Remote...
- Page 2 Remark; This mounting manual describes in short the mounting of the AXA Remote Ventilation Suitable for: Skylights and other top hung outward turning windows. 285 mm Windowsize: 100x100 cm (bxh) minimum size: 30x30 cm (bxh) 45 mm 29mm Mounting place:...
- Page 3 Open Stop Close Take off the cover...
- Page 4 Put in the batteries and activate the unit with the remote control...
- Page 5 Press open and let the chain come out of the unit Determine and mark the middle of the window...
- Page 6 Place the drilling jig !! place the V groove of the jig on the marked center of the window...
- Page 7 fix the drilling jig (predrill Ø 3 mm) TIP! Use the Quick Windowfix (art. nr.2009-02- 96K) or a screw to close the window, drill a pilot hole 3mm Use for fixing the drilling jig screws 4 x 30 mm...
- Page 8 Predrill through the hole of the drilling jig the holes for the mounting plates drill Ø 3 mm...
- Page 9 Then remove the jig drill Ø 3 mm...
- Page 10 Mount the window plate Size screws 4,5 x 40 mm...
- Page 11 When using an electric drill do the last (screw)rotations by hand! Remove any obstacles on the window frame...
- Page 12 Mount the sliding block !! Check whether the screw on the slidingblock is If not adjust 2 mm Size srews 5 x 60 mm...
- Page 13 Slide the unit over the sliding block Place the chain in the windowplate...
- Page 14 Use the drilling jig to place the unit parallel on the window TIP! The drilling jig can be placed on the hook on the left side of the unit...
- Page 15 Close the window with the remote control • Make sure that the unit is parallel on the window, press the unit towards the window! • The unit must close with a clear click and the led light has to lite up for a brief...
- Page 16 Check whether the unit works When the led light keeps on flashing, the unit has not closed properly and the unit needs to be slightly adjusted, see 19...
- Page 17 Adjust the unit use the allen key When there When the is too much unit is too tight movement on the turn the allen key window you must clockwise turn the allen key counterclockwise Make small turns and check the functioning everytime until the optimal functioning is achieved.
- Page 18 Fasten the unit one screw on the left and one on the right. Size screws 4 x 30 mm...
- Page 19 Place the cover...
- Page 20 PO box 47, NL-3900 AA Veenendaal www.axa-hang-sluitwerk.nl...
