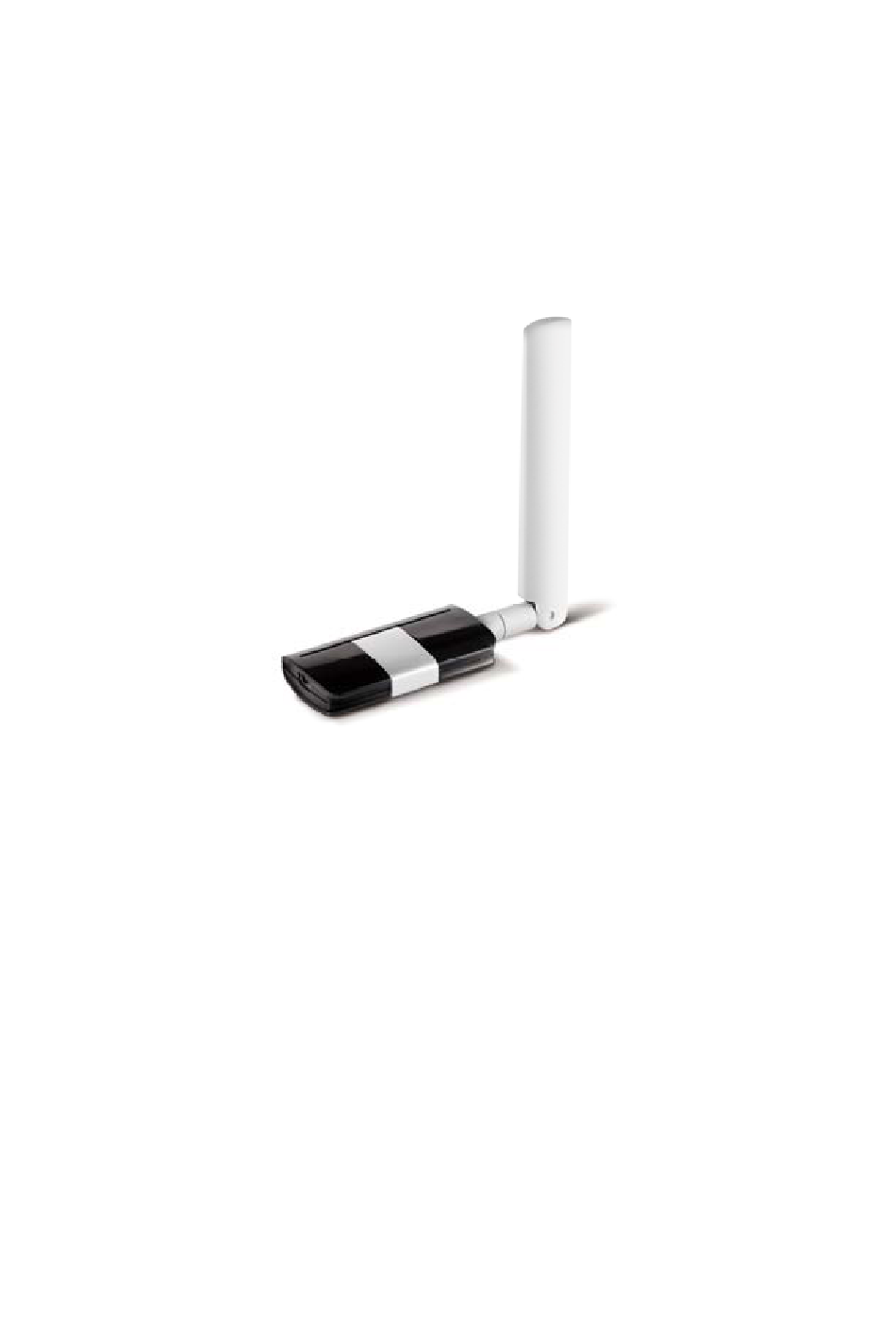

Aeromax WU1112 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WU1112
User Manual
Version: 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WU1112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aeromax WU1112

  • Page 1 WU1112 User Manual Version: 1.00...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1: Introduction ……………………………... 1 Features..............1 Application............1 Package Contents..........2 System Requirements........... 3 Chapter 2: Installation………………………..……3 Chapter 3: General Configuration……..…………9 3-1 Profile Management.………………………..9 3-2 Network Configuration Utility…………….… 11 3-3 Advanced Settings.……………………………14 3-4 Certificate Management………………………15 3-5 Wi-Fi Direct…………………………….……...

  • Page 3: Chapter 1 Introduction

    Supports WMM for seamless voice and video transmission Supports Windows XP, 2000, Vista & MAC etc. 1.2 Deployment WU1112 Wireless USB Adapter offers a fast, reliable and cost-effective solution for wireless access. Deployment as follows: 1. For company personnel who require wireless mobility and access to network anywhere in the organization.

  • Page 4: Package Contents

    1.3 Package Contents Please check the content of package for items described below: - One WU1112 - One CD-ROM If any of listed items are missing or damaged, please contact the reseller or distributor from whom you purchased for replacement...

  • Page 5: System Requirements

    1.4 System Requirements CPU : Pentium III 1G above or similar Memory size : 256MB RAM One CD-ROM Driver Hard Disk : At least 100MB available space One available USB 2.0 port (May not work on USB 1.1 port , and performance will be greatly reduced) Operation System : Windows 2000/XP/Vista/Win 7 ,Mac 10.4.x and above or Linux.
  • Page 6 “Found New Hardware” system dialogue appears, and selects “Cancel”. Insert the included CD-ROM into the CD-ROM drive of your computer, and the Welcome screen appears. (If not appear, double click the “Setup.exe” icon.)
  • Page 7 If there is no wireless USB adapter or incorrect connection, the following window will appear. Click “Yes” to connect the wireless USB adapter mentioned step 1. Click “Install driver and Ralink WLAN Utility”, and then click “next” to continue.
  • Page 8 Click “Ralink Configuration Tool” or Click “Microsoft Zero Configuration Tool”, and then click on “Next” to continue. Click “Install” to start the installation.
  • Page 9 During the installation, the following dialogue maybe appears. Click the “Continue Anyway” to continue. There is no security threat to your computer. Click “Finish” to complete the installation.
  • Page 10 10. Right-Click on the “R” button and select “Launch Config Utility” to start the software.

  • Page 11: Chapter 3: General Configuration

    Chapter 3 How to Use the Wireless Utility Interface (Client Mode) This Utility Interface is provides basic configuration functions to WU1112 Wireless USB Adapter management. If the UI does not appear automatically, please select from the CD to run the application.
  • Page 12 Add: Click "Add" below the Profile List. The "Add Profile" will appear. Specify a Profile Name. Select an AP from the SSID drop-down list. The AP list from the last Network.

  • Page 13: Network Configuration Utility

    Now the profile which the user set appears in the profile list. Click "Activate". Network The system will display the information of local APs from the last scan result as part of the Network section. The Listed information includes the SSID, MAC Address, Signal, Channel, Encryption algorithm, Authentication and Network type.
  • Page 14 Definition of each field : 1. SSID: Name of BSS or IBSS network. 2. Network Type: Network type in use, Infrastructure for BSS, Ad-Hoc for IBSS network. 3. Channel: Channel in use. 4. Wireless Mode: AP support wireless mode. It may support 802.11a, 802.11b, 802.11g or 802.11n wireless mode.
  • Page 15 Indicates 802.11g wireless mode. Indicates 802.11n wireless mode. Indicates that the AP list is sorted by SSID, Channel or Signal. Issues a rescan command to the wireless NIC to update information on the surrounding wireless network. Adds the selected AP to the Profile setting. It will bring up a profile page and save the user's setting to a new profile.

  • Page 16: Advanced Settings

    Advanced 1. Wireless mode: Select wireless mode. 2.4GHz, 5GHz and 2.4GHz+5GHz are supported. 2. Wireless Protection: Users can choose from Auto, On, and Off. (This is not supported by 802.11n adapters.) Auto: STA will dynamically change as AP announcement. The frames are always sent with protection. Off: The frames are always sent without protection.

  • Page 17: Certificate Management

    Certificate Management 1. Install Certificate : Need to install user certificate and issuer certificate for the authentication. 2. Icons and buttons : Indicates to browser the file. Indicates to install the certificate. Certificate List : Show all installed certificates. There are ordered property. Icons and buttons : Move up the selected certificate.

  • Page 18: Wi-Fi Direct

    Wi -Fi Direct Enable Wi-Fi Direct : 1. Need to double-click the notebook icon. 2. Specify the name of Wi-Fi Direct Device :...

  • Page 19: Appendix: Glossary

    3. Ralink UI is able to discover other WiFi Direct topologies nearby GO AP- like. GO with clients in the same group Set WPA2PSK AE S key configure WPS fo r GO...
  • Page 20 Appendix One : Glossary WLAN Wireless Local Area Network 802.11 A family of specifications developed by the IEEE for WLAN technology. 802.11a An extension to 802.11 WLAN standard that provides up to 54 Mbps transmission in the 5 GHz UNI radio band. 802.11b An extension to 802.11 WLAN standard that provides up to 11 Mbps transmission in the 2.4 GHz ISM radio band.
  • Page 21 over a WLAN that acts as a password when a mobile device tries to connect to the BSS. TCP/IP Transmission Control Protocol/Internet Protocol TKIP Temporal Key Integrity Protocol Wireless Distribution System Wired Equivalent Privacy. A security protocol for WLANs defined in the IEEE 802.11 standard. Wi-Fi Protected Access WPA2 Wi-Fi Protected Access 2.
  • Page 22 You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
