PBT325 Stereo Bluetooth Headset
1. About PBT325
The Bluetooth headset PBT325 allows you the freedom to make and receive calls while on the
move or in the office, after you connect the headset to a compatible phone that supports Bluetooth
wireless technology. PBT325 is a stylish design with metal casing and only 5.5mm thickness. It
applies dual microphones combined with latest CVC software to do echo and noise cancellation.
With additional earphone, you can also enjoy music transmitted by the mobile via Bluetooth.
Read this user guide carefully before using the headset. Read also the user guide for your phone,
which provides important safety and maintenance information.
2. Bluetooth wireless technology
Bluetooth wireless technology makes it possible to connect compatible communication devices
without using cables. A Bluetooth connection does not require that the phone and the headset be in
line of sight, but both devices should be within 10 meters (30feet) of each other. Connections can be
subject to interference from obstructions, such as walls or other electronic devices.
PBT325 is compliant with Bluetooth Specification v2.1 supporting Headset profiles 1.1 and
Hands-Free Profiles 1.5.
There may be restrictions on using Bluetooth technology in some locations .Check with your local
authorities or service provider.
3. Overview

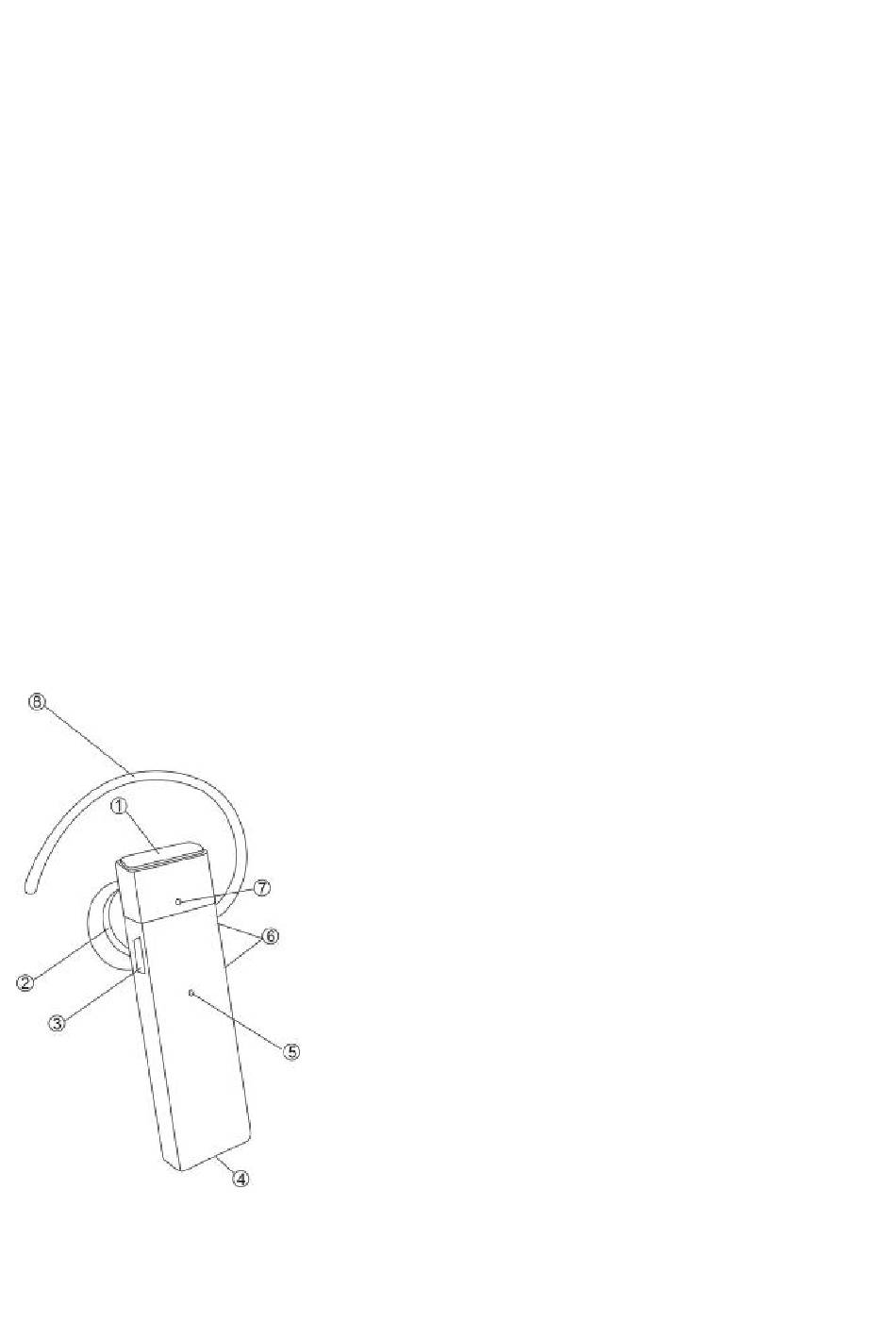

The headset contains the following parts as shown in the figure:
Before you start using the headset, you must charge the battery and pair the headset with a
compatible phone.
(1) Answer/end key
(2) Earphone
(3) Charging connector & earphone jack.
(4) Microphone 1
(5) Microphone 2
(6) Volume + and -
(7) LED Indicator
(8) Ear hook
Advertisement
Table of Contents
Related Manuals for Cyber Blue PBT325
Summary of Contents for Cyber Blue PBT325
- Page 1 PBT325 Stereo Bluetooth Headset 1. About PBT325 The Bluetooth headset PBT325 allows you the freedom to make and receive calls while on the move or in the office, after you connect the headset to a compatible phone that supports Bluetooth wireless technology.
- Page 2 This indicates that the headset needs to be charged as soon as possible. 5. Switch on or off the headset To switch on, when PBT325 is in off state, press and hold the answer/end key for 4 seconds until the blue indicator light turns on and keeps on for 3 seconds.
- Page 3 7.7 Listening to music Plug additional earphone to the charging & earphone jack, you can use PBT325 to enjoy the streaming stereo music transmitted from you compatible mobile with Bluetooth function. The mobile needs to support Bluetooth A2DP (Advanced Audio Distribution Profile).
- Page 4 and AVRCP (Audio Video Remote Control Profile). When there is incoming call, you will hear beep sound from the headset. The music will pause when you answer the call. After u finished the call, the music will follow to be streamed in a few seconds.
- Page 5 discharged hundreds of times, but it will eventually wear out. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time.
- Page 6 FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
