MT858 & MT8516
8ch and 16ch DVR
Quick Start Guide
1. Packing........................................P2
2. Hard Disk Installation.................P3
3. DVD-RW Installation....................P4
3. Front Panel Controls...................P5
4. Rear Panel Connectors...............P6
5. Live Operations...........................P8
6. Playback Operations.................P11
7. PTZ Operations.........................P12
Magtec MT858 and MT8516 – 8ch and 16ch DVR quick guide
Advertisement
Related Manuals for Magtec MT858
Summary of Contents for Magtec MT858
-

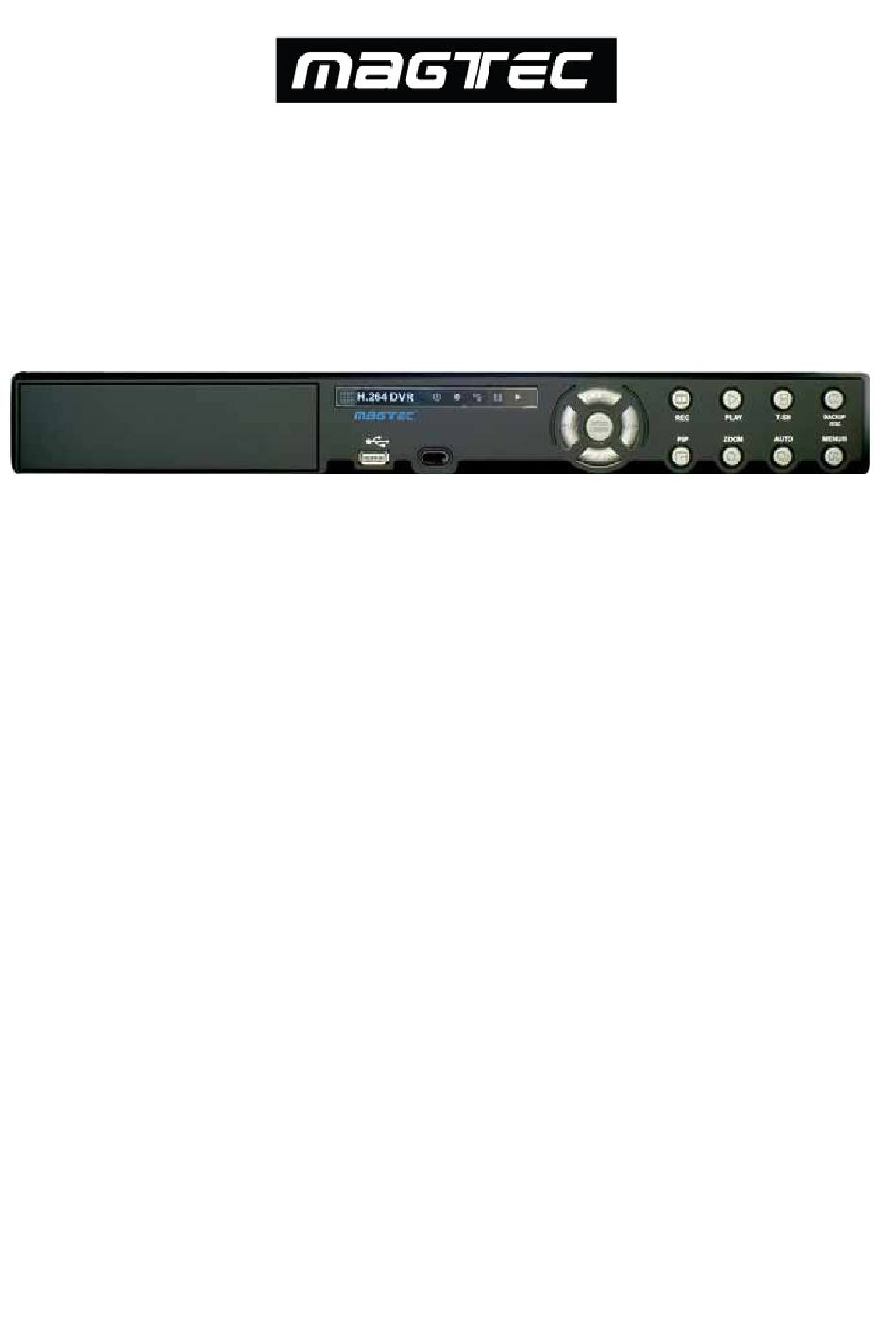

Page 1: Quick Start Guide
Quick Start Guide 1. Packing........P2 2. Hard Disk Installation....P3 3. DVD-RW Installation....P4 3. Front Panel Controls....P5 4. Rear Panel Connectors....P6 5. Live Operations......P8 6. Playback Operations....P11 7. PTZ Operations……....P12 Magtec MT858 and MT8516 – 8ch and 16ch DVR quick guide... - Page 2 9. Power Cord 10. DB25 Connecter ( 4CH / 8CH only) 11. SATA cord × 3 (16CH) SATA cord × 2 (4CH/8CH) Note: Standard shipping products do not include HDD Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.2...
- Page 3 Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual 4-9 System Tools for reference. Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.3...
- Page 4 Put the DVD-RW into the unit as indicated. Step 3: Put DVR bottom up, screw to fix the DVD-RW as indicated. Step 4: Connect the power and the flat cables as indicated. Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.4...
- Page 5 Port for USB external devices (USB flash drive devices use, the mouse USB 2.0 Port behind the back of the USB ports installed).. Optional DVD-RW backup device. DVD Writer Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.5...
-
Page 6: 16Ch Rear Panel Connectors
⑨ USB 2.0 port USB port(Device USB Mouse). ⑩ LAN Network port. ⑪ ON/OFF Power Switch. ⑫ DC 12V Socket for a DC 12V input. ⑬ VGA1 VGA port. Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.6... - Page 7 Start playing back the most recently recorded segment. ENTER/MODE Switch to full screen or multi split display. MENU/ II Enable/ Disable setup Menu. BK-UP Enable/ Disable backup menu. Return last menu. Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.7...
- Page 8 Resting the cursor on this icon will bring up the following five display icons. FREEZE. ZOOM, double the screen size AUTO-sequence LOCK, activate the key lock. Full screen display. Quad display. 9 display 16-channel display Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.8...
- Page 9 Lower right of each CH will show the current time Icon Description Image quality (High/Low) Full screen Record Record and snap shot file saving path setup Enable / Disable Shortcut Toolbar Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.9...
- Page 10 Quad display 9 screen display 16-channel display Zoom-in display If you want to monitor single channel, please choose a channel and click left butt on of mouse two times. Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.10...
- Page 11 Please check user manual of your PTZ for more detail. AUX 1~8,「AUTO」Key ＋ Number key「1~8」 「Backup」, Customized function。 ＊ PTZ communication protocols from different brands aren’t compatible 100% sometimes. Therefore, some of these functions may be unavailable. Magtec MT858 & MT8516, 8ch and 16ch DVR quick guide P.11...
