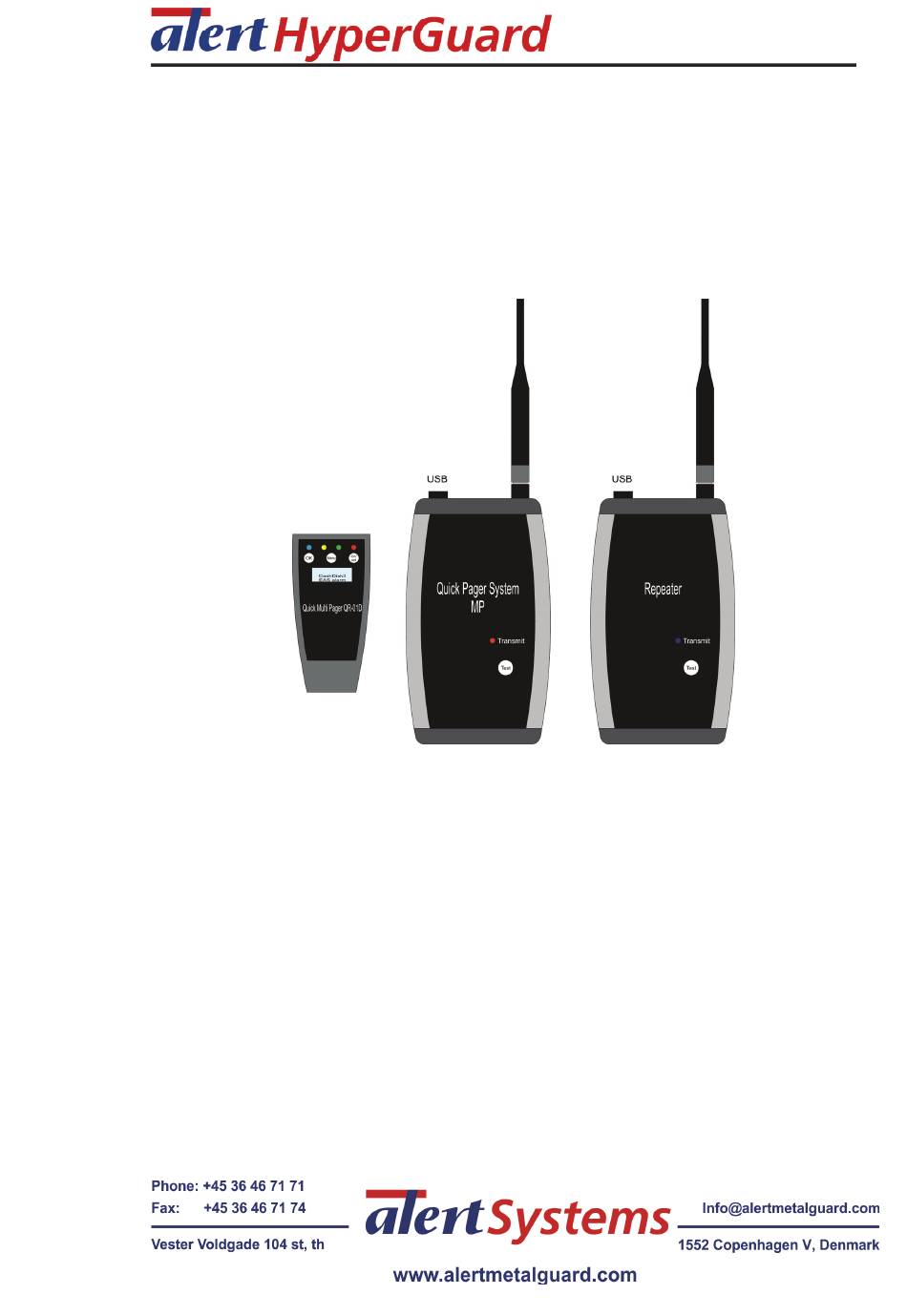

- Page 1 World leader in metal detection for anti-shoplifting purposes Manual Quick pager MP10D...
-
Page 2: Table Of Contents
World leader in metal detection for anti-shoplifting purposes TABLE OF CONTENTS FEDERAL COMMUNICATIONS COMMISSION STATEMENT .......... 3 PAGER SYSTEM ......................... 4 ADJUSTMENTS ........................5 PAGER RECEIVER PROGRAMMING ................... 5 PAGER RECEIVER RECHARGING ....................6 REPEATER UNIT ........................... 7 REPEATER SETUP ........................8 SPECIFICATIONS ....................... -
Page 3: Federal Communications Commission Statement
World leader in metal detection for anti-shoplifting purposes 1. FEDERAL COMMUNICATIONS COMMISSION STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Pager System
World leader in metal detection for anti-shoplifting purposes 2. PAGER SYSTEM Alert pager system with frequency bands: 426MHz, 433MHz and 915MHz Europe, Australia: 433MHz North America: 915MHz Japan: 426MHz Receiver Transmitter Repeater 900-1003114 Alert HyperGuard Quick pager MP10D (English V1) Page: 4/9 Date:May 31, 2013... -
Page 5: Adjustments
World leader in metal detection for anti-shoplifting purposes 3. ADJUSTMENTS 3.1 Pager receiver programming Receiver ON/OFF ON: Press On/set. Two beeps and a vibration are indicated (if enabled). The LED’s shows a running light from left starting with blue, yellow, green Every 10 seconds a short flash in the green... -
Page 6: Pager Receiver Recharging
World leader in metal detection for anti-shoplifting purposes 3.2 Pager receiver recharging The battery capacity in the receiver is 2.4V 400mAH NiMH The receiver can with the battery fully charged operate app. 24 hours. It is highly recommended to recharge the receiver every time it is not in use, minimum once a day for at least 10 hours. -
Page 7: Repeater Unit
World leader in metal detection for anti-shoplifting purposes 3.3 Repeater unit Here is an example where the pager receiver can’t receive the signal from the transmitter due to the concrete wall that is between the receiver and the transmitter. The solution is to use a Repeater unit. It could also be that the transmitter unit is mounted on a wall, which has a high content of metal. -
Page 8: Repeater Setup
World leader in metal detection for anti-shoplifting purposes 3.4 Repeater setup Jumpers No.1 No.2 No.3 No.4 No.5 No.6 No.7 No.8 No.9 No.10 Jumper Function No. 1 Programming mode (only to be used when programming) No. 2 This repeater is no. X No. -
Page 9: Specifications
World leader in metal detection for anti-shoplifting purposes 4. SPECIFICATIONS Pager transmitter PT01D: Operating voltage 5V via USB Dimension 89x148x26 mm Weight 200 g note1 Frequency 426MHz , 433MHz, 915MHz, ISM band Transmit power 9.9mW Antenna impedance 50 Ohm Antenna connection Distance to receiver 175 meters in open space Distance to Repeater...
