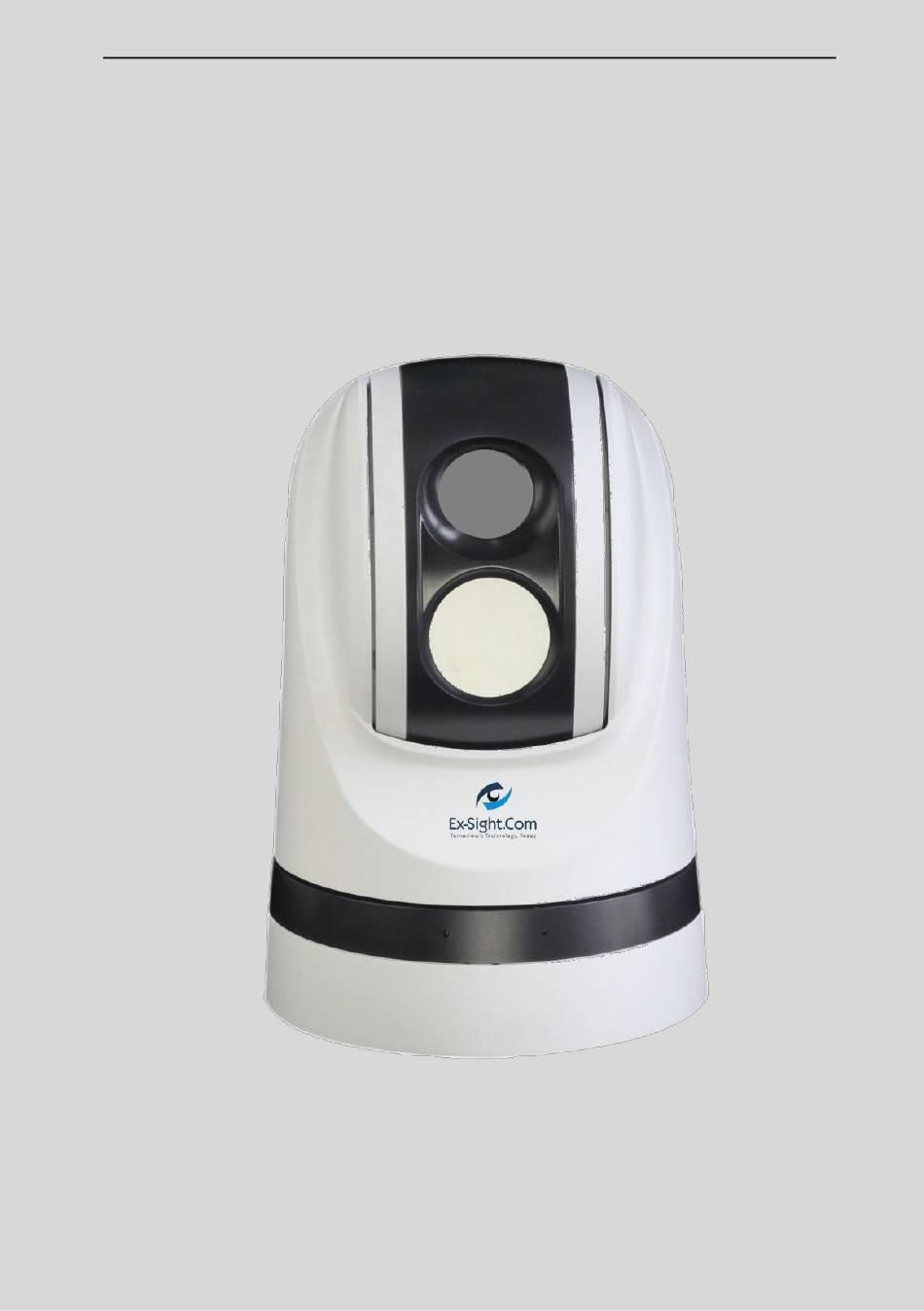

- Page 1 Ex-Sight.Com Ex-CT Compact Thermal Camera EX-CT USER MANUAL Compact Rugged Dual-Sensor PTZ Camera (CCD & Un-Cooled Thermal IR)
- Page 2 Ex-Sight.Com Ex-CT Compact Thermal Camera Modification History Revision Date of Release Modified Contents Ver 1.0 Mar 1 2012 Official release of first version...
- Page 3 Ex-Sight.Com Ex-CT Compact Thermal Camera Thank You for Choosing Our Portable All-Condition Rugged PTZ Camera! When you open the box: Check that the packing and the contents are not visibly damaged. Contact the retailer immediately if any parts are either missing or damaged.
-
Page 4: Table Of Contents
Ex-Sight.Com Ex-CT Compact Thermal Camera Contents SAFETY NOTES ABOUT THE PRODUCT TECHNICAL DATA PREPARATION INSTALLATION OPERATION ANNEX: DIP SWITCH – CAMERA ADDRESS 19 ii / ii... -
Page 5: Safety Notes
Do not move the camera module manually. In doing so would result in malfunction of the camera. Do not hold the camera module when carrying the video camera. Make sure the camera is far away from area where radiation, X-rays, strong electric waves, or magnetism is generated Ex-CT (Compact Thermal) User Manual... -
Page 6: About The Product
About The Product EX-CT series Thermal imaging system camera is designed for important video surveillance application such as Police, Rescue, Border Patrol, Marine, etc. (fixed and mobile video surveillance application.) It consists of: thermal imaging sensor, high resolution zoom module, precise PTZ system, optional damping systems. It ensures clear view of details under total dark or foggy environment. - Page 7 Focus can also be controlled manually from the controller if required. Press Focus Near or Focus Far key to manually focus. Focus can be manual via keyboard or other Ex-CT (Compact Thermal) User Manual...
- Page 8 Random Scan: Make the camera scan 360º ranging from the current position, pause at every 108 º. Frame Scan: Make the camera scan between two set positions. For Frame Scan: The zoom at two limits shall be programed the same. Ex-CT (Compact Thermal) User Manual...
- Page 9 Image Flip Enable you to view image easily when PTZ is either installed on roof of a car or is mounted on the ceiling. Ex-CT (Compact Thermal) User Manual...
-
Page 10: Technical Data
1-5 Steps / Off Day / Night Auto / Manual Optical Zoom Digital Zoom f=3.5 mm (wide) to 98 mm(tele) Lens F1.35 to F3.7 View Angle 55.8º (wide) to 2.1º (tele) Pan Range 360° Continuous Ex-CT (Compact Thermal) User Manual... - Page 11 Anti-Vibration Pan 9g, Tilt 15g Wind 180 km/h Resistance Φ190(mm)×300(mm) with vacuum pad mount Dimension Φ190(mm)×275(mm) w/o vacuum pad mount Weight 7 KGS Table 1: Technical Data The specifications are subject to change without notice. Ex-CT (Compact Thermal) User Manual...
-
Page 12: Preparation
See Fig. 1: DIP Switch. Fig. 1: DIP Switch The setting list of the camera address is enclosed in Section 0 . The camera shall be rebooted after the switches are programmed. Ex-CT (Compact Thermal) User Manual... - Page 13 DOME ID: 001 PROTOCOL: PELCO-D/P Fig. 3: On Screen Messages at Power Up 1.5. INSTALLATION PLACE Make sure the installation place has enough space, support strength to install the whole PTZ camera and its accessories Ex-CT (Compact Thermal) User Manual...
- Page 14 Ex-CT (Compact Thermal) User Manual...
-
Page 15: Installation
Installation 1.6. MOUNTS The PTZ camera provides fixed mounts as standard, and damping system as optional. With Damping System Fig. 4: Fixed Mounts (with and w/o damping system) Ex-CT (Compact Thermal) User Manual... - Page 16 Fig. 6: Installation Plate 2) Put the camera onto the installation plate. Make sure three installation bolts are in position with the fixing holes on the plate. Rotate the camera clockwise. Ex-CT (Compact Thermal) User Manual...
- Page 17 Fig. 7: Mount the Installation Plate 3) Fix the camera to the installation plate with a screw. Fig. 8: Fix the Installation Plate 1.8. CAMERA CABLE PACKAGE Connect the cable with the right pins as per following pictures. Ex-CT (Compact Thermal) User Manual...
- Page 18 Connect correct cables to relative outputs (RS485 +/-, Video Output and Power). Fig. 11: Cable Connection 2 Please make sure the camera is working with a right power supply. Wrong cable connection may cause damage to the device. Ex-CT (Compact Thermal) User Manual...
-
Page 19: Operation
GO TO Turn On Cruise GO TO Turn On Auto Scan(360° Scan) GO TO Clear All Presets GO TO Turn On Screen Tips / Page Down Of Screen Tips GO TO Turn Off Screen Tips Ex-CT (Compact Thermal) User Manual... - Page 20 When the fog is cleared, turn off the function in time in case the camera temperature is getting too high. Call Preset 38 to turn off the function. The “DEFOGGING” at top of the screen will disappear from the screen. Ex-CT (Compact Thermal) User Manual...
- Page 21 When the camera is in mono mode, call preset 27 to turn on/off the function. There are 1~5 steps from low to high. The higher the level is, the more video trails there are. Ex-CT (Compact Thermal) User Manual...
- Page 22 Vague image Replace power Inadequate power supply supply Self test error Restart the camera PTZ camera out of Wrong connection Check and reconnect control RS485 cable the cables Table 3 Trouble Shooting Ex-CT (Compact Thermal) User Manual...
-
Page 23: Annex: Dip Switch - Camera Address
Annex: DIP Switch – Camera Address ADDRESS Ex-CT (Compact Thermal) User Manual... - Page 24 Ex-CT (Compact Thermal) User Manual...
- Page 25 Ex-CT (Compact Thermal) User Manual...
- Page 26 Ex-CT (Compact Thermal) User Manual...
- Page 27 Ex-CT (Compact Thermal) User Manual...
- Page 28 Ex-CT (Compact Thermal) User Manual...
- Page 29 Ex-CT (Compact Thermal) User Manual...
- Page 30 Table 4: DIP Switch – Camera Address Ex-CT (Compact Thermal) User Manual...
