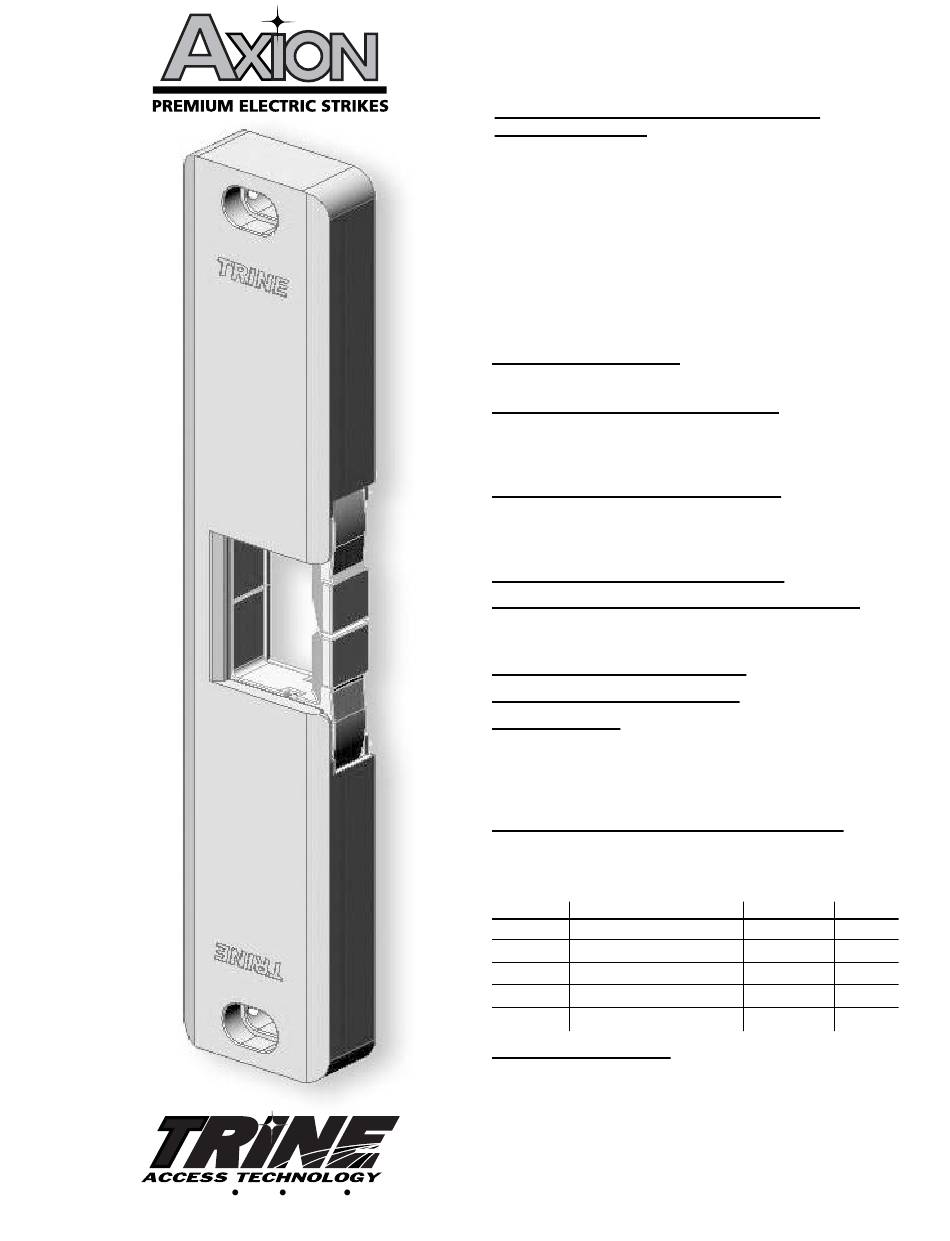

TRINE 4800 SERIES SURFACE MOUNT
ELECTRIC STRIKE
Congratulations on the purchase of this quality
TRINE security product. This product has been
designed to install easily, perform reliably, and
provide years of trouble free security.
BEFORE PROCEEDING
review the following list of features. If you have any
questions after reading this document please call TRINE's
TECHNICAL SUPPORT (718) 829-2332 EXT. 447, or visit
the TRINE Web site at www.TrineOnline.com
SURFACE MOUNTING:
Unit only requires the drilling of (3) holes*
*ANCHORING SYSTEM: (Included)
Uniquely designed optional (4) four pin anchoring system
provides additional support beyond the standard
two tapped mounting holes.
ONE PIECE LOCKING MECHANISM:
Our patent pending locking mechanism only has
one mechanism providing incredible strength,
durability and reliability due to fewer moving parts.
STAINLESS STEEL CONSTRUCTION
FAIL SECURE/FAIL SAFE FIELD SELECTABLE:
Unit is supplied with fail safe spring that is
changed in the field when desired.
1,500,000+ LIFE CYCLE TESTED
3,000+ LBS. HOLDING FORCE
STEEL SPACER:
We supply a 1/8" thick spacer for those installations that
require mounting the strike closer to the panic bar.
In addition, the spacer is used as a template during
installation.
4800 & 4801 - 12 THRU 24 AC/DC OPERATING VOLTAGE:
Expanding the use of our popular LC unit in the 3000
series, the 4800/4801 has this unit built in providing
the flexibility along with surge and kickback protection.
VOLTAGE PULL IN / HOLD AMPS
12DC
.566/.217
24DC
.253/.099
12AC
.509/.181
16AC
.402/.149
24AC
.215/.087
AVAILABLE FINISHES
US3 - Bright Brass
US10B - Dark Bronze
US4 - Satin Brass
US26 - Bright Chrome
US10 - Satin Bronze
US32D - Satin Stainless Steel
with your installation, please
DUTY SOUND
Intm./Cont. Silent
Intm./Cont. Silent
Intm./Cont. Silent
Intm./Cont. Silent
Intm./Cont . Silent
