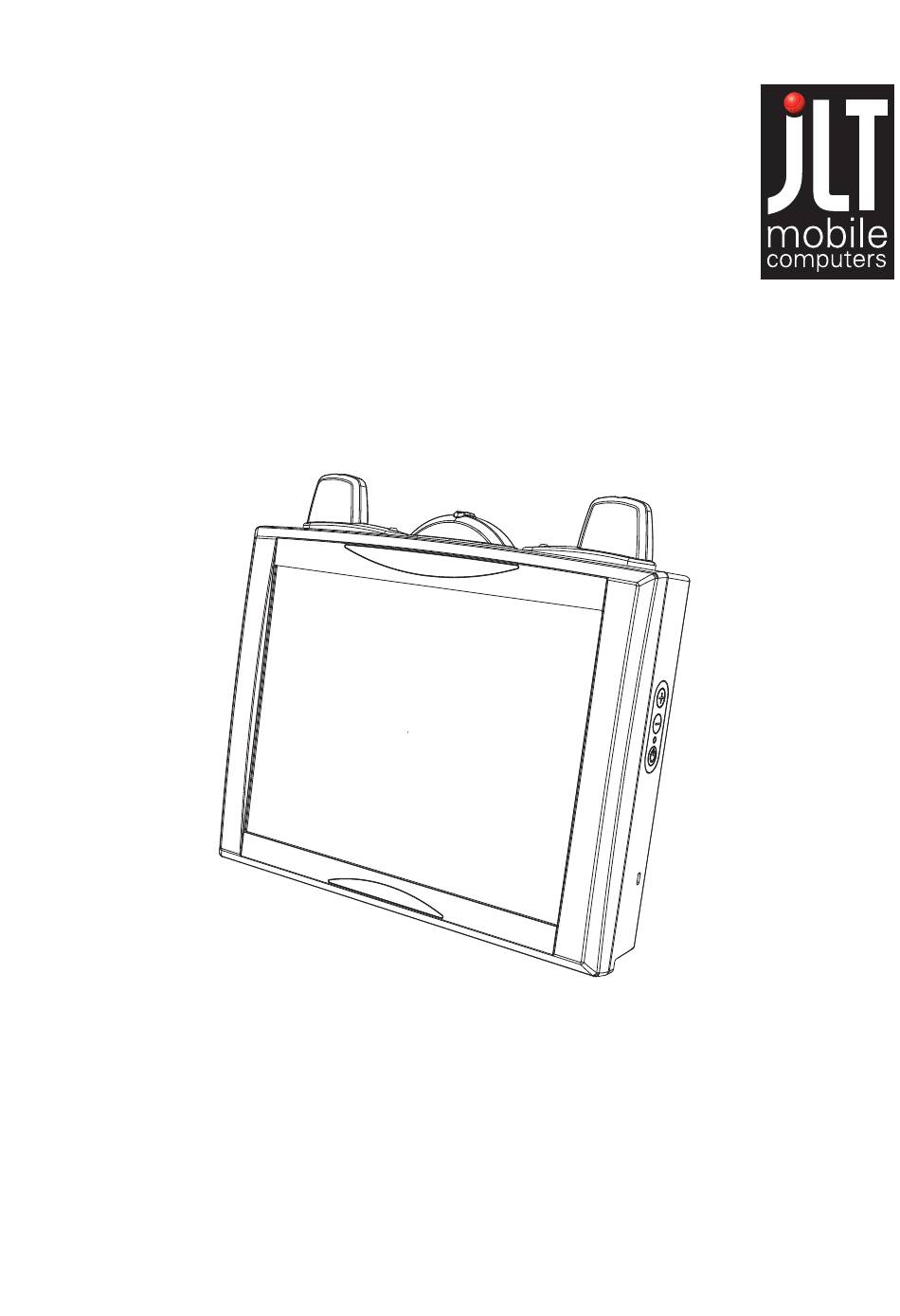

- Page 1 JLT1213 User manual JLT Mobile Computers AB Isbjörnsvägen 3 SE-352 45 Växjö, SWEDEN Phone: +46 470 530300 Fax: +46 470 445 29 JLT1213, User manual Rev 0 E-mail: mailbox@jltmobile.com © 2008, JLT Mobile Computers AB www.jltmobile.com...
- Page 2 - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by JLT Mobile Computers could void the user's authority to operate the equipment.
-
Page 3: Table Of Contents
Front view..................1 Rear view ..................2 Features....................2 Accessories..................3 Function buttons .................3 Using the JLT1213 ................4 Turning on the JLT1213..............4 Shutting down the JLT1213 ..............4 Reset....................4 Screen brightness ................4 Instant blanking...................4 Touch screen ..................5 External device connections ...............6 USB 2.0 ..................6 Ethernet port...................6 PC Card Slot ..................6... -
Page 4: Content
Content Physical dimensions..............14... -
Page 5: General
General General JLT1213 The JLT1213 is a compact high performance and low weight rugged PC. The 1213 can withstand severe environmental conditions including vibration, shock, moisture and temperature variations. The 1213 is suitable for use in harsh environments such as construction sites, ware- housing, defense and manufacturing. -
Page 6: Rear View
General Rear view 1.) USB Connector 2.) Ethernet connector 3.) Power cable 4.) Cable strain relief Features • Rugged, ergonomic, 1-piece design makes the 1213 ideal for all vehicle appli- cations. • 4x USB 2.0 ports... -
Page 7: Accessories
General Accessories Function buttons Function Decrease brightness Power button with power LED Increase brightness... -
Page 8: Using The Jlt1213
This chapter covers information about using the JLT1213. The use of the JLT1213 does not differ from normal PC use. Turning on the JLT1213 To turn on the JLT1213 press the power button for one second, see chapter “Function buttons” on page 3. The power LED lights up. Shutting down the JLT1213 Before shutting down the system save your work and close all running programs. -
Page 9: Touch Screen
Using the JLT1213 Touch screen The JLT1213 has a resistive 4-wire Touch Screen for easy integration, which allows the user to work with gloves. WARNING! Do not use sharp objects when operating the touch screen. Selecting To select an object on the screen tap the object once. -
Page 10: External Device Connections
Power connector 18-72V USB 2.0 The JLT1213 is equipped with four USB ports that can be used to connect external de- vices. Connected devices may require additional drivers or software which usually is included with the device. The port supports 500 mA. -
Page 11: Boot Media
In stand by mode the power to unnecessary functions are turned off. Suspend to Disk mode In the suspend to disk mode, the current data is saved to the disk and the JLT1213 is powered off. When the JLT1213 is in suspend to disk mode the power consumption is the same as in the off state. -
Page 12: Maintenance
You must avoid oil on the Touch Screen because it can be difficult to remove. Keep the JLT1213 clean and free from dust and dirt by using a soft, lint-free cloth reg- ularly. If available, you can also use compressed air (maximum pressure 2 bar) but some caution is to be observed. - Page 13 Maintenance...
-
Page 14: Intel Celeron 1 Ghz
Registry files. UPS Operation The JLT 1213 is equipped with a UPS battery, which is located under the right hand side top lid. The purpose of UPS battery is to supply power during a short loss of pow- er eg. when a battery is changed on the forklift. During operation on UPS the screen brightness is set to minimum to conserve battery power. -
Page 16: Interface Specification
Power 18 to 72 V, nominal 25 W, max 45 W Power return (0 V). Note! The JLT 1213 have separated power grounds. The cabinet and power return (0V) are not connected together, negative ground. Switch buttons on the side. -
Page 17: Technical Specification
Technical specification Technical specification Base system Processor: 1 GHz Celeron RAM Memory: Up to 1GB Display: 12.1" SVGA 400 nit Graphics: Integrated with Intel Graphics Media Accelerator (82852GME) Dual Independent Display Support Storage: Compact Flash Interfaces: Four USB 2.0 One Ethernet 10/100-TP, RJ45 Power supply: 18-72 VDC (Standard wide input) 5W standby / 20W operating, Max 45W... - Page 18 Physical dimensions Physical dimensions 262,96 238,76 141,25 M6 (4x) deep 15mm M6 (4x) deep 8,5mm 290(2x)
- Page 20 JLT Mobile Computers AB Isbjörnsvägen 3 SE-352 45 Växjö, SWEDEN Phone: +46 470 533000 Fax: +46 470 445 29 JLT1213, User manual, Rev 0 E-mail: mailbox@jltmobile.com © 2005, JLT Mobile Computers AB www.jltmobile.com...
