Summary of Contents for Edaphic Scientific ESSAN-20
- Page 1 User Manual R1.0 Personal Safety O2 Monitor ESSAN-20 Exclusively Distributed & Supported By: www.edaphic.com.au info@edaphic.com.au...
-
Page 2: Table Of Contents
Contents INTRODUCTION ..........................3 FEATURES ............................3 APPLICATIONS ..........................3 THEORY OF OPERATION ......................4 MONITOR ............................4 LCD DISPLAY ..........................4 OPERATION ............................ 5 MAINTENANCE ..........................7 SPECIFICATIONS ........................... 8 TROUBLESHOOTING ........................8 OXYGEN RECOMMENDED LEVELS ..................... 9 SUPPORT ............................9 WARRANTY ............................. -
Page 3: Introduction

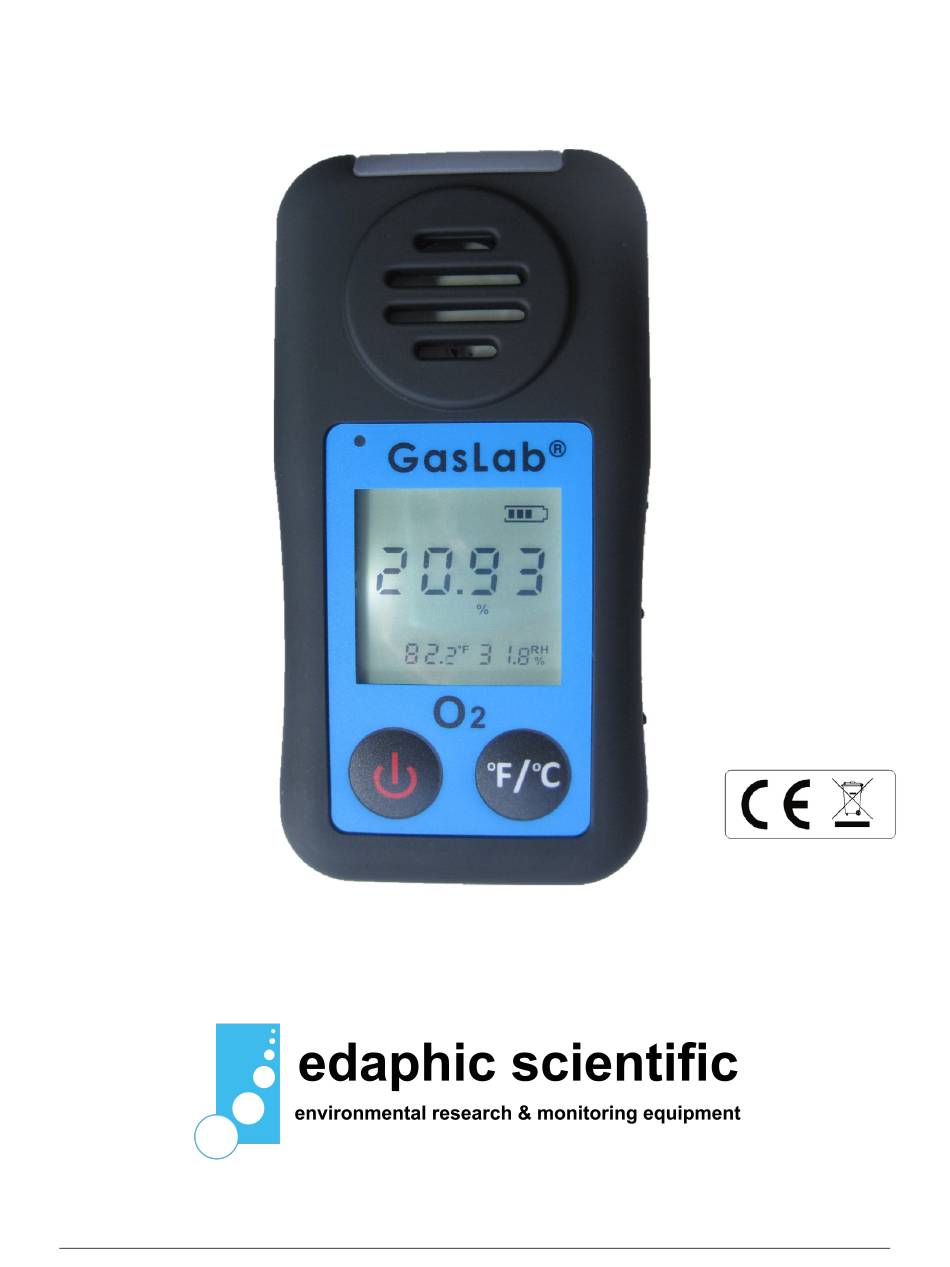

Congratulations on your purchase of this ESSAN-20 Pocket Personal Safety O2 Monitor. The ESSAN-20 is a personal safety O2 monitor designed to monitor ambient oxygen levels in real time. It is designed to protect workers in confined spaces. ESSAN-20 is shipped fully tested and factory calibrated and, with proper use, will provide years of reliable service. -
Page 4: Theory Of Operation
THEORY OF OPERATION The ESSAN-20 Personal Safety O2 Monitor determines the concentration of oxygen in air samples using the principle of fluorescence quenching by oxygen. Air reaches the sensor by diffusing through the openings of the unit. Normal air movement is enough to carry the sample to the sensor. -
Page 5: Operation
OPERATION 1. Power button 1) When the Monitor is turned off, press to turn on the unit. 2) When the Monitor is turned on, press for 3 seconds to turn off the unit. When the unit is first turned on, it performs 5 seconds countdown for Monitor warm up, then enters normal display with current O2, temperature, and humidity readings displayed. - Page 6 "IP" during the calibration. 4. Alarm Threshold There are high and low alarm thresholds in ESSAN-20. Both high and low alarm has twelve thresholds: 15.0%, 15.5%, 16.0%, 16.5%, 17.0%, 17.5%, 18.0%, 18.5%, 19.0%, 19.5%, 23.0%, and 23.5%. Obviously, high alarm threshold should not less than low threshold. They can be same alarm level.
-
Page 7: Maintenance
MAINTENANCE Calibration The ESSAN-20 comes pre-calibrated from the factory. However, the O2 sensor should be calibrated at least once a year, or as described in your company’s safety procedures. You can perform the calibration yourself, or you can return it to us for factory calibration at a nominal fee. -
Page 8: Specifications
Apply sparingly with a soft cloth and allow drying completely before using. Do not use soap or Alcohol cleaning. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning. SPECIFICATIONS Device Specifications Operating Environment 32°F~122°F (0°C~50°C), <95% RH non-condensing Storage 14°F~140°F (-10°C~60°C), <99% RH non-condensing Power Supply Li-ion battery (4.2V,1500mAh),Micro USB cable w. -
Page 9: Oxygen Recommended Levels
Check that the Li-ion battery is charged If monitor is charged but will not turn on, contact support Reading does not change In fresh air, you will rarely see oxygen levels change. This is normal. OXYGEN RECOMMENDED LEVELS • > 23.5% Oxygen enriched, presents significant fire and explosion risk •... -
Page 10: Liability
CONTACT US We are here to help! For information or technical support, please contact us. Edaphic Scientific Pty Ltd www.edaphic.com.au info@edaphic.com.au Ph: 1300 430 928 PAGE 10 of 10...
