Summary of Contents for Montage Asia TXL1G2-3
-
Page 1: User Manual

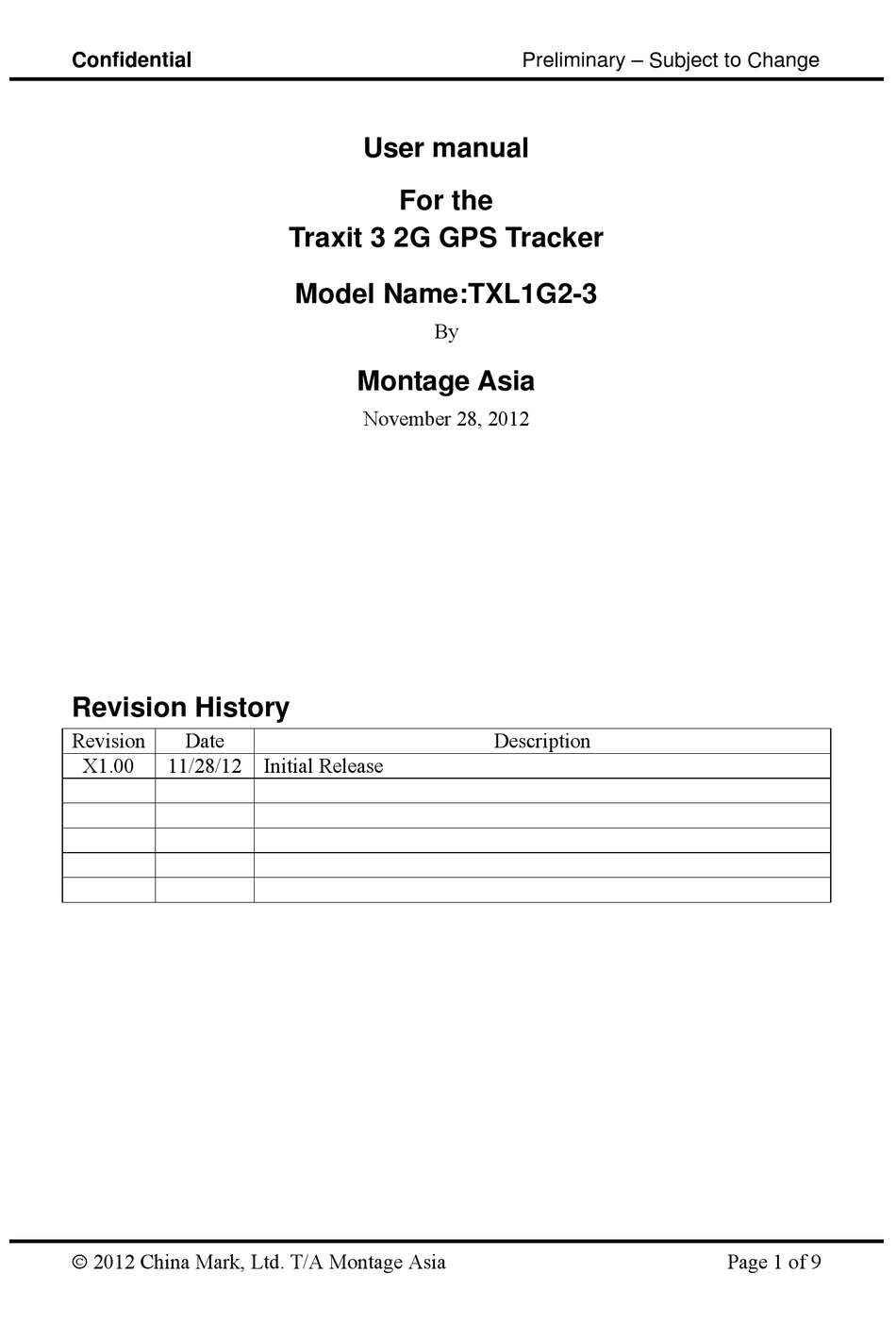

Preliminary – Subject to Change User manual For the Traxit 3 2G GPS Tracker Model Name:TXL1G2-3 Montage Asia November 28, 2012 Revision History Revision Date Description X1.00 11/28/12 Initial Release 2012 China Mark, Ltd. T/A Montage Asia Page 1 of 9... - Page 2 SIM card access. The TXL1G2-3 has a embedded lithium battery, the battery has 60mAh capacity . The TXL1G2-3 is based on chip level design. The application software executes on the base level Central Processing Unit (CPU) under direct Operating System (OS) control.
-
Page 3: Physical Attributes
The TXL1G2-3 enclosure and its features are secured using M2 sized metal fasteners for rugged mechanical performance. . The TXL1G2-3 is physically disguised to appear to be a nondescript part of the cabling system. It is a small black box with unremarkable features. Two LED status indicators are provided to verify correct installation and initial operation. - Page 4 Figure 3 TXL1G2-3 Physical Attributes Sidecar Mounts Top Front Bottom Back AES/PC Main Plastic Connector Enclosure Indicators Fastener Fasteners (4 PL) Expansion Door Top Back Units: Inches [mm] 2012 China Mark, Ltd. T/A Montage Asia Page 4 of 9...
- Page 5 Preliminary – Subject to Change Interfaces There are one connectors on the TXL1G2-3.The connector provides electrically hardened signals interfaces for I/O and power. It is intended that this connector attach or be spliced into the cable harness of a vehicle.
- Page 6 TVS diode System ground, connect to Power and signal ground point negative of battery power NOTE 2.8V Equivalent Circuit for pins 2 through 5 2.8V 50kΩ 1.2kΩ To Circuit 2012 China Mark, Ltd. T/A Montage Asia Page 6 of 9...
- Page 7 All the reports of the applied standards have the Positive Opinion of Notified Body: PHONEIX TESTLAB, Königswinkel 10 D-32825 Blomberg, Germany Identification mark: 0700 (Notified Body) CE The technical documentation relevant to the above equipment will be held at: Montage 2012 China Mark, Ltd. T/A Montage Asia Page 7 of 9...
-
Page 8: Fcc Regulations
à la réception radio ou de programmes de télévision, laquelle peut être déterminée en éteignant et en allumant l'équipement, l'usager est encouragé à essayer de corriger l'interférence par l'une ou plusieurs des mesures suivantes : 2012 China Mark, Ltd. T/A Montage Asia Page 8 of 9... - Page 9 La FCC ou Industrie Canada peut vous obliger à arrêter d'utiliser votre appareil si une telle interférence ne peut pas être éliminée. TXL1G2-3 n'a pas approuvé les changements ou modifications apportés à cet appareil par l'usager. Tous les changements ou modifications apportés peuvent entraîner la révocation de l'autorisation d'utilisation de l'appareil.
