DMX Panel Mix4-6

with integrated power supply

Functional description Mix4-6

Fabrication and Marketing

Licht-Technik

Hagenbach & Grill

Osterwaldstr. 9-10 80805 München

Tel. 089-360528-0 Fax 089-360528-30

E-Mail: info@Licht-Technik.com

Last updated on: 28.09.17 Rev.: 1.02

Mix 4-6 Rev.: 1.02

Table of Contents

Need help?

Do you have a question about the Mix4-6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Licht-Technik Mix4-6

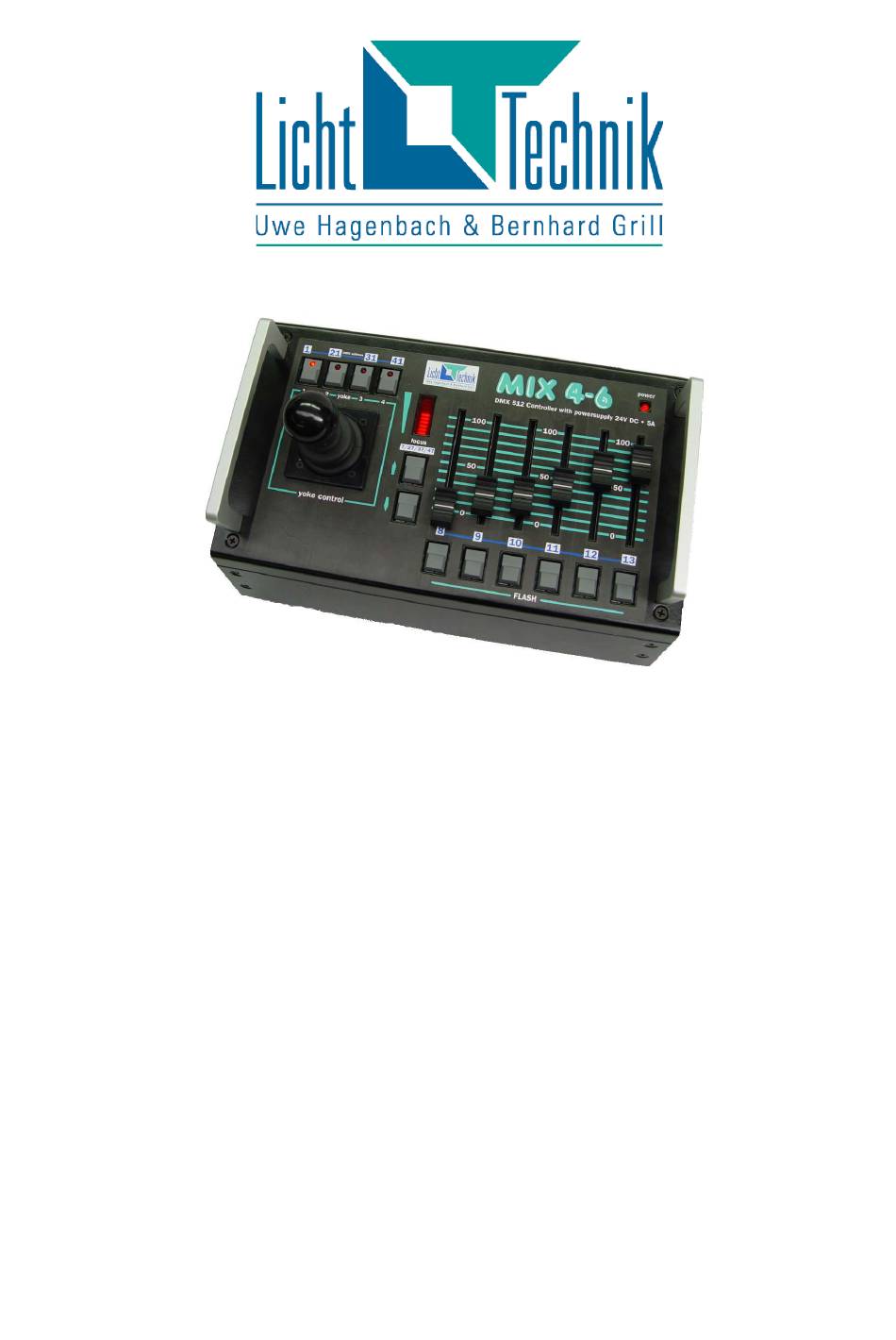

Page 1 DMX Panel Mix4-6 with integrated power supply Functional description Mix4-6 Fabrication and Marketing Licht-Technik Hagenbach & Grill Osterwaldstr. 9-10 80805 München Tel. 089-360528-0 Fax 089-360528-30 E-Mail: info@Licht-Technik.com Last updated on: 28.09.17 Rev.: 1.02 Mix 4-6 Rev.: 1.02...
Page 2 Caution! Operate the device only after having read and understood operating instructions! Mix4-6 Rev.: 1.02...

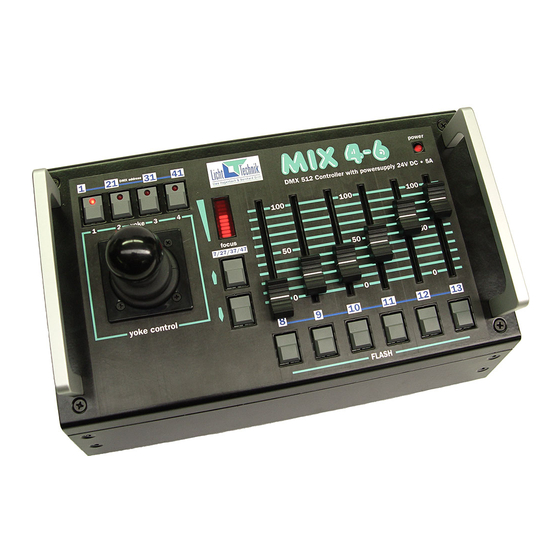

Page 3 The DMX panel Mix4-6 The light mixing panel Mix4-6 is a small, easy to use DMX panel with standard DMX512- 1990 outputs. It has an integrated power supply with 5A (120W). Up to 4 motoryokes inclusive focus-units from Licht-Technik can be controlled via the joystick.
Page 4: Table Of Contents
Table of content Operating and safety instructions..................5 Cabling..........................6 Getting started........................8 User interface elements....................... 8 Handling / Programming....................... 9 Technical data........................10 Malfunctions........................11 Warranty..........................12 Further information......................12 EC Declaration of Conformity..................... 13 Mix4-6 Rev.: 1.02...
Page 5: Operating And Safety Instructions
Prior to starting the equipment the user must check the usefulness of the device for its intended purpose. In particular, Licht-Technik shall decline any liability for damages of the equipment as well as for consequential damages resulting of the device being used inappropriately, of inexpert installation, incorrect starting and use, and of non-compliance with the valid safety regulations.
Page 6: Cabling
Mix4-6 Connect the Mix4-6 with the splitbox via a 5pin DMX cable. The two 5pin outputs of the splitbox can be used to connect further splitboxes. On DataPower output of the Splitbox the devices can be plugged, also in a daisy chain. Observe the maximum number of devices.
Page 7 Mains Mix4-6 Connect the Mix4-6 with the devices directly via a 4pin DataPower cable. Connect them in a row (daisy chain). Observe the maximum load of 120W. The motoryoke has no output connector, so only one motoryoke can be connected without a splitbox!
Page 8: Getting Started
And leave the joystick in the middle position! It is calibrated – during switching on! User interface elements Motoryoke- Focus position- Power LED selection DMX-channels 8-13 Joystick for Motoryoke control Focus Forward/Back Flash-buttons 4pol DataPower output ON/OFF Switch Mains input 5pin DMX-output Mix4-6 Rev.: 1.02...
Page 9: Handling / Programming
Handling / Programming Now, the DMX-adresses of the devices have to be adapted to the panel. Program the device-addresses like indicated on the Mix4-6: Motoryoke Startadress The focus-adresses are automatically okay, because on the yoke you only have to set the first adress.
Page 10: Technical Data
2 x 1mm Power supply (Pin 1 and 4) 2 x 0,25mm twisted, 110 Ohm characteristic impedance (Pin 2 and 3), shielded Shielded. Cable 5pol: 2x 0,25mm twisted, 110 Ohm characteristic impedance (Pin 2 and 3), shielded Shielded. Mix4-6 Rev.: 1.02...
Page 11: Malfunctions
- Was the joystick touched during power on? If yes, release the joystick at power up again. No DMX signal on the outputs - Check the DMX lines for interruption and interchanging of pin 2 and 3. If the error could not be recovered, the device must be sent to company Licht-Technik. Mix 4-6 Rev.: 1.02...
Page 12: Warranty
All maintenance and servicing works related to the product must be carried out by the company Licht-Technik. Licht-Technik shall not assume any liability for losses or damages of any kind being the results of inexpert servicing. Further information...
Page 13: Ec Declaration Of Conformity
EC Declaration of Conformity Type of device/product DMX desk Mix 4-6 Name and address of manufacturer Licht-Technik Vertriebs GmbH Osterwaldstraße 9-10 80805 München The manufacturer is responsible for this declaration Item of declaration Mix 4-6 The described item is conform to the following guidelines/regulations RICHTLINIE 2014/30/EU DES EUROPÄISCHEN PARLAMENTS UND DES RATES vom...
