iS1 SmartSystem
User Manual
Armatix iS1 User Manual
1/19
2011-07-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iS1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARMATIX iS1

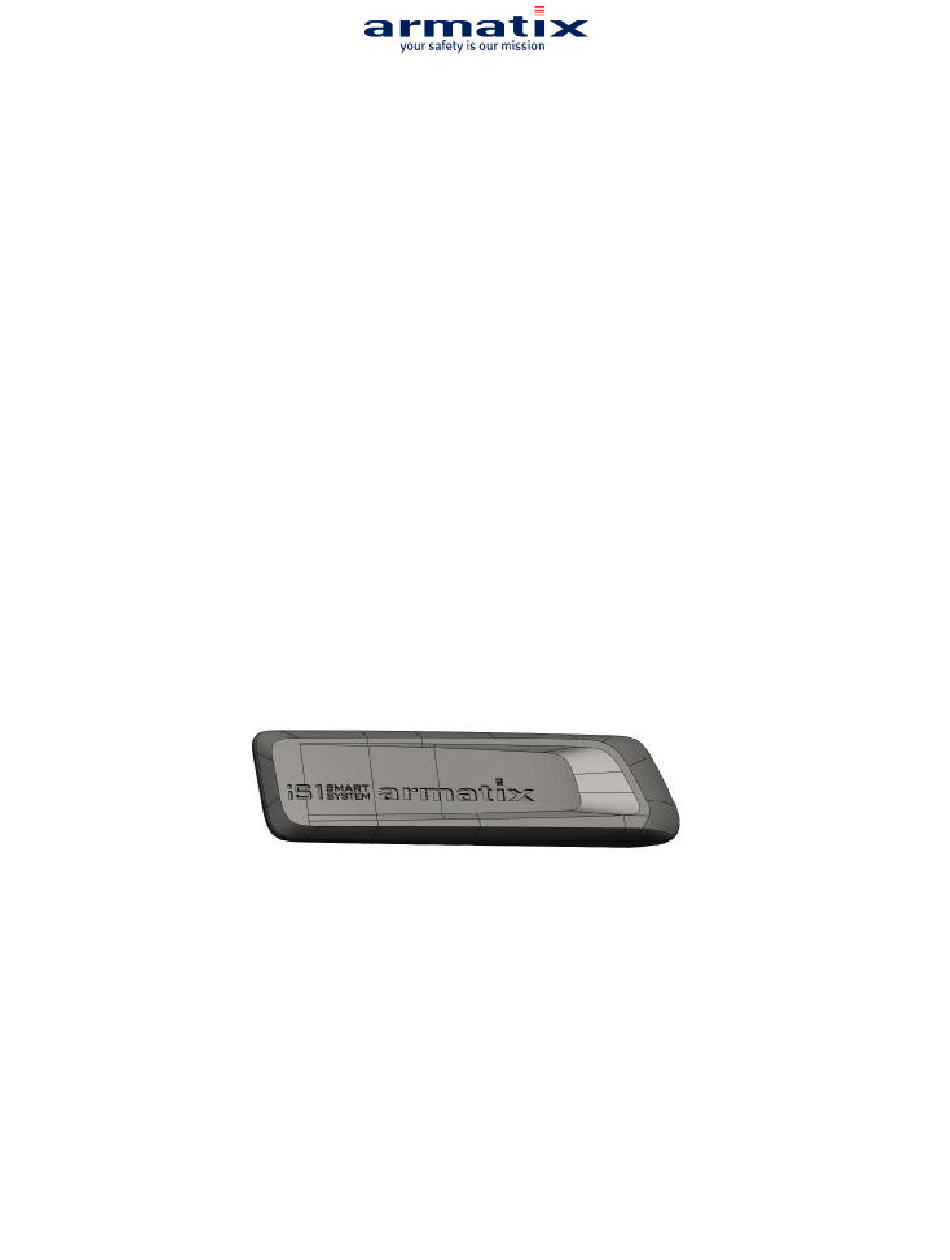

  • Page 1 SmartSystem User Manual Armatix iS1 User Manual 1/19 2011-07-01...
  • Page 2 Content and layout of the operating manual are protected by copyright. Duplication of the pages or their contents shall require the prior written approval of ARMATIX GmbH, insofar as the duplication is not permitted by law.
  • Page 3 Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Armatix iS1 User Manual 3/19 2011-07-01...

  • Page 4: Table Of Contents

    Driver Installation Fails And Windows XP Gives Error Code 10 ....16 4.3. Windows XP Displays An Error And Then Terminates Installation ....16 Contact Information ....................18 Appendix A - Revision History..................19 Appendix B - Reference....................20 Armatix iS1 User Manual 4/19 2011-07-01...
  • Page 5 Figure 2. 9 .......................... 12 Figure 2. 10 ........................12 Figure 2. 11 ........................13 Figure 2. 12 ........................13 Figure 2. 13 ........................Figure 4. 1 ………………………………………………………………………………...177 Armatix iS1 User Manual 5/19 2011-07-01...

  • Page 6: Introducing

    Introducing This document describes the process of installing the Armatix iS1 device for the Microsoft Windows XP operating system. Armatix iS1 User Manual 6/19 2011-07-01...

  • Page 7: Installing Drivers

    To install the Armatix iS1 device under Windows XP, follow the instructions below: • Use the iS1 driver CD or download the latest drivers from the Armatix web site and unzip them to a location on your PC. • If you are running Windows XP or Windows XP SP 1, temporarily disconnect your PC from the Internet.
  • Page 8 ("C:\CDM 2.02.04" in Figure 2.3 below) or browse to it by clicking the browse button. Once the file path has been entered in the box, click next to proceed. Figure 2. 3 Armatix iS1 User Manual 8/19 2011-07-01...
  • Page 9 Figure 2. 4 • The screen shown in Figure 2.5 will be displayed as Windows XP copies the required driver files. Figure 2. 5 Armatix iS1 User Manual 9/19 2011-07-01...
  • Page 10 • The Found New Hardware Wizard will launch automatically to install the COM port emulation drivers. As above, select "No, not this time" From the options and click "Next" to proceed with the installation (Figure 2.7). Figure 2. 7 Armatix iS1 User Manual 10/19 2011-07-01...
  • Page 11 ("C:\CDM 2.02.04" in figure 2.9 below) or browse to it by clicking the browse button. Once the file path has been entered in the box, click next to proceed. Figure 2. 9 Armatix iS1 User Manual 11/19 2011-07-01...
  • Page 12 • The screen shown in Figure 2.11 will be displayed as Windows XP copies the required driver files. Figure 2. 11 • Windows should then display a message indicating that the installation was successful (Figure 2.12). Click "Finish" to complete the installation for the first Armatix iS1 User Manual 12/19 2011-07-01...
  • Page 13 "Hardware" tab and click "Device Manger") and select "View > Devices by Connection", the device appears as a "USB Serial Converter" with an additional COM port with the label "USB Serial Port" (Figure 2.13). Figure 2. 13 Armatix iS1 User Manual 13/19 2011-07-01...

  • Page 14: Uninstalling Drivers

    OEM INF files are found (e.g. oem10.inf for FTDIBUS.INF and oem11.inf for FTDIPORT.INF), the corresponding PNF files must also be removed (e.g. oem10.pnf and oem11.pnf). Driver files are located in the Windows\System32 and Windows\System32\Drivers directories. Armatix iS1 User Manual 14/19 2011-07-01...

  • Page 15: Troubleshooting

    Windows XP Displays An Error And Then Terminates Installation If the following screen is displayed with this message, Windows XP has been configured to block the installation of any drivers that are not WHQL certified. Figure 4. 1 Armatix iS1 User Manual 15/19 2011-07-01...
  • Page 16 To change the current driver signing setting, go to "Control Panel\System", click on the "Hardware" tab and then click "Driver Signing". The desired signing option may then be selected. Armatix iS1 User Manual 16/19 2011-07-01...

  • Page 17: Contact Information

    5. Contact Information Armatix GmbH Feringastr. 4 D-85774 Unterfoehring Germany Tel: +49 (0) 89 4272979 0 Fax: +49 (0) 89 4272979 79 E-Mail: info@armatix.de Armatix iS1 User Manual 17/19 2011-07-01...

  • Page 18: Appendix A - Revision History

    Appendix A - Revision History Version 0.1 First Draft 01/07/2011 Armatix iS1 User Manual 18/19 2011-07-01...

  • Page 19: Appendix B - Reference

    Appendix B - Reference Future Technology Devices International Ltd Application Note AN_104 FTDI Drivers Installation guide for Windows XP Web: http://www.ftdichip.com Armatix iS1 User Manual 19/19 2011-07-01...
