Summary of Contents for Mobile Awareness MA-ODSS-4M17WA

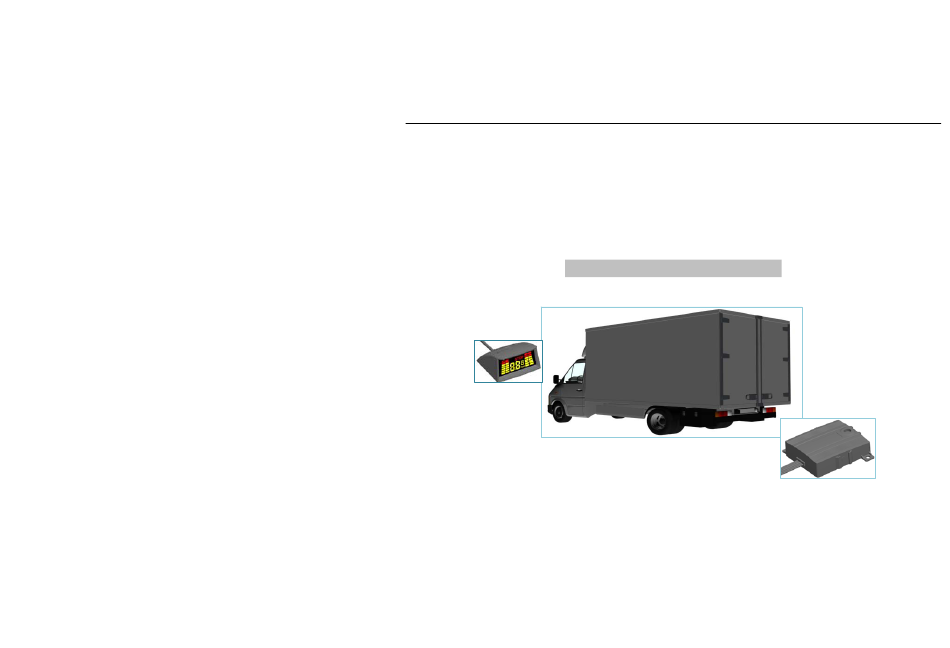

- Page 1 Parking sensor system Parking Sensor System For Commercial Trucks, Utility Vehicles, Buses, Motorhomes and SUV's INSTALLATION & INSTRUCTION MANUAL Model: MA‐ODSS‐4M17WA ...
-
Page 2: Product Composition
Parking sensor system ● PRODUCT COMPOSITION CONTROL UNIT (ECU) WARNING UNIT DETECTION UNIT • • • Dimensions: Dimensions： Type of Sensor: 4.3(L) x 3.6(W) x 1.25(H) in. 3.5(W) x 2.9(L) x 1.6(H) in. Recess type/Bolt-in type • 110(L) x 92(W) x 32(H) mm 90(W) x 75(L) x 40(H) mm Sensor Model: •... - Page 3 Parking sensor system ● TECHNICAL DATA ITEM DATA ITEM DATA Display Distance 0.22~2.5(m) 0.72~8.20(ft) Working Voltage 10.5~28.0(VDC) Blind Area (at 25 ºC) <0.22m <8.7 inches Rated Voltage 12.0 VDC Detection Tolerance (at 25 ºC) ±0.02m ±0.8 inches Rated Current ≤250 mA Warning Mode LED &...
-
Page 4: About The Display
Parking sensor system ● ABOUT THE DISPLAY (1) Indication of direction and zone: the 4 columns of LED bar show the direction and location of the obstacle; (2) Indication of distance: shows the distance from the sensors to the obstacle in meters or in feet ●... - Page 5 Parking sensor system important to install sensors at right places. Suppose the width of vehicle is L, then, (a) For 4-channel systems, the space between sensors is 1/4L; (b) For 3-channel systems, the space between sensors is 1/3L; (c) For 2-channel systems, the space between sensors is 1/2L. (2) Sensors should be mounted 16 in.
-
Page 6: How To Set Functions
Parking sensor system Important: never reverse the power polarities. (2) Attach each of the sensors to same numbered waterproof connector running from the ECU (S1 to S1, S2 to S2, etc.); (3) Refer to the diagram on the right for additional connection information. ●... -
Page 7: Diagnostic Mode
Parking sensor system parking sensor system doesn’t report the carrier, but reports the accurate distance from the obstacle to the carrier, instead of to the bumper (see the vehicle example). How to set (a) Press and hold Setting Button, before and when turning the vehicle key to ACC position. (b) In 3 seconds, the warning unit will show some digits which are the previous “0”... - Page 8 Mobile Awareness, LLC shall in no event be liable for any direct or indirect damages, including personal injury or death, resulting from errors that occur in the use of this product, irresponsible acts, unsafe driving or negligence.
-
Page 9: Fcc Warning
Parking sensor system FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 8 of 7...
