1. Remove Cassette from the Bill Dispenser
a. Use the UnLock button on the Diagnostics screen
2. Verify the Cassette Lock in not broken
3. Open Cassette
4. Remove all bills
5. Verify Cassette height is at 9 (Both sides)
6. Verify Bill length rails are at H (left) and I (right)
Grasp Guide
and move
toward front of
cassette while
lifting up

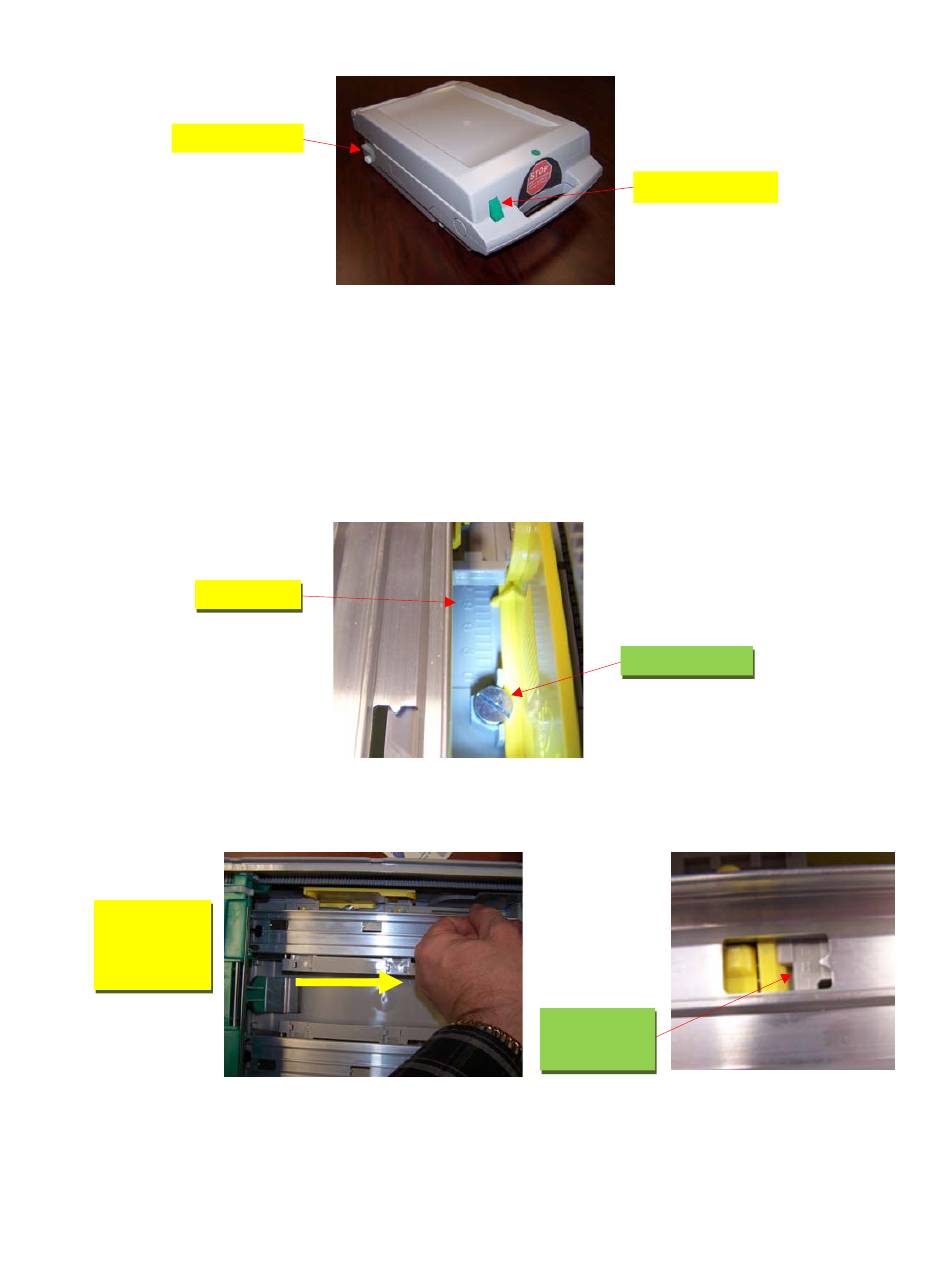

NMD50 Proper Cassette Setup
Cassette Lock
Indicator Tab
Adjustment Screw
Indicator Tab
H
for Left side
I
for Right Side
Cassette Latch
Advertisement
Summary of Contents for Talaris NMD50
- Page 1 NMD50 Proper Cassette Setup Cassette Lock Cassette Latch 1. Remove Cassette from the Bill Dispenser a. Use the UnLock button on the Diagnostics screen 2. Verify the Cassette Lock in not broken 3. Open Cassette 4. Remove all bills 5. Verify Cassette height is at 9 (Both sides) Indicator Tab Adjustment Screw 6. Verify Bill length rails are at H (left) and I (right) Grasp Guide and move toward front of cassette while lifting up Indicator Tab...
- Page 2 a. If Adjustment is necessary Guide can now be adjusted from side to side to achieve specifications 7. Verify Pusher Plate is not skewed both directions GOOD Skewed 8. Properly prepare bills Flip through the stack of Bills to check condition. • Remove any bills that are in poor condition •...
- Page 3 9. Properly Load bills in the Cassette Use only notes in good condition and align them evenly 10. Pull out the White locking Tabs on green pusher bar Pull white tabs out before closing cassette. White Tabs 11. Properly close the cassette Close Cassette by pressing down on the green dot until the latch release button is fully engaged ...
