SP – 03V2

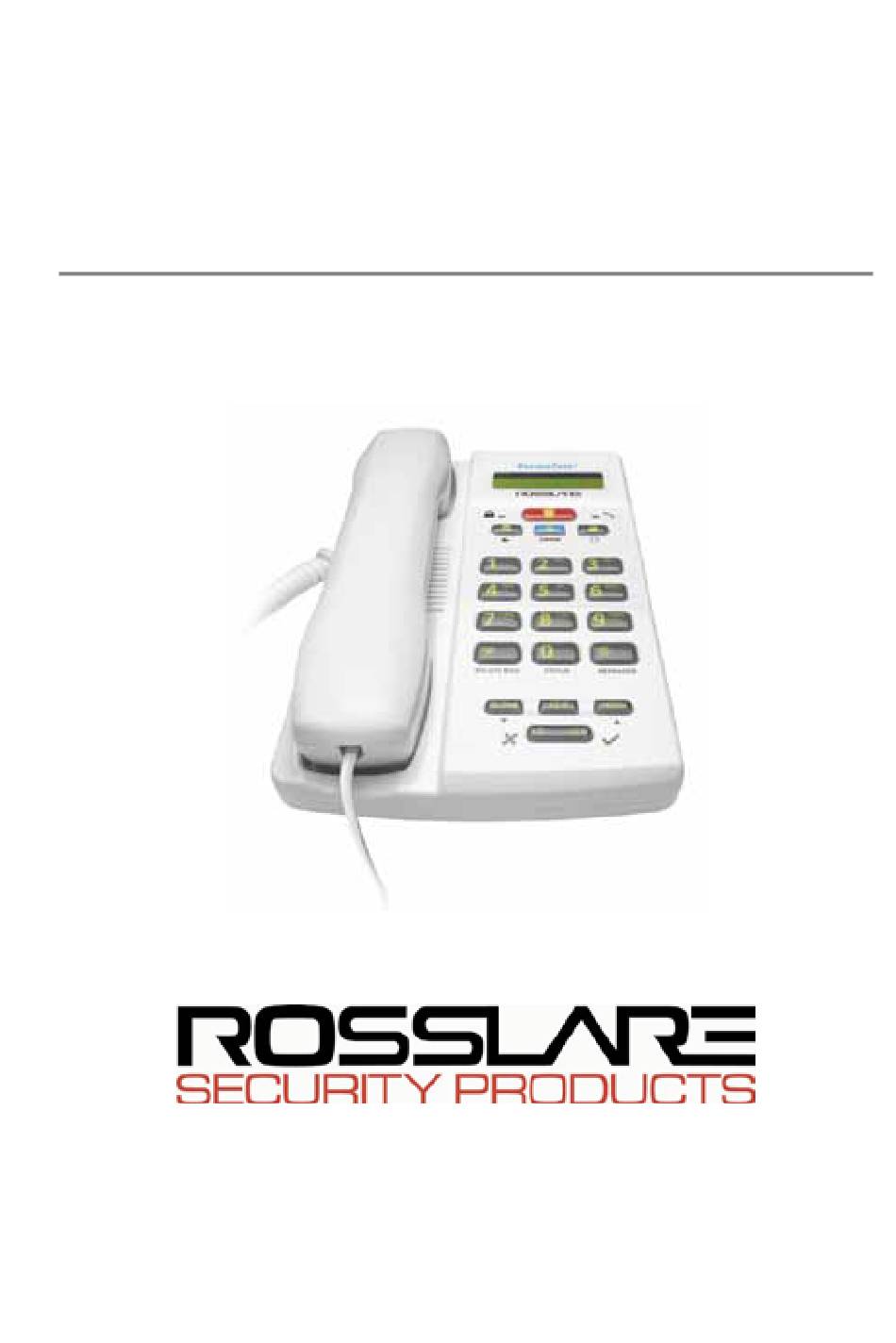

Elderly Care Telephone -
Wireless Emergency System
User Manual
June 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-03V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare SP-03V2

Summary of Contents for Rosslare SP-03V2

  • Page 1 SP – 03V2 Elderly Care Telephone - Wireless Emergency System User Manual June 2011...

  • Page 3: Table Of Contents

    6. Pill Reminder ............27 7. Security Panel Behavior and Modes of Operation .. 32 7.1 Alarm Mode ............... 32 7.2 Arming Options ..............33 7.3 Disarming Process ............. 36 7.4 Bypass/Un-bypass Zone ............. 37 SP-03V2 User Manual Page ii...
  • Page 4 8.1 Siren ................... 42 8.2 Performing an Emergency Call ......... 42 8.3 Entering the Duress Code ..........43 8.4 Enabling Forced Hang up ..........43 Appendix A. Limited Warranty ........45 Appendix B. Technical Support ........47 Page iii SP-03V2 User Manual...
  • Page 5 AND THE ACTUAL PRODUCT MAY OCCUR LL WIRING DIAGRAMS ARE INTENDED FOR REFERENCE ONLY PCB( PHOTOGRAPH OR GRAPHIC OF THE ARE INTENDED FOR CLEARER ILLUSTRATION AND UNDERSTANDING OF THE PRODUCT AND PCB( MAY DIFFER FROM THE ACTUAL SP-03V2 User Manual Page iv...
  • Page 6 Rosslare. Rosslare reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

  • Page 7: Introduction

    Introduction 1. Introduction The SP-03V2 Elderly Care Telephone by Rosslare Enterprises, Ltd. is the ideal wireless security system for home or small office providing intrusion protection. The SP-03V2 Elderly Care Telephone is also the wireless panel used to control, program...

  • Page 8: Telephone Description

    · LCD Display · Sound Indicators 2.1 Front Panel Figure 2: SP-03V2 Elderly Care Telephone Front View The front panel is used as a standard keypad for making regular telephone calls and is also used to enter information when programming other functions including alarms and emergency alerts.

  • Page 9: Front Panel Keys

    For example 3 - D - E - F - 3 etc. · During a call it sends a DTMF code of the pressed number during a call SP-03V2 User Manual Page 8...
  • Page 10 · Phone mode - Enter Quick Dial/Down Dial mode · Idle mode - Navigates "Down" in the menus Speaker · Switches the phone speaker on or off Volume · Increase/decrease speaker volume · Enter No/Yes (same as Cancel/Enter) Page 9 SP-03V2 User Manual...

  • Page 11: Led Indicators

    These are active zones. Press to view active zones. If there is Not ready more than one active zone, press display the next active zone or press the button to see more details. SP-03V2 User Manual Page 10...

  • Page 12: Sound Indicators

    Chime when a zone is activated (violated) during disarming or when receiving a status update. For example the chime is sounded when the zone is triggered. Page 11 SP-03V2 User Manual...

  • Page 13: Making Telephone Calls

    Making Telephone Calls 3. Making Telephone Calls Although the SP-03V2 Elderly Care Telephone has many features it still works as a standard phone. Note: When setting up the system telephone, use a comma (,) to indicate a delay when dialing a number.

  • Page 14: Quick Dialing

    Quick Dial Number. Each Quick Dial Number is represented by the number 0 – 9 with an alphanumeric name of up to 16 characters. The SP-03V2 Elderly Care Telephone allows storage of 10 memorized telephone numbers. To set Quick Dial Numbers: 1.
  • Page 15 6 where more Quick Dial Numbers can be programmed. 16. To store more Quick Dial Numbers repeat steps 7 – 15. To finish storing numbers, press twice. The standard screen is displayed and the system returns to normal operating mode. SP-03V2 User Manual Page 14...
  • Page 16 . The Quick Dial number stored in slot #0 is displayed with the number. 2. Press to scroll through the stored Quick Dial numbers until the required number is located. 3. Press to initiate the call. Page 15 SP-03V2 User Manual...

  • Page 17: Programming Interactive Voice Response

    4. Programming Interactive Voice Response IVR (Interactive Voice Response) feature includes Voice Assistance, where the SP-03V2 Elderly Care Telephone uses a voice to prompt the user. An IVR session can be initiated either by the system or though a remote private telephone call by the user.

  • Page 18: Ivr General Options

    Sets the panel status to "Arm Away". Sets the panel status to "Arm Home". Disarms the panel. Returns to the previous menu. When it is arming, the system announces its status only after the exit delay timeout period. Page 17 SP-03V2 User Manual...

  • Page 19: Ivr Voice Operation Submenu

    Option Description Enables listening in to the call. Enables listening in and talking on the call. 4.5 Receiving IVR Status Report On the IVR Arming submenu press . The report is heard on the telephone. SP-03V2 User Manual Page 18...

  • Page 20: User Menu Options

    If there is no activity for 10 seconds, the system returns to normal operating mode. Once in the MASTER MENU use the keys to browse the submenus. Press to select a menu or submenu item. The sub menu options are as follows: Page 19 SP-03V2 User Manual...

  • Page 21: Changing The Master Code

    The default master code is 1234. Once the master code is changed, the default code is Unusable. To change the master code: 1. Press . The Master Menu option is displayed. 2. Press . The code prompt is displayed. SP-03V2 User Manual Page 20...

  • Page 22: Defining User Codes

    3. Using the numeric keypad enter a valid master code. While entering the code each number entered is indicated by an "*". On completing the code, the EDIT MASTER CODE screen is displayed. If the incorrect code is entered, the system will Page 21 SP-03V2 User Manual...

  • Page 23: Setting Date And Time

    . The Master Menu option is displayed. 2. Press . The code prompt is displayed. 3. Using the numeric keypad enter a valid master code. While entering the code each number entered is indicated by an "*". SP-03V2 User Manual Page 22...

  • Page 24: Setting Private Telephone Numbers

    Up to three private telephone numbers can be set for use when an event occurs. The private telephone number is called by the system to alert the user. To set private telephone numbers: 1. Press . The Master Menu option is displayed. Page 23 SP-03V2 User Manual...

  • Page 25: Viewing Logs

    · History Log – Used to view the history log such as alarms, trouble warnings, etc. · Clear History Log – Used to clear the history log. · Event Log – Used to view the event log. SP-03V2 User Manual Page 24...
  • Page 26 MASTER on the bottom line of the screen, user events are indicated by the word PANEL. 9. Press three times. The standard screen is displayed and the system returns to normal operating mode. Page 25 SP-03V2 User Manual...
  • Page 27 Master events are indicated by the word MASTER on the bottom line of the screen, user events are indicated by the word PANEL. 10. Press three times. The standard screen is displayed and the system returns to normal operating mode. SP-03V2 User Manual Page 26...

  • Page 28: Pill Reminder

    The FAIL REPORT screen is displayed. 7. Press . The PROGRAM REMINDER screen is displayed. 8. Press . The EXIT screen is displayed. 9. Press . The standard screen is displayed and the system returns to normal operating mode. Page 27 SP-03V2 User Manual...
  • Page 29 To set the pill reminder times: 1. Press until the day is displayed on the screen. 2. Press . The PROGRAM REMINDER screen is displayed. 3. Press . The FAIL REPORT screen is displayed. SP-03V2 User Manual Page 28...
  • Page 30 12. Press to scroll to the day to be set. 13. Press to select the day. The screen to enable/disable the day is displayed. 14. Press to toggle between the enable/disable options. Page 29 SP-03V2 User Manual...
  • Page 31 The screen to enable/disable the dosage is displayed. 25. Press to toggle between the enable/disable options. 26. Press to enable the dosage. The screen to set the alert time is displayed. SP-03V2 User Manual Page 30...
  • Page 32 27. Enter the alert time and press . The screen to enter the pill dosage is displayed. 28. Press until the EXIT screen is displayed. 29. Press . The standard screen is displayed and the system returns to normal operating mode. Page 31 SP-03V2 User Manual...

  • Page 33: Security Panel Behavior And Modes Of Operation

    7.1 Alarm Mode The SP-03v2 system enters Alarm Mode according to the various events, zone types and arming mode defined during system setup. 7.1.1. Alarm Mode Armed When armed the system monitors zones for any violations or intrusion events.

  • Page 34: Arming Options

    · The system sends error indication signals if zones are either not ready or not bypassed (assuming that a bypass or forced options are not enabled). Page 33 SP-03V2 User Manual...
  • Page 35 · The system enables switching between arming modes. If the system is currently Armed Home, it accepts an Arming Away command and switch modes without disarming. When the user is at home, the alarm can be set for HOME mode. SP-03V2 User Manual Page 34...
  • Page 36 If Forced Arming is enabled, the system is able to arm when zones are in violation (open) but not defined as bypassed. The system treats zones of this type automatically as bypassed zones for the arming period. These bypassed definitions expire Page 35 SP-03V2 User Manual...

  • Page 37: Disarming Process

    To disarm the system: 1. Press . A prompt to enter the code is heard. 2. Enter the code. The code being entered is indicated by “*”. 3. The system is disarmed. SP-03V2 User Manual Page 36...

  • Page 38: Bypass/Un-Bypass Zone

    Security Panel Behavior and Modes of Operation 7.4 Bypass/Un-bypass Zone The SP-03v2 system can be set to enable or disable zone bypass. In auto bypass, the system functions as follows: · If disabled (default) and zones are opened (doors, windows) or unsupervised, the system does not allow arming until all zones are closed.
  • Page 39 To clear the bypass zones: 1. Press . The Master Menu option is displayed. 2. Press . The code prompt is displayed. SP-03V2 User Manual Page 38...
  • Page 40 To activate the bypass zones: 1. Press . The Master Menu option is displayed. 2. Press . The code prompt is displayed. Page 39 SP-03V2 User Manual...

  • Page 41: Entry/Exit Delay Options

    Entry and Exit actions delay the alarm mode and allow the system to ignore zone violations, as described below. 7.5.1. Entry Delay Entry delay allows the user time to open the door and reach the panel to disarm the system. SP-03V2 User Manual Page 40...
  • Page 42 10 seconds of the delay period. The Exit Delay period is configurable from 1 second up until 99 seconds. The default Exit Delay period is 30 seconds. Page 41 SP-03V2 User Manual...

  • Page 43: Emergency And Panic Functionality

    Disarm (dual pulse) Emergency alarm Trouble alert 8.2 Performing an Emergency Call The SP-03v2 system enables the definition of an emergency number (during installation) that is called when the user triggers the emergency function. To activate the emergency function: 1. Press for 2 or more seconds.

  • Page 44: Entering The Duress Code

    2. Enter the code. The code being entered is indicated by “*”. 8.3 Entering the Duress Code The SP-03v2 system provides a duress code function that is used to disarm the system when it is under threat. The specific and unique code is defined during installation and given to the user to memorize.
  • Page 45 Up to 20 minutes can be set. 9. Press to set time. The FORCED HANGUP screen is displayed. 10. Press . The standard screen is displayed and the system returns to normal operating mode. SP-03V2 User Manual Page 44...

  • Page 46: Appendix A. Limited Warranty

    2 years (24 Months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty.
  • Page 47 This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, or to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE.

  • Page 48: Appendix B. Technical Support

    Technical Support Appendix B. Technical Support Asia Pacific, Middle East, Africa Rosslare Security Products Headquarters 905-912 Wing Fat Industrial Bldg, 12 Wang Tai Road, Kowloon Bay Hong Kong Tel: +852 2795-5630 Fax: +852 2795-1508 E-mail: support.apac@rosslaresecurity.com United States and Canada...
