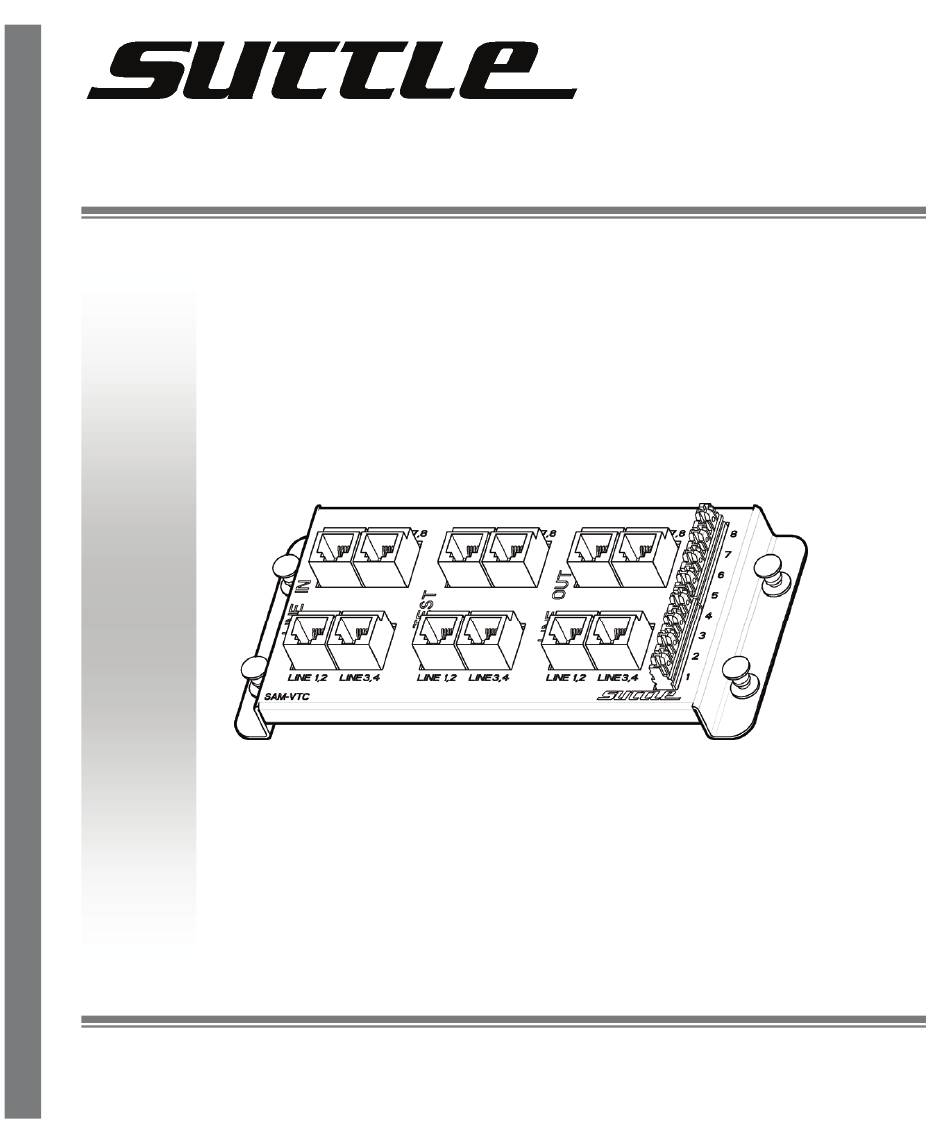

- Page 1 SAM-VTC Voice-Test Module User Guide 1001 East Hwy 212 Toll Free: 1-800-852-8662 Hector, MN 55342 Local: 1-320-848-6711 www.suttleonline.com Fax: 320-848-2361...
- Page 2 Module Installation Mounting: Align the mounting pins with the grid holes on the back of the enclosure. s on the back of the enclosure. With the mounting pin plungers in the “out” position, press the unit into With the mounting pin plungers in the “out” position, press the unit into the grid in the desired location, secure by pushing the plungers in.
-
Page 3: Important Information
Brown White/Brown NOTE: one pair of wires corresponds Green to each line from the phone company. White/Green (Line 1 = blue, Line 2 = orange, Orange Line 3=green, Line 4=brown). White/Orange Blue White/Blue The wire pair locations can be recorded on the wiring label supplied with this module. - Page 4 p/n 100963-00 Rev. B 1001 East Hwy 212 Toll Free: 1-800-852-8662 Hector, MN 55342 Local: 1-320-848-6711 www.suttleonline.com Fax: 320-848-2361...
