Summary of Contents for Elija TFE03 Series

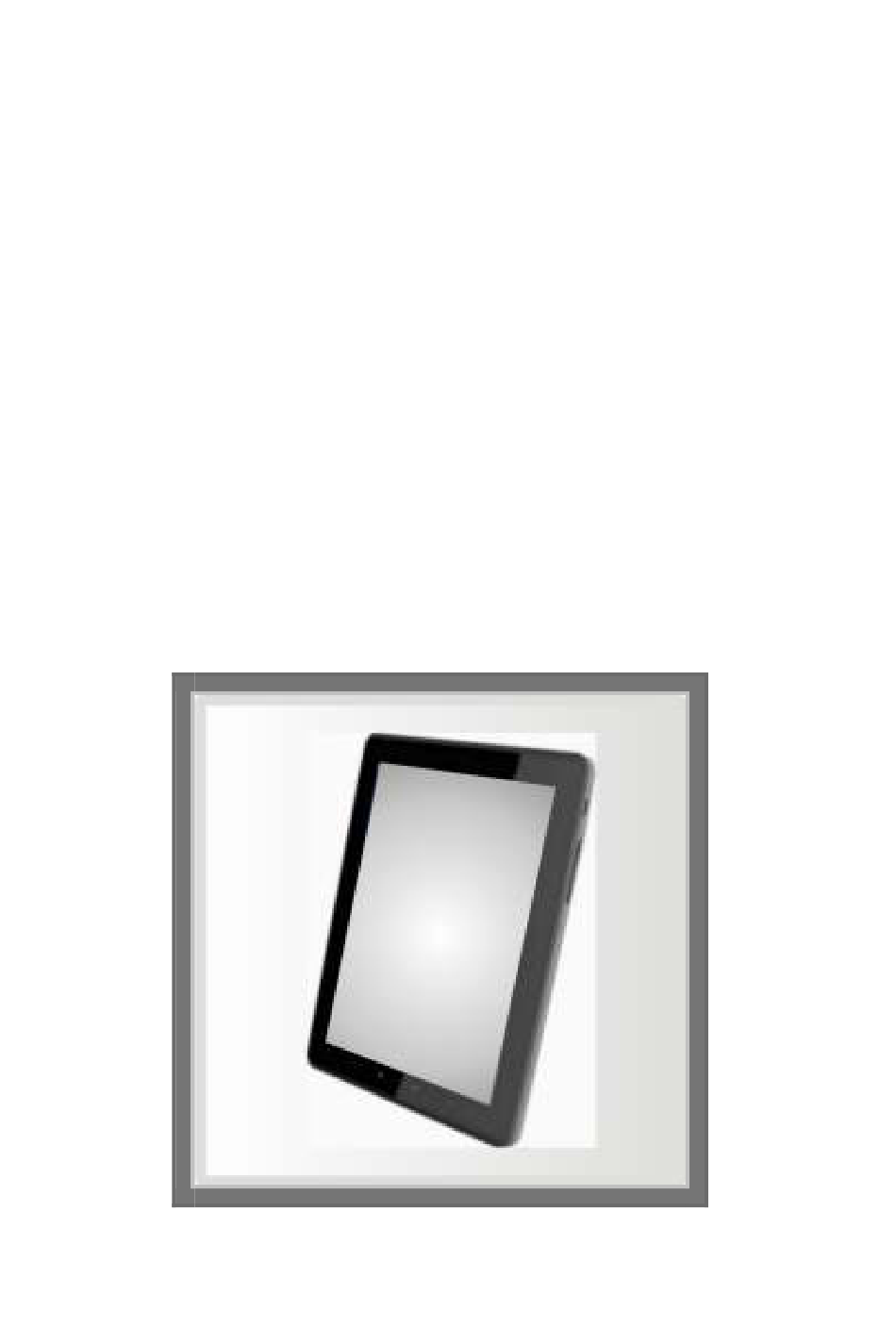

  • Page 1 Elija TFE03 Series User Guide...
  • Page 2 ablet PC User Guide Copyright © 2011 All Rights Reserved - Printed in Taiwan Tablet PC User Guide Original Issue: 2011/10 This manual guides you in setting up and using your new Tablet PC. Information in this manual has been carefully checked for accuracy and is subject to change without notice.
  • Page 3 Tablet User Guide 4. Do not use this product near water, for example, near a bathtub, wash bowl kitchen sink or laundry tub, in a wet basement or near a swimming pool. 5. Avoid using a telephone (other then a cordless type) during an electrical storm.
  • Page 4 ablet PC User Guide If the product displays a distinct change in performance, it indicates a need for service. If the equipment has obvious sign of breakage. 12. The unit can be operated at maximum ambient temperature of 40ºC. 13. Li-Ion battery is vulnerable, do not charge it with other power adapter, or it may cause fire or explosion 14.
  • Page 5 Tablet User Guide 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. Ensure that no liquid enters the system. Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 ablet PC User Guide must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device was tested for typical hand held operations with the device contacted directly to the human body to the back side of the tablet pc.
  • Page 7 Tablet User Guide < EN 301 489-17 V2.1.1: 2009 and EN 301 489-1 V1.8.1: 2008 < EN 62311: 2008 This device is a 2.4GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries under the following conditions and/or with the following restrictions: <...

  • Page 8: About Your Tablet Pc

    ablet PC User Guide About Your Tablet PC ongratulation for having purchased your Tablet PC. This tablet PC can go anywhere you go. Use it like a pad of paper. You can write, sketch, and view material directly on the screen.

  • Page 9: About Your User Guide

    Tablet User Guide About Your User Guide elcome to your Tablet PC User Guide. This manual gives you the information you need to maximize the use of your Tablet PC. Read this guide to familiarize yourself with this Tablet PC and its features. This manual is divided into eight chapters.

  • Page 10: Table Of Contents

    ablet PC User Guide Table of Contents ABOUT YOUR TABLET PC ..............8 ABOUT YOUR USER GUIDE..............9 INTRODUCTION ................13 ..............14 EATURE IGHLIGHT PC............15 NPACKING THE ABLET PC ..........16 IEW OF THE ABLET PC......... 17 RONT IEW OF THE ABLET Android Hot-Key (Home / Menu / Return) ......
  • Page 11 Tablet User Guide Shortcut Controls on Home-screen ........33 Extension Screen............... 35 About the Apps Menu..............35 Customizing the Home Screen ..........39 Open the Widgets menu............39 Open the Apps menu ..............40 Open the Wallpapers menu ............. 41 Open the More menu ..............
  • Page 12 ablet PC User Guide System Memory ................. 66 LCD Display................66 VGA System ................66 Storage ..................66 Audio System ................66 Sensors ..................67 I/O Ports ..................67 WebCam ..................67 Wireless devices................ 67 AC/DC Power Supply Adapter ..........67 OS Support .................

  • Page 13: Introduction

    Introduction 1 Introduction our Tablet PC is a very thin light-weight designed for mobility, it is a natural traveling companion. With your Tablet PC, you can access office networks and e-mails at anytime, from any location. Your Tablet PC makes an ideal choice for use in the schoolroom, at home, on the road and all other occasions.

  • Page 14: Feature Highlight

    ablet PC User Guide Feature Highlight Before we go to identify each part of your Tablet PC, we will first introduce you to other notable features of your Tablet PC. Processing Unit Your tablet runs on Freescale i.MX53 at 1.0 Ghz ARM Cortex-A8 •...

  • Page 15: Unpacking The Tablet Pc

    Introduction Audio System Provides one headphone out audio port. Unpacking the Tablet PC Your Tablet PC comes securely packaged in a sturdy cardboard shipping carton. Upon receiving your Tablet PC, open the carton and carefully remove the contents. The shipping carton should also contain the following items: The Tablet PC An AC Adapter...

  • Page 16: The Top View Of The Tablet Pc

    ablet PC User Guide The Top View of the Tablet PC The Tablet PC is compact with features on every side. First, look at the top view of the system. 1. Power Button Power On/Resume Button • Switches the computer power on and off, or resumes whenever it is in Suspend mode.

  • Page 17: The Front View Of The Tablet Pc

    Introduction The Front View of the Tablet PC The following sections describe front view features. 1. 2M Pixel Camera 2. 2-point Capacitive Touch Screen 3. Android Hot-Key (Home / Menu / Return) Webcam • The built-in camera can be used as a communication device for allowing you to capture images, record videos, and have video chats.

  • Page 18: Android Hot-Key (Home / Menu / Return)

    ablet PC User Guide Touch-enabled Widescreen 2-point Capacitive Touch Screen • This device equipped with 9.7” touch screen. With 4:3 aspect ratio capacitive multi-touch screen, it gives you better office document experience for faster and easier input. You may make adjustments to your work field at your fingertips.

  • Page 19: The Right Panel Of The Tablet Pc

    Introduction Home • Press this hot-key for back to the home screen. Menu • Helps you fly through your application without digging through the procedures. For detail, please see section 3.3 “Menu Controls”. Return • Lets you draw back to the previous screen. The Right Panel of the Tablet PC The system features at the right panel of your Tablet PC are described as followings.

  • Page 20: The Left Panel Of The Tablet Pc

    ablet PC User Guide Volume Control • Decreases or Increases the audio volume by pressing the volume control at its left or right end. Mini HDMI • Lets you connect to the HDMI peripheral device for digital audio/video transmitting. The Left Panel of the Tablet PC The left panel of your Tablet PC provides the features shown in the following figure.

  • Page 21: The Bottom Side Of The Tablet Pc

    Introduction 2. Micro SD Card Slot with cover 3. Mini USB Micro SD Card Slot • The card slot supports Micro SD memory card format for extra storage media. Mini USB • Lets you connect mini USB port for fastest I/O data transmission The Bottom Side of the Tablet PC The bottom side of the Tablet PC offers the following features.

  • Page 22: The Rear Side Of The Tablet Pc

    ablet PC User Guide Built-in Stereo Speakers • Integrated left and right mini stereo speakers for sound and audio output for your multimedia presentations or listening pleasure. 1.5W x 2 Headphone Jack • Lets you plug in a stereo headphone, powered speakers, or earphone set with 1/8 inch phono plug for personal listening.

  • Page 23: Tablet Accessories

    Introduction GPS Antenna • This product provides GPS Antenna for Data communication, and location information in all weather, anywhere on or near the Earth. 2M pixel Camera • With built-in Camera, it’s easy to stay in touch with your friends and family.
  • Page 24 ablet PC User Guide...

  • Page 25: Getting Started

    Getting Started Getting Started our Tablet PC is designed and pre- configured for easy setup and use. This chapter describes the installation steps you should follow to get the Tablet PC up and running as quickly as possible.

  • Page 26: Preparing To Setup Your Tablet Pc

    ablet PC User Guide Preparing to setup your Tablet PC Before attempting to set up your Tablet PC, you should: find a flat open area on your desk to position your Tablet PC. • place a soft item like the computer packaging bag on the desk for •...
  • Page 27 Getting Started Whenever possible, it is advisable to always have the AC adapter connected to the Tablet PC. This ensures continuous power supply and prevents any data loss incurring from sudden power breakdown. For the power supply of this equipment, an approved power cord has to be used.

  • Page 28: Starting Your Tablet Pc

    ablet PC User Guide Starting Your Tablet PC ONNECTING THE WIRED KEYBOARD Connect the USB cable on the keyboard to a mini USB port on the left panel of the computer. You can use your Tablet PC as a conventional full-featured PC.

  • Page 29: Using The Touch Screen

    Getting Started After a few seconds, the computer’s display will turn on. SING THE TOUCH SCREEN Your computer is equipped with a touch screen which has a high sensitivity level. You can control your PC with the touch of your finger. Your fingertips work as the hand-held mouse pointer.

  • Page 30: Turning Off Your Tablet Pc

    ablet PC User Guide Turning off Your Tablet PC If you are not going to use the Tablet PC, please turn off the power button of the computer, the screen appears power off message “Would you like to shut down ?” press OK to turn off your tablet PC.

  • Page 31: Using Your Tablet Pc

    Using Your Tablet PC Using Your Tablet PC his chapter describes how to operate the Tablet PC that you normally would use in your day-to-day computer work. If you are new to computers and to your operating system, you also need to read the manual for the operating system on how to work with your Tablet PC.

  • Page 32: Starting Your Operating System

    ablet PC User Guide Starting Your Operating System The operating system is the software foundation for your computer. It is the platform for all your software application programs to run on. The computer comes with an operating system pre-installed and no need to be setup during initial use.

  • Page 33: Adjusting The Screen Orientation

    Using Your Tablet PC DJUSTING THE CREEN RIENTATION The screen orientation changes automatically to portrait or landscape view depending on how you hold the device. To fix the screen orientation to current view, please uncheck the Auto-rotate screen. For executing this function, press the Apps button and touch Settings >...
  • Page 34 ablet PC User Guide Open Google Text Search; Open Google Voice search Display the recent apps Return to Home Return to the previous screen Open the Add to Home screen menu Open Apps Menu Activate the GPS function Connect USB cable to another PC Open Android debug function Display the current time Wi-Fi signal strength during operation...

  • Page 35: Extension Screen

    Using Your Tablet PC XTENSION CREEN The Home screen also provides 4 more extension screens where you can fill with shortcuts, widgets and other items as you like. To navigate across the Home and extension screens, flick your finger to the left or right on the screen..
  • Page 36 ablet PC User Guide Books - Lets you Browser - Lets read on-line you initiates the electronic book web browser. after entering authorized Google account. Calculator - Calendar - Lets Offers you the you update, add, calculator for re-configure or calculation.
  • Page 37 Using Your Tablet PC Camera - Click Camera on the Apps menu to take pictures or record videos. You can use either the front camera or the back camera to take pictures or record videos. The image files and video files will be saved to Gallery automatically.
  • Page 38 ablet PC User Guide Latitude - Lets Maps - Lets you you fix location by use on-line GPS or Wireless Google Maps Networks. provided by Google Market - Lets you Messaging - access or Allows you to download any transmit any application from sending or Android Market...

  • Page 39: Customizing The Home Screen

    Using Your Tablet PC Spare Parts - Sound Record - Advises you parts of Provides you the status information, sound record or adjust system program for configuration. recording sound. USTOMIZING THE CREEN To personalize the Home screen, you can use your own picture as the wallpaper, add widgets, or shortcuts to your favorite applications.

  • Page 40: Open The Apps Menu

    ablet PC User Guide Open the A PPS MENU The Apps menu has 1 extension screen and includes Books, Browser, Calculator, Calendar, Camera, Clock, Contacts, Downloads, Email, Gallery, Gmail, Google Search, Latitude, Maps, Market, Messaging, Movie Studio, Music, Navigation, Places, Root Explorer, Screenoff, Settings, Skype, Sound Record, Spare Parts, StabilityTest v2, Talk, Voice Search, YouTube for your selection.

  • Page 41: Open The Wallpapers Menu

    Using Your Tablet PC Open the Wallpapers menu The Wallpapers menu includes Gallery, Live Wallpapers, Wallpapers for your selection.

  • Page 42: Open The More Menu

    ablet PC User Guide Open the More menu The More menu includes Bookmark, Contact, Direct dial, Direct message, Music playlist, Select settings for your selection.

  • Page 43: Changing The Wallpaper

    Using Your Tablet PC Changing the wallpaper 1. Touch the Customized desktop icon on the Home screen, and then touch Wallpapers. 2. Flick through the list to select a desired wallpapers. The selected wallpaper appears on the screen.

  • Page 44: Adding Widgets

    ablet PC User Guide Adding Widgets 1. Touch the Customized desktop icon on the Home screen, and then touch Widgets. 2. Flick through the list to select a desired widget. (e.g. widget clock) 3. Touch and hold the widget, and drag it to your desired spot on the Home screen until it magnifies Adding application shortcuts 1.
  • Page 45 Using Your Tablet PC...

  • Page 46: Select Language

    ablet PC User Guide ELECT ANGUAGE This system lets you select the user interface with specific language in operating all the functions. To change the user interface from other language to English version, please follow the steps below: 1. Press the Apps menu to show the all the applications. 2.
  • Page 47 Using Your Tablet PC 3. Choose the select language item to show a list of various languages. 4. Click the language option English for changing the UI interface to English version.

  • Page 48: Connecting To A Wi-Fi Network

    ablet PC User Guide 5. Press the return icon at the left corner on the screen and you can see all the User Interface displays English version. ONNECTING TO A ETWORK To browse the Internet or use other web applications, you need to connect the device to a Wi-Fi network first.

  • Page 49: Connecting To A Bluetooth® Device

    Using Your Tablet PC ® D ONNECTING TO A LUETOOTH EVICE You can share files between your TFE03 device and a Bluetooth- enabled device using Bluetooth technology. 1. Press the Apps button and touch Settings > Wireless & networks > Bluetooth to select the check box to turn on the Bluetooth function.

  • Page 51: Connecting To Peripherals

    Caring for Your Tablet Connecting to Peripherals his chapter describes how you attach peripheral devices to your Tablet PC. You can connect an external monitor and keyboard, or other peripheral device. You will learn how to use these peripheral devices with the step-by- step instructions depicted in this chapter.

  • Page 52: Using The Mini Usb Port

    ablet PC User Guide Using the Mini USB Port USB (Universal Serial Bus) is a hardware interface that enables you to connect multiple devices (such as printers, mice, keyboards, storage devices, digital cameras, and video conference cameras, etc.) to your Tablet PC, and up to 127 devices can be attached. Besides, USB’s hot swap capability allows everything to be plugged in and unplugged without turning the system off.

  • Page 53: Using A Mini Hdmi Port

    Caring for Your Tablet Depending on your operational requirements, you may need to disable other ports in order to release system resource for the mini USB port. The USB bus distributes 0.5 amps (500 milliamps) of power through each port. For the purpose of power saving, please disconnect your USB device while not in use.
  • Page 54 ablet PC User Guide The Tablet PC must be powered off or suspended while the monitor is being connected. Although you can connect the external Monitor without power off the computer and the external monitor, however, it is harmful to both devices and it shortens the life of these devices.

  • Page 55: Using The External Audio System

    Caring for Your Tablet Using the External Audio System At the bottom panel of your Tablet PC, you will find the built-in audio ports. You can connect earphone or powered speaker. To connect to an audio jack: 1. Locate the headphone port that you want to use to the target device.

  • Page 56: Using The Wireless Lan

    ablet PC User Guide Using the Wireless LAN This computer integrates built-in 802.11 b/g/n wireless LAN module. IEEE 802.11b standard supports 11 Mbps wireless connection speed. However, IEEE 802.11g support 54MHz, 802.11n up to 150Mbps wireless connection speed respectively, and is backward compatible with the slower 802.11b.
  • Page 57 Caring for Your Tablet Removing Mini SD Memory Card To remove the mini SD memory card, you should only push-push out the card by finger, there is no release button for mini SD memory slot.

  • Page 58: Caring For Your Tablet Pc

    ablet PC User Guide Caring for Your Tablet PC our Tablet is equipped with the latest features in mobile computing technology. If properly cared for and maintained, the performance and reliability of the computer can be greatly prolonged.

  • Page 59: Important Safety Instructions

    Caring for Your Tablet Important Safety Instructions Tablet PC takes the most beating from end users. This section gives you detailed information about how to maintain a safe working environment while using the Tablet PC. You can maintain its condition and performance by following these guidelines.
  • Page 60 ablet PC User Guide If the Tablet PC is not in use for a long time, disconnect it from • mains to avoid possible damage by transient over-voltage. Never pour any liquid into openings as this may cause fire or •...

  • Page 61: Cleaning Your Tablet Pc

    Caring for Your Tablet Cleaning Your Tablet PC Your Tablet PC needs occasional cleaning to prolong their life. Please read this section carefully to ensure proper care of Tablet PC. When it is necessary to clean it, use a soft, lint-free cloth, slightly dampened with a mild detergent solution or use the contents of any commercially available computer cleaning kit.

  • Page 62: When You Travel

    ablet PC User Guide Turn off your Tablet PC. • Disconnect the Tablet PC power cord from the bottom panel of • the computer. To clean the Tablet PC case, use a soft cloth dampened with • water to wipe the case clean, and do not use solvents or abrasives.

  • Page 63: Storing Your Tablet Pc

    Caring for Your Tablet Storing Your Tablet PC If you need to store your Tablet PC for an extended period of time, unplug your Tablet PC from the electric outlet and remove all connected cables before any action is taken. When transporting your Tablet PC, we recommend you pack the Tablet PC in its original packaging.

  • Page 65: Appendix A System Specification

    System Specification APPENDIX A System Specification his appendix provides technical specifications for the computer. Depending on the specific model, specifications may vary.

  • Page 66: Processor Unit

    ablet PC User Guide ROCESSOR Freescale iMAX53 processor (ARM Cortex-A8), 1.0Ghz • 256KB L2 Cache. • YSTEM EMORY DDR3 1G (max.) • LCD D ISPLAY 9.7” panel with Resolution 1024 x 768 • Capacitive 2-point Multi-touch Screen • VGA S YSTEM Maximum 16 million colors on LCD display at 1024 x 600 •...
  • Page 67 System Specification ENSORS G-sensor, Geomagnetic Sensor and Gyroscope. • I/O P ORTS 1 x mini HDMI port • 1 x mini USB port • 1 x Earphone port • 1 x micro SD slot • 1 x volume control • Camera Module for CMOS 2.0M USB 2.0 Media Version (Front •...
  • Page 68 ablet PC User Guide ATTERY Embedded 7.4V 3700mAh Polymer battery • EIGHT AND IMENSI ON 244.8(H) x 191.7 (W) x 11.8 (D) mm • Approximately 660g •...
