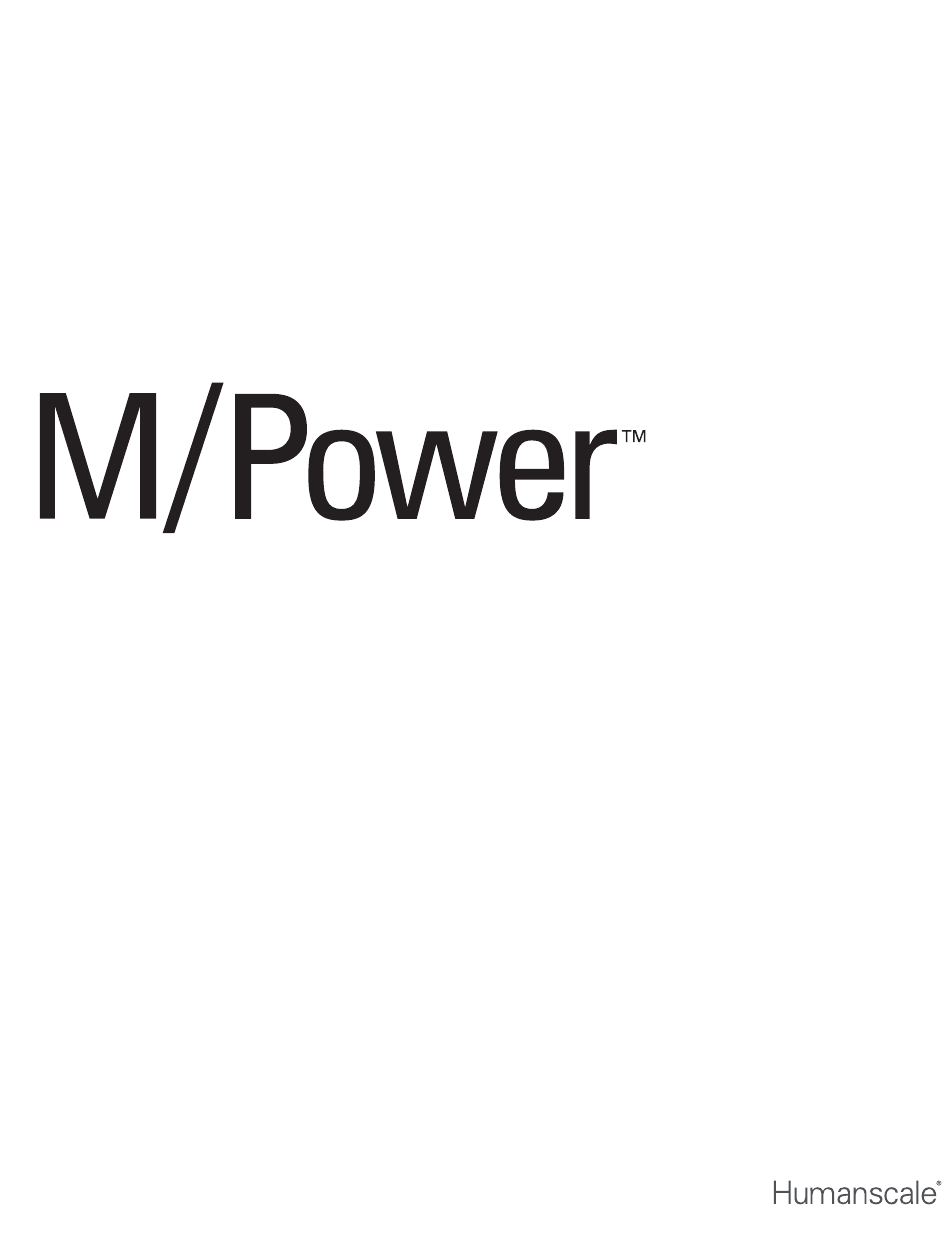

  • Page 1 USER GU IDE...

  • Page 2: Table Of Contents

    Table of Contents PARTS REQUIRED IDENTIFYING COMPONENTS INSTALLING M/POWER BASE ATTACHING A MONITOR ARM ELECTRICAL SPECIFICATIONS...

  • Page 3: Parts Required

    Humanscale Part Number 813-xxxx INSTA LL A ION GUID ELINES This product is intended to be used with Humanscale's Moniotor Arm product line and the following office desk styles placed on a non-skid surface: 1. Systems Furniture with panel hung surfaces 2.

  • Page 4: Identifying Components

    ID ENT IF Y ING COMP ONENT S ID ENT IF Y ING COMP ONENT S Front Panel Rear Panel Front Panel Rear Panel Component Description USB A charging port Supports charging 5V, 2.4Amax USB A charging port Supports charging 5V, 2.4Amax Component Description USB Type-C charging port...
  • Page 5 ID ENT IF Y ING COMP ONENT S ID ENT IF Y ING COMP ONENT S Left Panel Right Panel Left Panel Right Panel Component Description Kensington Slot To secure unit from theft 3.5 mm TRRS jack To connect auxiliary audio cable out Component DC in 19V / 2.21A DC to power M/Power...

  • Page 6: Installing M/Power Base

    INSTALLING M/POWER ONTO EDGE OF TABLE INSTALLING M/POWER ONTO EDGE OF TABLE Caution: Maximum weightload of M/Power is as follows: M2: 20 lbs Caution: Maximum weight load of M/Power is as follows: M2.1: 15.5 lbs. M8.1: 28 lbs. M10: 40 lbs. M/Flex: 60 lbs. Total. M8: 40 lbs.
  • Page 7 ST EP 3 Reattach Clamps • Secure the lower bracket to the larger bracket reusing the two M6 screws (fig. E) ST EP 3 Reattach Clamps • Secure the lower bracket to the larger bracket reusing the two M6 screws (fig. E) Reattach Clamps •...

  • Page 8: Attaching A Monitor Arm

    ST EP 2 ST EP 2 ST EP 2 Tighten Clamp Tighten Clamp Tighten Clamp • • Tighten both set screws into bracket to a snug fit (fig. A) Tighten both set screws into bracket to a snug fit (fig. A) •...
  • Page 9 • Reinsert the set screw and tighten until it seats and the 180º stop* is engaged (*arm won't be able to swivel past the rear desk edge) ST EP 3 • Proceed to the "Attach VESA Bracket to Monitor" step in the main M8 instruction guide Plug in power cable •...

  • Page 10: Electrical Specifications

    —Consult the dealer or an experienced radio/TV technician for help. The FCC requires the user be cautioned that any changes or modifications made to this device that are not expressly approved by Humanscale may void the user's authority to operate the equipment. Humanscale...
