Sound Freaq SFQ-03 User Manual

Sound stack made for ipod/iphone/ipad
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sound Stack
SFQ-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFQ-03 and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Freaq SFQ-03

Summary of Contents for Sound Freaq SFQ-03

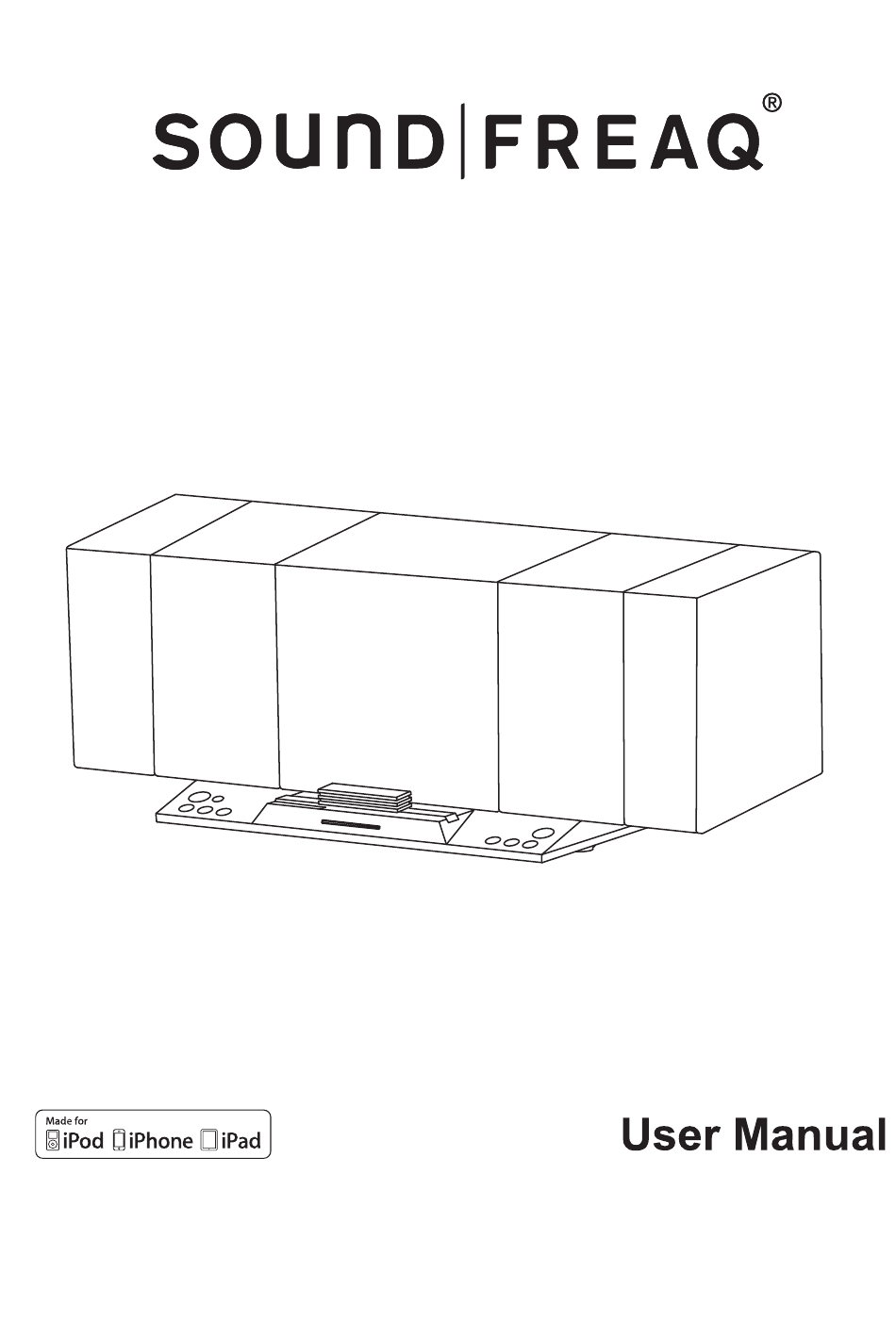

  • Page 1 Sound Stack SFQ-03...
  • Page 2 Safety Information 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified The lightning flash with arrowhead symbol, within an equilateral triangle is intended to by the manufacturer.
  • Page 3 However, there is no guarantee that interference will not occur in a particular installation. If this For compatibility between the SFQ-03 system equipment does cause harmful interference to and another device with Bluetooth technology, radio or television reception, which can be consult the device's documentation and dealer.
  • Page 4 CAUTION - Proper Installation Information for Users on Disposal of Old Equipment Install the system in a place which is level, dry  and neither too hot nor too cold. The appropriate [European Union] temperature is between 5 C and 35 This symbol indicates that the Install the system in a location with adequate ...

  • Page 5: Table Of Contents

    Contents Getting Started Package Contents Installing/Replacing the Batteries Connecting the AC Adapter Using the Remote Control System Overview Front View Back View Remote Control Selecting the Sound Source Playing back from iPad/iPhone/iPod Setting an iPod on the Unit Listening to an iPod Charging an iPod Playing back via Bluetooth Downloading the SoundFreaq App...

  • Page 6: Getting Started

    Getting Started Package Contents Examine whether the following package contents are all included: DOCK PAIR OPTICAL VOLUME Switch Mode Main Unit Remote Control FM Antenna Power Supply C 2025 Lithium Coin Battery CR2025 Adapter Cable It is loaded on the remote ...

  • Page 7: Connecting The Ac Adapter

    Connecting the AC Adapter 1. Insert the Switch Mode Power Supply into WARNING! For optimal performance, use only 20V/4.47A DC IN jack of the unit. the supplied AC adapter. 2. Insert one end of the Adapter Cable into the Ensure that power supply outlet matches with ...

  • Page 8: Using The Remote Control

    Using the Remote Control Using the remote control Storing the remote control Remove the insulation sheet before using for A remote control storage location is designed  the first time. on the back of the unit. The remote control can be magnetized into the storage location easily Aim the remote control at the IR sensor on ...

  • Page 9: System Overview

    System Overview Front View Back View 1. SOURCE button 9. U-Cubed button Toggle among iPod, AUX, Optical and Press to activate or deactivate the U-Cubed Bluetooth modes. (High Definition Wide Stereo) sound effect. (Previous) / (Next) button 10. Vol +/- button Skip to the previous/next track in iPod and Press to increase (+) or decrease (-) the Bluetooth modes.

  • Page 10: Remote Control

    Remote Control (On/Standby) button Switch between standby mode and power-on mode. 2. DOCK button Switch to iPod mode. 3. Bluetooth button Switch to Bluetooth mode. 4. PAIR button Build a Bluetooth connection with a Bluetooth-enabled device. 5. OPTICAL button Switch to optical mode. 6.

  • Page 11: Playing Back From Ipad/Iphone/Ipod

    Playing back from iPad/iPhone/iPod Note：　 In this user manual, “iPod” is used as a Notes: general reference to functions on an iPod, iPhone If you are docking your device with a case,  or iPad, unless otherwise speci ed by the text or you can remove the rubber pad to secure a illustrations.

  • Page 12: Charging An Ipod

    Charging an iPod Notes for Caring Your iPod: The connector plug is protected with a cover The battery of the iPod is always charged  when it is first purchased. Please remove the through the unit when it is connecting to a wall cover before operating the unit.

  • Page 13: Playing Back Via Bluetooth

    Playing back via Bluetooth Downloading the SoundFreaq App Notes: If your mobile phone supports A2DP protocol,  its music will play through the unit. We have developed an App to give you You can build a Bluetooth connection with a full control from your iPhone/iPad/iPod ...

  • Page 14: Using Multiple Bluetooth Devices

     few seconds), the music will come out indicator turns solid after blinking for 3 from the SFQ-03. If not, retry to select the minutes, the pair was unsuccessful. “Use as Audio Device (Stereo)” once again. The Sound Quality should be good.

  • Page 15: Listening To Tuner

    Listening to Tuner The FM radio function can be accessed by: 1) the remote App, when Bluetooth connection has been built; 2) the remote App, when the iPad/iPhone/iPod touch is set on the unit. The operation interface of remote App software is similar to the remote control.

  • Page 16: Playing Back From Optional Components

    Playing back from Optional Components Listening to an External Audio Device You can enjoy the sound from an optional 1. Turn the unit power on. component such as a portable digital music 2. Set the volume to the minimum position. player through the speakers of this unit.

  • Page 17: Activating "U-Cubed" Sound Effect

    Activating "U-Cubed" Sound Effect "U-Cubed" is an proprietary technology designed to create an ultra wide stereo sound field in digital music systems. With exceptional natural sound reproduction of high definition and fidelity, we create a listening experience where you feel like your speakers are separated much more than they are.

  • Page 18: Troubleshooting

    Troubleshooting Check this list for a possible troubleshooting solution before calling for service. In These Cases Check the following points Power does not come on. • AC adapter is not inserted securely. Plug in securely. • Is the selected dock adapter compatible to your iPad/iPhone/iPod? Cannot set the •...

  • Page 19: Technical Specifications

    Technical Specifications SFQ-03 Model Type Sound Stack Support Bluetooth Bluetooth 1.2, 2.0 and 2.1 compliant Support Profile A2DP Input Sensitivity/Impedance AUX Input 1200 mV Band Tuning Range 87.5 ~ 108.0 MHz Tuner Frequency Step 100 KHz Preset Stations Input Terminal...
  • Page 20 Save this manual...
  • Page 21 4. Suivez toutes les instructions. 5. N'utilisez pas cet appareil près de l'eau. Pour assurer la compatibilité entre le système SFQ-03 et un autre appareil avec la technologie 6. Nettoyez-le avec un linge sec uniquement. Bluetooth, consultez la documentation de l'appareil et renseignez-vous auprès du 7.
  • Page 22 8. Do not install near any heat sources such as radiators, heat registers, stoves, or For compatibility between the SFQ-03 system and another device with Bluetooth other apparatus (including amplifiers) that produce heat. technology, consult the device's documentation and dealer. In some countries, there may 9.
