Model:-FS-2LAN+1POTS+WiFi Dual Mode
HGU User Manual V1.0

Chapter1: Overview

1.1 Product Description

Thanks for choosing the 2LAN+1POTS+WiFi Home Gateway Unit. The terminal devices are
designed for fulfilling FTTH and triple play service demand of fixed network operators or cable
operators. These boxes are based on the mature GPON and Gigabit EPON technology, which have
high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3, and high
quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for
different service. And they are fully compliant with GPON and EPON technical regulations such as
ITU-T G.984.x, IEEE802.3ah and technical requirement of EPON Equipment from Telecom. Dual
mode HGU can detect and exchange PON mode automatically.

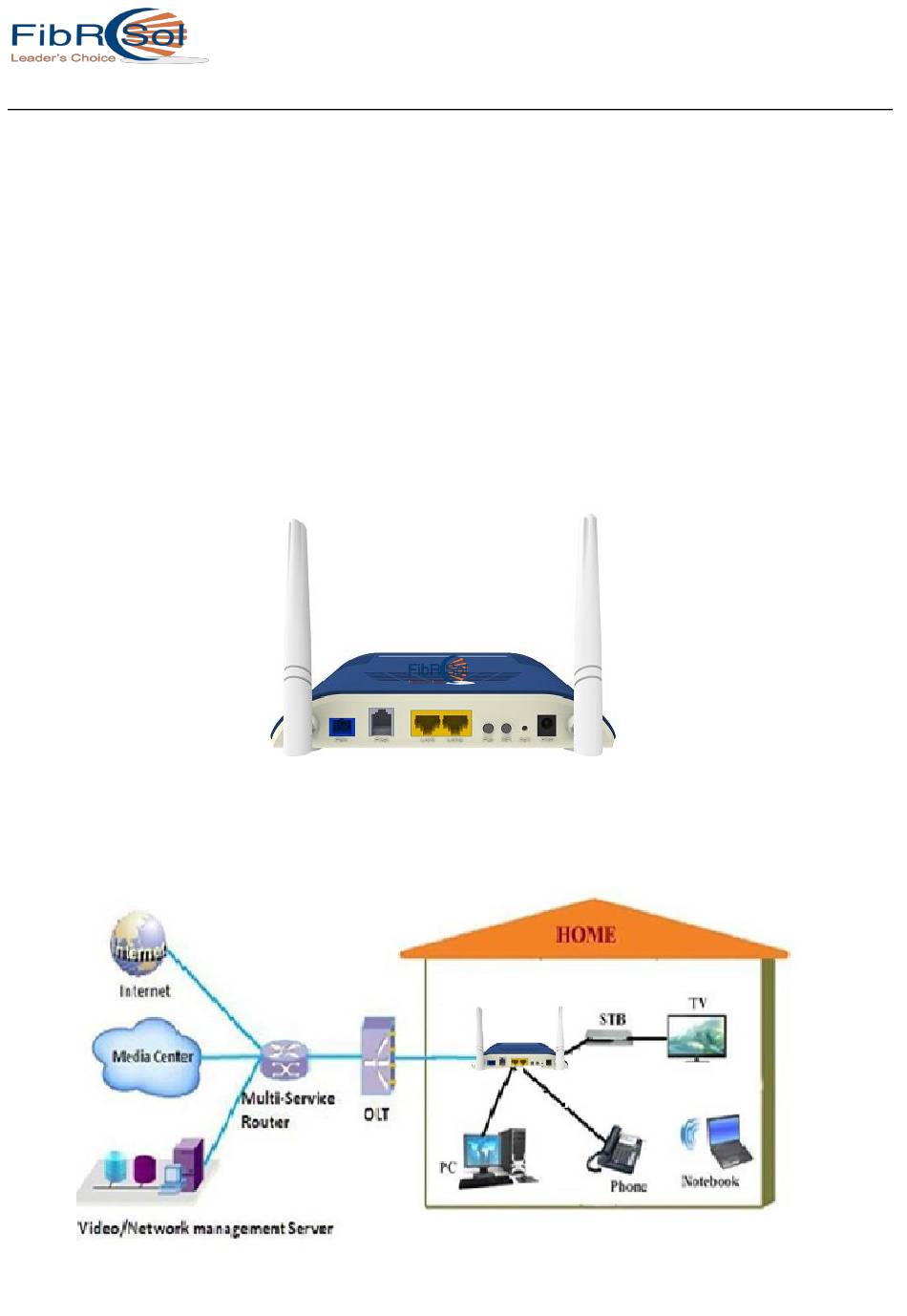

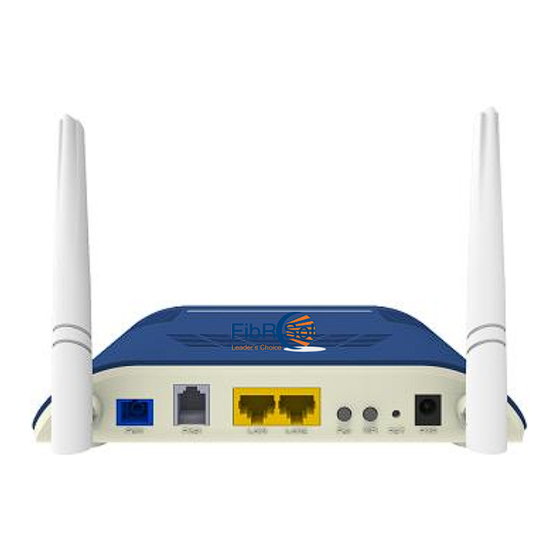

Figure 1 2LAN+1POTS+WiFi Dual Mode HGU
1.2Application Chart
Figure 2 Application Chart
