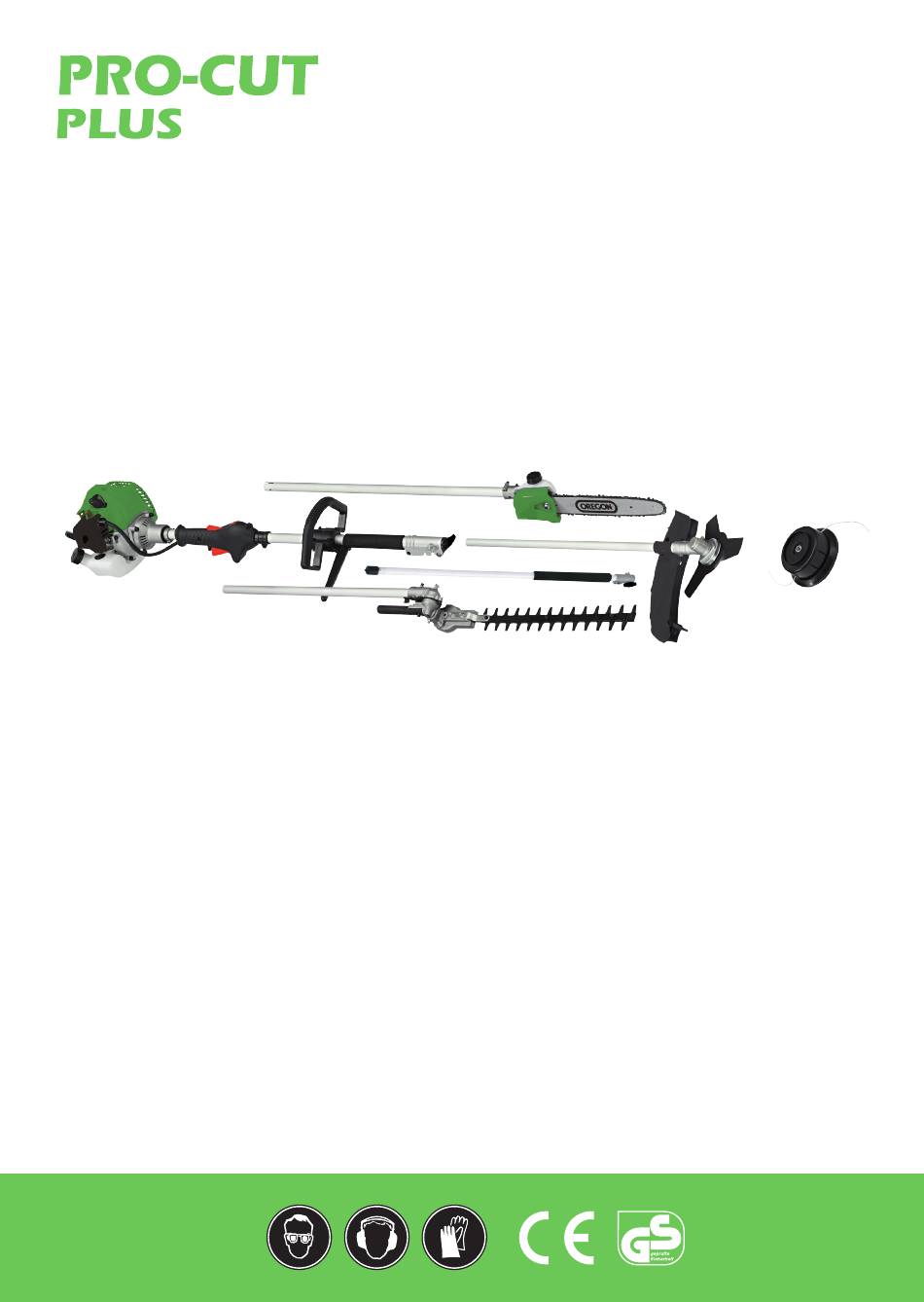

INSTRUCTION MANUAL

4 in 1 MULTI TOOL
WARNING! Read all safety warnings and all instructions and retain manual for future reference.
Failure to follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
Intended Use: This product is only used for cutting grass, bush, arborescent shrub and clumps.
Any other use of this product not mentioned in this manual could involve danger to your personal safety.
Model: PCP33MT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro-Cut Plus PCP33MT and is the answer not in the manual?

Questions and answers

Summary of Contents for Woodie's Pro-Cut Plus PCP33MT

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL 4 in 1 MULTI TOOL Model: PCP33MT WARNING! Read all safety warnings and all instructions and retain manual for future reference. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Intended Use: This product is only used for cutting grass, bush, arborescent shrub and clumps. Any other use of this product not mentioned in this manual could involve danger to your personal safety.

  • Page 2: Description Of Symbols

    INTRODUCTION Thank you for purchasing this Pro-Cut Plus Multi Function Tool. This manual contains safety information to make you aware of the hazards and risks associated with the machine and how to avoid them. This machine is intended for trimming and brushcutting and is not intended for any other purpose. It is important that you read and understand these instructions thoroughly before attempting to start or operate this equipment.

  • Page 3: Safety Instructions

    Gasoline is very flammable. Avoid smoking or bringing any flames or sparks near fuel. Beware of thrown objects hit by cutting attachments. Never use without properly mounted blade guard. Beware of foot injury by cutting attachment Wear head protection, hearing protection and eye protection when using the device. Wear robust footwear when using the device.
  • Page 4 This product has been designed for cutting grass, hedges and tree pruning and it should never be used for any other purpose. Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator. Never mow while people, especially children, or pets are nearby.
  • Page 5 For rotary mowers, ensure that only original replacement parts are used. - Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark; - Allow the engine to cool before storing in any enclosure; - To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease;...

  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS Type 70909-10/4(MFT330) Engine model SK1E36F-2E Engine displacement 32.6CC Rated motor power 0.9KW Volumes of fuel tank 900ML Nylon Cutting width 430MM Line cutter Φ2.4MM 3-teeth blade dia. 255MM Pole saw blade cutting length 254MM Hedge trimmer cutting length 400MM Engine Maximum speed 9800/min (Brush cutter)
  • Page 7 Warning! Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause poor performance, possible injury and may void your warranty. Never use the machine without the guard assembled! 3. Assemble the cutting head. 3.1 Release the nut. Line up the two holes of flange and shield, use one hex key to hold the flange as below and turn the socket wrench clockwise, the nut will be released.
  • Page 8 3.5 Release blade. Use screw driver to hold flange and release nut, the blade can be took off. Warning! Please make sure the cutting head has been assembled correctly before use! Note: The packaging material is made of recycle materials. Dispose of packaging materials in accordance with regulations.
  • Page 9 4. Filling with fuel Danger of injury! Fuel is explosive! - Turn off and cool the motor down before filling the tank with fuel. DANGER! - You must observe all safety instructions relating to handing fuel. Risk of device damage! The device is supplied without motor or gearbox oil.
  • Page 10 - Screw the tank cap on firmly by hand. Start on the unit Do not start the unit until it has been completely assembled. Before switching on the unit, always check the oil Check before use! Danger of injury! Do not operate the device unless you did not find any faults. If a part has became defective, make sure to replace it before you use the device again.
  • Page 11 4. Pull the recoil starter handle 3-5times to start the engine, as following picture. The throttle trigger should be held on when starting. 5. Adjust the choke lever to the position. 6. Pull the rope until engine starts. The throttle trigger should be held on when starting. 7.
  • Page 12 12. If any problem occurs, press the engine switch, the machine will stop running. If you need to stop the cutting head working, release the throttle lever. 13. If any problem occurs, pull the pin of safety belt, then release the brush cutter quickly. 14.
  • Page 13 Prior to Assembly Using Figure 3 as a guide, familiarize IMPORTANT yourself with the pole pruner and its various components. Understanding your machine helps The terms “left-hand”, and “LH’ ensure top performance, longer service ‘right”, ”right-hand”, and ”RH’, ”front” life, and safer operation. And ”rear”...
  • Page 14 NOTE For longer chain life, let new or replacement chain loops soak in oil overnight before installation 1. Remove the sprocket cover by removing the guide bar screws. CAUTION！ Failure to align the guide bar and chain tensioning pin can cause serious damage to the sprocket cover, guide bar, chain tensioning pin and cutting head assembly.
  • Page 15 10. Tighten the sprocket cover nut securely while lifting the tip of the guide bar. The service life of the chain and guide bar is affected by the chain and guide lubricant. Using superior lubricant such as genuine Bar and Chain Oil will help ensure a long service life. For cold weather operation, mix bar and chain oil with an equal part of kerosene.
  • Page 16 HEDGE TRIMMER WARNING! ■Never transport the articulated hedge trimmer of set it down with the engine running. An engine that’s running could be accidently accelerated causing the blades to oscillate. ■Make sure the blade cover is in place when transporting and storing the articulated hedge trimmer. ■When carrying an articulating hedge attachment must be in the transport position.
  • Page 17 Put the hedge trimmer on a flat, level surface with the engine resting on the fuel tank guard. Make sure the hedge trimmer blade cover is in place. 1. With your right hand, grasp the handle, located immediately aft of the hand guard. With your left hand, grip the adjustment lever on the cutter assembly.
  • Page 18 Safety Operation This machine is designed especially for trimming hedge. Never use this machine for any other purpose. Never try to cut stones, metals, plastics or any other hard objects. Using it for other purposes than trimming hedge may damage the machine or cause serious injury. Preparations ●Wear suitable protective clothing and equipment-see section “Safety Precautions”.
  • Page 19 Note: Do not start the motor in tall grass When the engine has been switched off, the cutter continues running for several seconds therefore do not get close to the cutting head of brush cutter until the cutter has come to a standstill! Maintenance and care Before performing any maintenance or cleaning work, Always turn off the engine.
  • Page 20 5) After the spark plug is seated, tighten with spanner to compress the washer. Clean the air filter Unclip the air filter cover and remove the sponge filter element. To avoid objects falling into the air tank, replace the air filter cover. Wash the filter element in warm soap water, rinse and allow drying naturally.
  • Page 21 If faults can not be remedied, contact the Helpline on ++353 1 823 9200 GUARANTEE This product is selected for DOMESTIC USE ONLY and not for business use This product is guaranteed against manufacturing defects for a period of 12months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorised modifications or alterations, or has been the subject of commercial use.
  • Page 24 Pro-Cut Plus, Woodies Support Office, Whitestown Way, Tallaght Bypass, Dublin 24 TEL: 01 427 5300 EC Declaration of Conformity We herewith declare, Pro-Cut Plus, Woodies, Whitestown, Tallaght, Dublin 24, Ireland, that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
