Tag Reader (TG-15 F1)

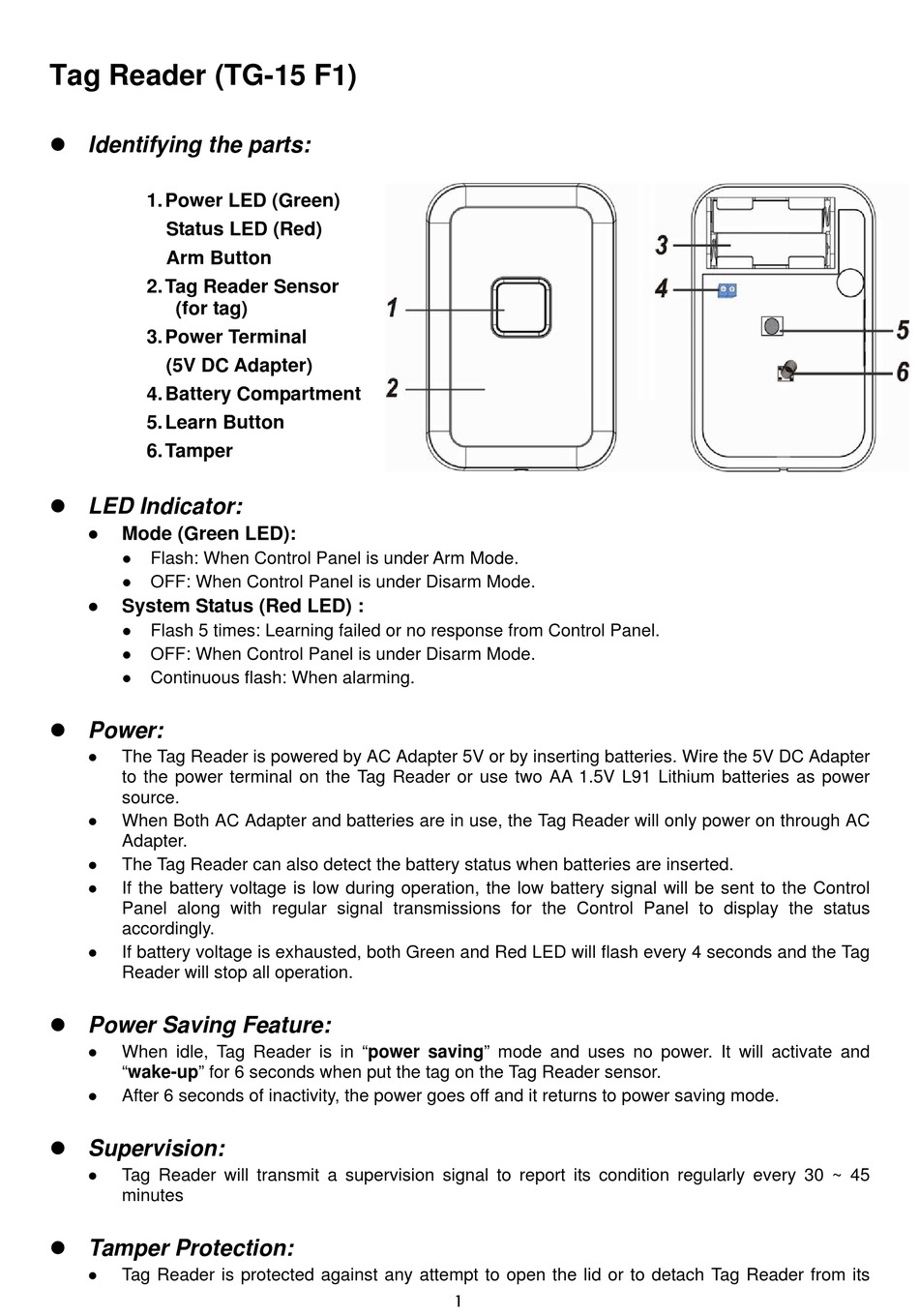

 Identifying the parts:
1. Power LED (Green)
Status LED (Red)
Arm Button
2. Tag Reader Sensor
(for tag)
3. Power Terminal
(5V DC Adapter)
4. Battery Compartment
5. Learn Button
6. Tamper
 LED Indicator:
Mode (Green LED):
Flash: When Control Panel is under Arm Mode.
OFF: When Control Panel is under Disarm Mode.
System Status (Red LED) :
Flash 5 times: Learning failed or no response from Control Panel.
OFF: When Control Panel is under Disarm Mode.
Continuous flash: When alarming.
 Power:
The Tag Reader is powered by AC Adapter 5V or by inserting batteries. Wire the 5V DC Adapter
to the power terminal on the Tag Reader or use two AA 1.5V L91 Lithium batteries as power
source.
When Both AC Adapter and batteries are in use, the Tag Reader will only power on through AC
Adapter.
The Tag Reader can also detect the battery status when batteries are inserted.
If the battery voltage is low during operation, the low battery signal will be sent to the Control
Panel along with regular signal transmissions for the Control Panel to display the status
accordingly.
If battery voltage is exhausted, both Green and Red LED will flash every 4 seconds and the Tag
Reader will stop all operation.
 Power Saving Feature:
When idle, Tag Reader is in "power saving" mode and uses no power. It will activate and
"wake-up" for 6 seconds when put the tag on the Tag Reader sensor.
After 6 seconds of inactivity, the power goes off and it returns to power saving mode.
 Supervision:
Tag Reader will transmit a supervision signal to report its condition regularly every 30 ~ 45
minutes
 Tamper Protection:
Tag Reader is protected against any attempt to open the lid or to detach Tag Reader from its
1
