IDENTEC SOLUTIONS i-Q350L M Manual

Microtag
Hide thumbs
Table of Contents

Advertisement

Quick Links

i-Q350L M, Microtag Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-Q350L M and is the answer not in the manual?

Questions and answers

Summary of Contents for IDENTEC SOLUTIONS i-Q350L M

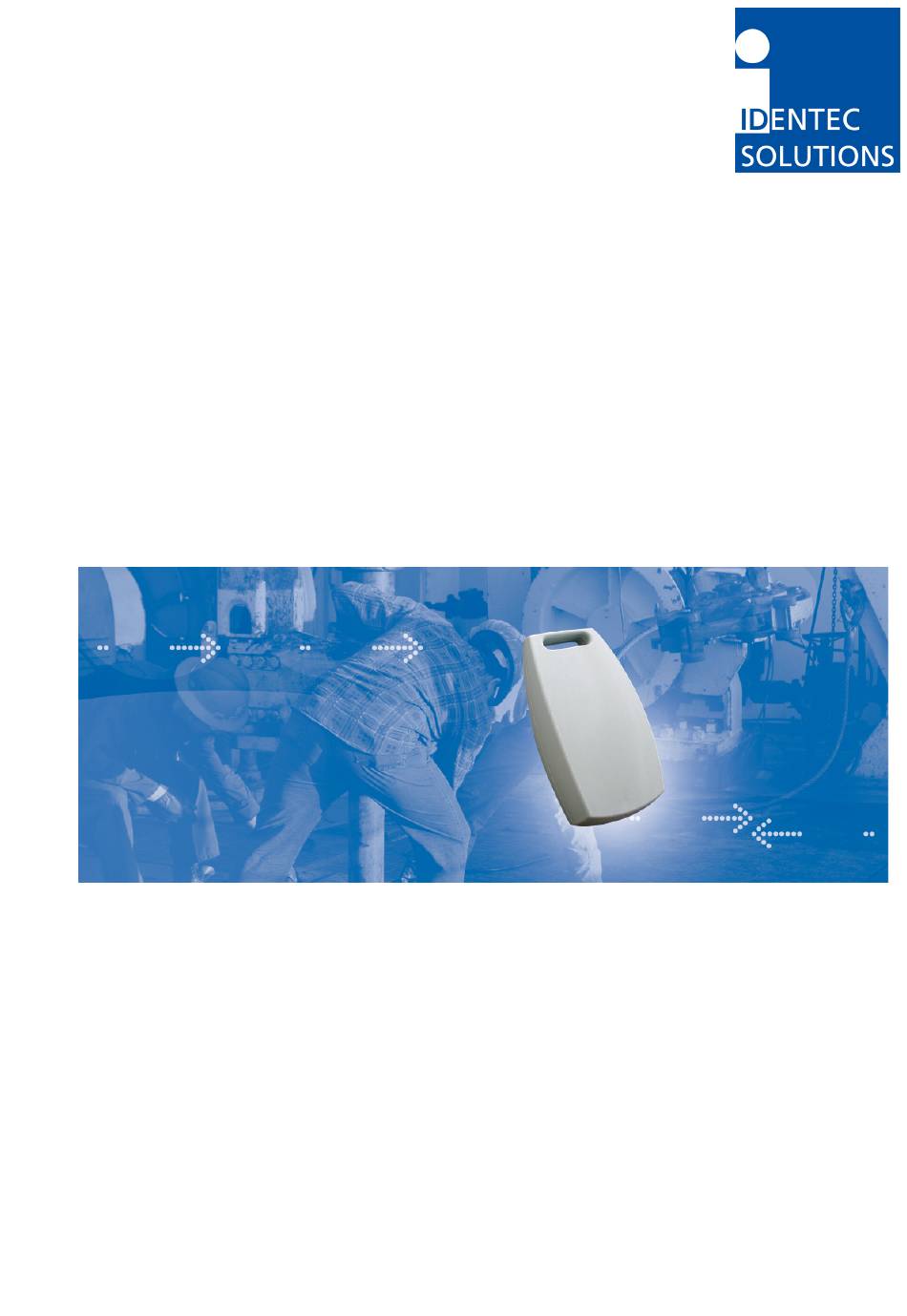

  • Page 1 M, Microtag Manual...
  • Page 2 IDENTEC SOLUTIONS shall not in any circumstances be liable to any person for any special, incidental, indirect or consequential damages, including without limitation, damages resulting from use of or reliance on information presented herein, or loss of profits or revenues or costs of replacement goods, even if informed in advance of the possibility of such damages.
  • Page 3 The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC SOLUTIONS, or any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 4: Table Of Contents

    Microtag Manual Contents INTRODUCTION......................5 ........................5 REPARATIONS ....................5 ECOMMENDED ROCEDURE .....................5 COPE OF THIS OCUMENT ........................5 ESPONSIBILITY .......................5 SSOCIATED OCUMENTS —V .................5 COPE OF ELIVERY ISUAL NSPECTION SAFETY PRECAUTIONS ....................6 INITIAL OPERATION ....................8 ....................8 ONFIGURATION OF ........................8 ANDLING MAINTENANCE......................9 ..........................9 ENERAL ....................9 RECAUTIONARY AINTENANCE...

  • Page 5: Introduction

    Check delivery whether it is complete and for any damages. If the delivery is not complete or damaged immediately inform the carrier. The dispatch and service organization of IDENTEC SOLUTIONS should also be informed to facilitate the repair or exchange of the system.

  • Page 6: Safety Precautions

    Microtag Manual Safety Precautions Important Safety Note The devices described in this manual is for exclusive operation by trained employees. Only qualified personnel that know the potential dangers involved should perform the installation, settings, maintenance and repair of the units used. Operational Safety The correct and safe use of these systems assumes that operating and service personnel follow the safety measures described in the manual alongside the generally acceptable safety procedures.
  • Page 7 Spare Parts We recommend that only original products, spare and replacement parts authorized by IDENTEC SOLUTIONS be used for installation, service and repair. Otherwise IDENTEC SOLUTIONS does not accept any responsibility for materials used, work carried out or possible consequences.

  • Page 8: Initial Operation

    Initial Operation Configuration of The Tag Important Note Do not open the housing! Configuration is done using the built-in air interface of the i-Q350L M. Configuration The i-Q350L M is configured according to the specific application by the custom-specific host software.

  • Page 9: Maintenance

    M Maintenance General In principle, the ILR system is maintenance-free. When correctly installed it operates for many years without any problems. Precautionary Maintenance Regular checking to the system is recommended. Make sure that the housing of the tag has no damage. If there are any damages as holes or cracks, the tags should be replaced and returned to IDENTEC SOLUTIONS immediately.

  • Page 10: Technical Data

    Microtag Manual Technical Data Operating Data Operating frequency ILR-RFID 868 MHz (EU) or 920 MHz (NA), further frequencies on request Transmission power 0.75mW (EU / NA) Compatibility depending on Broadcast Telegram Mode: - ILR B2 (ASK) compatible with i-PORT MB, i-CARD CFB - ILR 350 (FSK) compatible with i-PORT M 350, i-CARD CF 350 Standards/Certification FCC Part 15 (US), ETSI EN 300 220 (EU)
  • Page 11 M Mechanical Data Dimensions 56 mm × 30 mm × 14 mm Casing Plastics Mass 40 g Protection class IP 65 Certifications CE (EN 300 220-1, -3; ETSI EN 301 489-1, -3), FCC Part 15 (US), Industry Canada Page 11 of 11...
