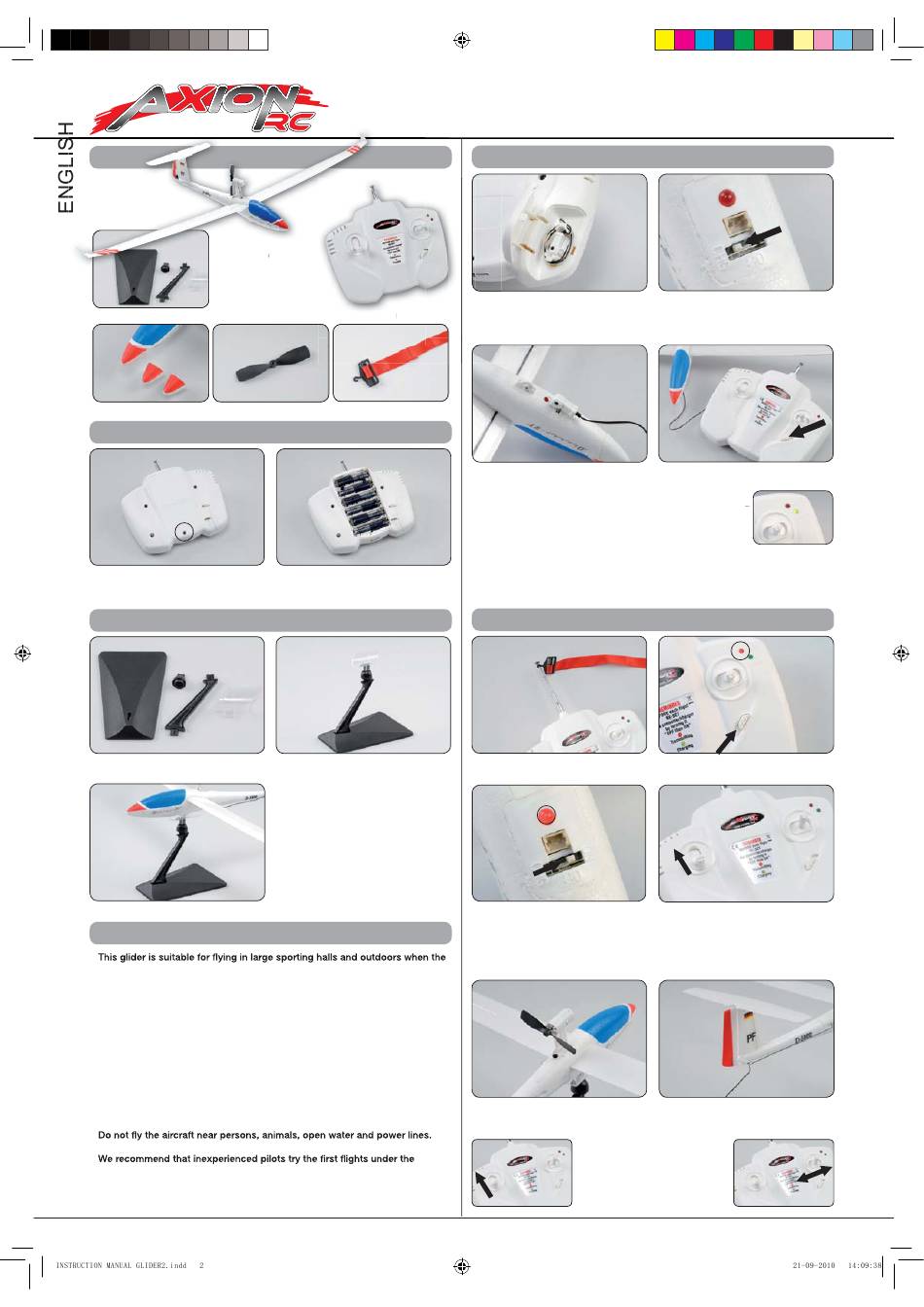

Axion MICRO GLIDER SERIES Instruction Manual

KIT CONTENT KIT CONTENT
"Ready To Fly" "Ready To Fly" T T
Glider Glider
Desktop display stand Desktop display stand
Spare nose cone Spare propeller
INSERT BATTERIES
Unscrew the philips screw and remove
the battery lid
ASSEMBLY OF THE DESKTOP DISPLAY
3
4
1 2
Desktop display parts overview
Finished desktop display
IMPORTANT NOTICE!
•
wind conditions are calm
• This glider is suitable from 14 years of age. Flying the glider requires parental
supervision.
• Keep your hands, face, hair and loose clothes away from the propeller.
• Turn off the remote control and glider when they are not being used.
• Remove batteries from the controller when not in use.
• Always watch the glider to make sure you do not lose control of it.
• We recommend using new alkaline-manganese batteries or rechargeable
batteries for the controller.
• Insert new batteries in the controller as soon as any function becomes
diminished.
• Keep these instructions for future reference.
• This glider should only be used in accordance with these operating
instructions.
•
• This glider is not suitable for people with physical or mental disabilities.
•
supervision of an experienced pilot.
Page 2
INSTRUCTION MANUAL MICRO GLIDER SERIES
ASK-21 • DISCUS-2T • VENTUS-2CXT • ASH-31MI ASK
2-Channel Transmit 2-Channel Transmitter T T tter
Wind direction flag
Insert six (6) "AA" size alkaline
batteries according to the polarity
indicated in the battery compartment.
4
3
2
1
Assemble the desktop display as
shown in picture.
CHARGING THE GLIDER
Open the lid of the battery charge lead Open
compa compartment.
Connect the charge lead to the
connector. Please do not force the
connector in place.
GETTING STARTED
Connect the wind direction flag to the
antenna.
Slide the glider micro switch to the ON
position. The RED LED will illuminate.
Push the throttle stick gently forward
and the propeller will start to spin. The
motor speed is 12 steps controlled.
Slide the glider micro switch towards
the CHG position. This micro switch is
positioned on the bottom of the glider
fuselage.
Slide the switch on the transmitter to
the CHG position. The GREEN LED
will illuminate and
the charging pro
cess is started.
The battery is fully
charged when
the GREEN LED is no longer
illuminated. After charging, slide
the switch to the OFF position.
Charging time approx 15 to 45 min.
Slide the switch to the ON position.
The RED LED will start to BLINK.
Before the transmitter is transmitting a
signal, you need to move the throttle
stick forward and release it again.
The RED LED will now illuminate con -
stantly indicating the transmitter is
transmitting.
Move the rudder stick to the left and
right and control the movement of the
rudder panel.
